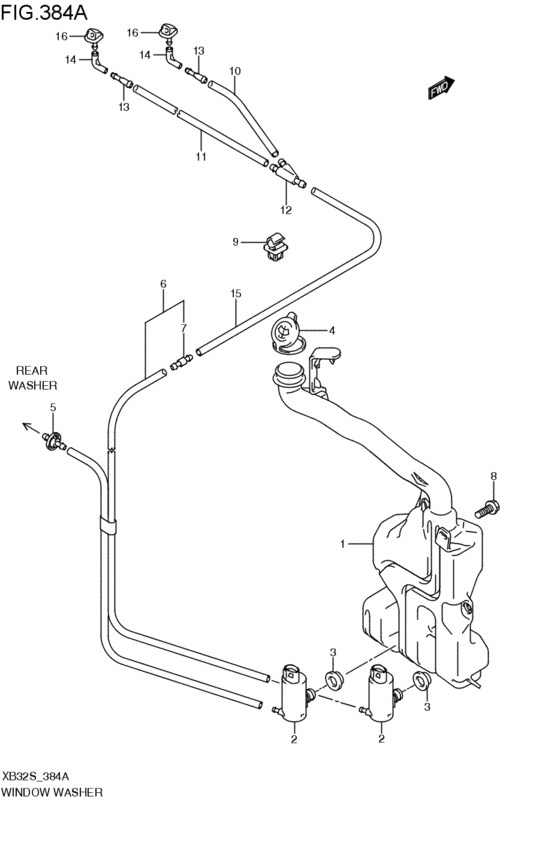

ウインドウオッシャ (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38450-51K00-000 TANK ASSY,WASHER2008-06-01~ |
38450-51K00-000 |
US $86.64 |
||
|
2
|
2
38410-79J10-000 PUMP ASSY,WASHER2008-06-01~ |
38410-79J10-000 |
US $56.67 |
||
|
3
|
3
38453-79J10-000
GROMMET,WASHER TANK
2008-06-01~ |
38453-79J10-000 |
— | ||
|
4
|
4
38452-79J10-000 CAP,WASHER TANK2008-06-01~ |
38452-79J10-000 |
from US $7.04 |
||
|
5
|
5
38496-79J00-000
JOINT,WASHER HOSE
2008-06-01~ |
38496-79J00-000 |
— | ||
|
6
|
6
38491-51K00-000 HOSE ASSY,FR&RR2008-06-01~ |
38491-51K00-000 |
US $68.08 |
||
|
7
|
7
38496-51K00-000 I JOINT2008-06-01~ |
38496-51K00-000 |
US $4.78 |
||
|
8
|
8
02162-0616A-000 SCREW2008-06-01~ |
02162-0616A-000 |
from US $0.95 |
||
| replacement | |||||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust 2008-06-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
9
|
9
09403-07330-000 CLAMP2008-06-01~ |
09403-07330-000 |
US $14.40 |
||
|
10
|
10
38491-61A10-000 HOSE,WASHER L:2100L:2100>115; 2008-06-01~ |
38491-61A10-000 |
US $5.44 |
||
|
11
|
11
38491-61A10-000 HOSE,WASHER L:2100L:2100>655; 2008-06-01~ |
38491-61A10-000 |
US $5.44 |
||
|
12
|
12
38496-83E10-000 CONNECTOR,3 WAY2008-06-01~ |
38496-83E10-000 |
US $5.81 |
||
|
13
|
13
38496-56B00-000 CONNECTOR2008-06-01~ |
38496-56B00-000 |
from US $1.60 |
||
|
14
|
14
38496-62JB0-000
Joint, elbow
2008-06-01~ |
38496-62JB0-000 |
— | ||
| replacement | |||||
|
14
|
14
38496-68L50-000 JOINT,ELBOW2008-06-01~ |
38496-68L50-000 |
US $4.49 |
||
|
15
|
15
38459-50J00-000 HOSE,WASHER L:810L:810>225; 2008-06-01~ |
38459-50J00-000 |
US $14.40 |
||
|
16
|
16
38480-51K00-000 NOZZLE,WASHER2008-06-01~ |
38480-51K00-000 |
US $10.45 |
||
