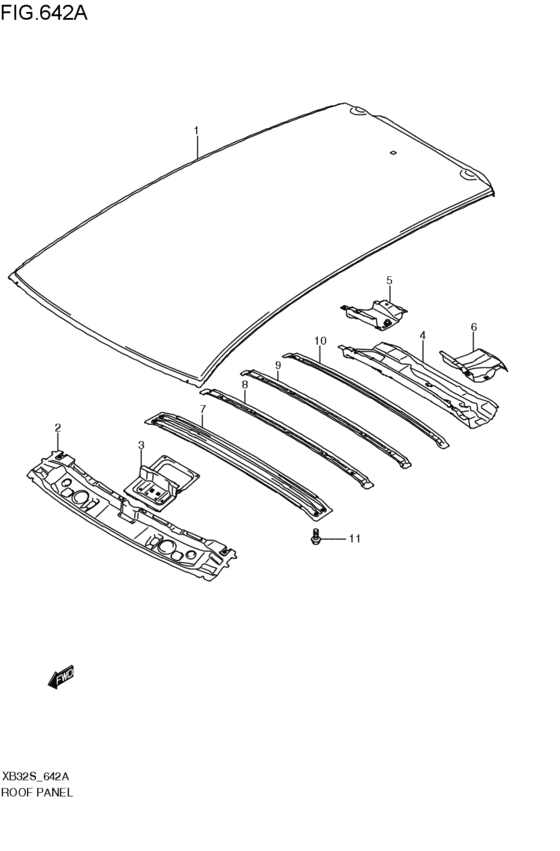

ル - フパネル (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65111-51K10-000
パネル,ルーフ
2008-06-01~ |
65111-51K10-000 |
— | ||
|
2
|
2
65121-51K00-000 RAIL,ROOF FR INR2008-06-01~ |
65121-51K00-000 |
US $100.83 |
||
|
3
|
3
65140-51K00-000 BRACKET,ROOM MIRROR2008-06-01~ |
65140-51K00-000 |
US $26.86 |
||
|
4
|
4
65131-51K00-000
MEMBER,ROOF BACK INR
2008-06-01~ |
65131-51K00-000 |
— | ||
|
5
|
5
65132-51K00-000
REINFORCEMENT,BACK DOOR HNG,R
2008-06-01~ |
65132-51K00-000 |
— | ||
|
6
|
6
65133-51K00-000
REINFORCEMENT,BACK DOOR HNG,L
2008-06-01~ |
65133-51K00-000 |
— | ||
|
7
|
7
65151-51K00-000
MEMBER,ROOF PANEL CTR NO.1
2008-06-01~ |
65151-51K00-000 |
— | ||
|
8
|
8
65161-51K00-000
MEMBER,ROOF PANEL CTR NO.2
2008-06-01~ |
65161-51K00-000 |
— | ||
|
9
|
9
65162-51K00-000
MEMBER,ROOF PANEL CTR NO.3
2008-06-01~ |
65162-51K00-000 |
— | ||
|
10
|
10
65163-51K00-000 MEMBER,ROOF PANEL CTR NO.42008-06-01~ |
65163-51K00-000 |
US $67.71 |
||
|
11
|
11
01550-0612A-000 BOLT2008-06-01~ |
01550-0612A-000 |
from US $0.76 |
