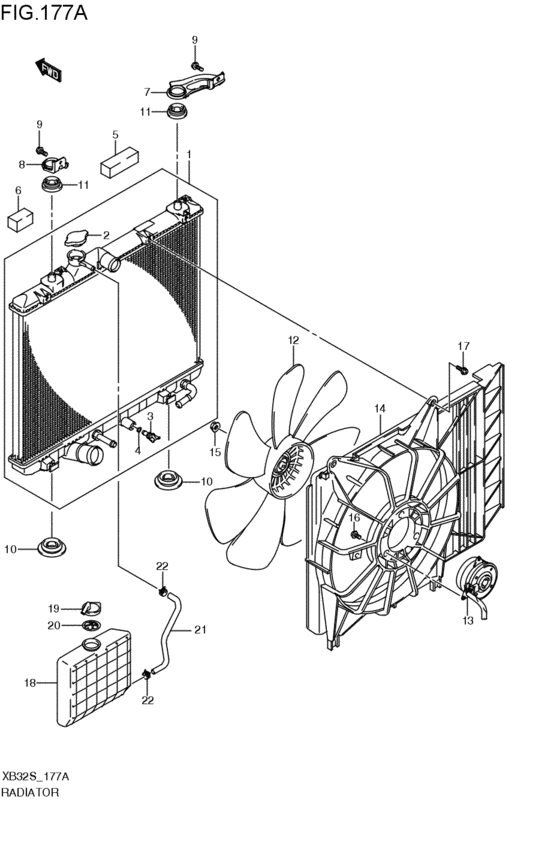

radiator (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-73KC0-000
ラジエータアッシ
2008-06-01~ |
17700-73KC0-000 |
— | ||
|
2
|
2
17920-75F00-000 CAP,RADIATOR2008-06-01~ |
17920-75F00-000 |
from US $13.83 |
||
|
3
|
3
17751-61A00-000 PLUG,DRAIN2008-06-01~ |
17751-61A00-000 |
US $4.32 |
||
|
4
|
4
17759-72010-000 O-RING2008-06-01~ |
17759-72010-000 |
US $1.52 |
||
|
5
|
5
17791-51K00-000 SEAL,RADIATOR NO.12008-06-01~ |
17791-51K00-000 |
US $5.85 |
||
|
6
|
6
17792-63J00-000 SEAL,RADIATOR NO.22008-06-01~ |
17792-63J00-000 |
US $1.73 |
||
|
7
|
7
17861-73K00-000 BRACKET,RDTR SUPPORT UPPER,R2008-06-01~ |
17861-73K00-000 |
US $9.16 |
||
|
8
|
8
17862-73K00-000 BRACKET,RDTR SUPPORT UPPER,L2008-06-01~ |
17862-73K00-000 |
US $7.07 |
||
|
9
|
9
02162-0612A-000 SCREWBolt, bracket 2008-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
10
|
10
17878-75F00-000 MOUNT,RDTR SUPPORT LWR2008-06-01~ |
17878-75F00-000 |
from US $2.88 |
||
|
11
|
11
17879-83E00-000 MOUNT,RDTR SUPPORT UPR2008-06-01~ |
17879-83E00-000 |
from US $4.41 |
||
|
12
|
12
17111-62J00-000 FAN,COOLING2008-06-01~ |
17111-62J00-000 |
US $77.28 |
||
|
13
|
13
17120-62JB0-000 MOTOR ASSY,FAN2008-06-01~ |
17120-62JB0-000 |
US $397.44 |
||
|
14
|
14
17760-73KB0-000 SHROUD ASSY2008-06-01~ |
17760-73KB0-000 |
US $241.04 |
||
|
15
|
15
08316-2005A-000 NUT2008-06-01~ |
08316-2005A-000 |
from US $0.80 |
||
|
16
|
16
02142-0510A-000 SCREWBolt, oil pump rotor plate 2008-06-01~ |
02142-0510A-000 |
from US $0.77 |
||
| replacement | |||||
|
16
|
16
02142-0510B-000 SCREWBolt 2008-06-01~ |
02142-0510B-000 |
from US $0.76 |
||
|
17
|
17
02162-0616A-000 SCREW2008-06-01~ |
02162-0616A-000 |
from US $0.95 |
||
| replacement | |||||
|
17
|
17
02162-0616B-000 SCREWBolt, adjust 2008-06-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
18
|
18
17931-62J00-000
TANK,WATER RESERVE
2008-06-01~ |
17931-62J00-000 |
— | ||
|
19
|
19
17932-63J00-000 CAP,WATER RESERVE TANK2008-06-01~ |
17932-63J00-000 |
from US $2.89 |
||
|
20
|
20
17933-62J00-000 SEAL,WATER RSVR TANK2008-06-01~ |
17933-62J00-000 |
from US $7.58 |
||
|
21
|
21
17939-51KA0-000
Hose, radiator to rsv tank
2008-06-01~ |
17939-51KA0-000 |
— | ||
| replacement | |||||
|
21
|
21
17939-51KA1-000 HOSE,RDTR TO RSV TANK2008-06-01~ |
17939-51KA1-000 |
US $18.11 |
||
|
22
|
22
09401-11415-000 CLIP2008-06-01~ |
09401-11415-000 |
from US $1.06 |
||
