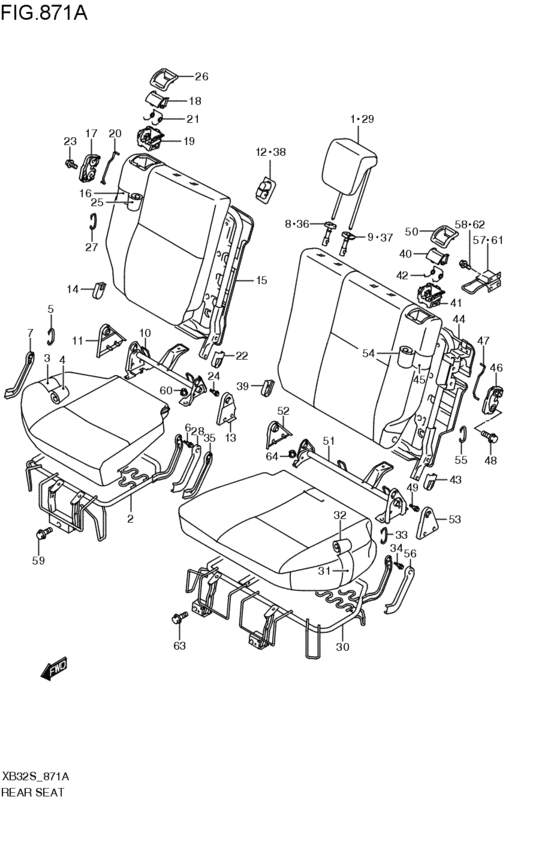

rear seat (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86401-62J20-V2M HEADRESTRAINT ASSY2008-06-01~ |
86401-62J20-V2M |
US $138.74 |
||
|
2
|
2
87103-51K00-000
FRAME ASSY,RR CUSH,R
2008-06-01~ |
87103-51K00-000 |
— | ||
|
3
|
3
87160-51K00-000
Pad, rr cushion rh
2008-06-01~ |
87160-51K00-000 |
— | ||
|
4
|
4
87180-51K00-JBD
トリム,リヤクッション,ライト(ブルー)
ES; 2009-08-01~ |
87180-51K00-JBD |
— | ||
|
5
|
5
09387-19001-000 RING2008-06-01~ |
09387-19001-000 |
US $1.76 |
||
|
6
|
6
87133-51K00-000 BOLT,CUSHION STAY2008-06-01~ |
87133-51K00-000 |
US $3.31 |
||
|
7
|
7
87171-51K00-S1S
COVER,STAY,R
2008-06-01~ |
87171-51K00-S1S |
— | ||
| replacement | |||||
|
7
|
7
87171-51K10-S1S
COVER,STAY,R
2008-06-01~ |
87171-51K10-S1S |
— | ||
|
8
|
8
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
2008-06-01~ |
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
8
|
8
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
2008-06-01~ |
85341-63J11-P4Z |
— | ||
|
8
|
8
85341-63J12-P4Z Guide,headrestraint2008-06-01~ |
85341-63J12-P4Z |
US $7.36 |
||
|
9
|
9
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
2008-06-01~ |
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
9
|
9
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
2008-06-01~ |
85840-63J11-P4Z |
— | ||
|
9
|
9
85840-63J12-P4Z Guide Comp,headrestraint2008-06-01~ |
85840-63J12-P4Z |
US $9.12 |
||
|
10
|
10
87210-51K00-000
BRACKET,HINGE LOWER,R
2008-06-01~ |
87210-51K00-000 |
— | ||
|
11
|
11
87222-51K00-S1S
COVER,LOWER OUTSIDE,R
2008-06-01~ |
87222-51K00-S1S |
— | ||
|
12
|
12
87225-53JA0-S1S COVER,TETHER ANCHORGray 2008-06-01~ |
87225-53JA0-S1S |
US $7.18 |
||
|
13
|
13
87242-51K00-S1S
COVER,LOWER INSIDE,R
2008-06-01~ |
87242-51K00-S1S |
— | ||
|
14
|
14
87221-51K00-S1S
COVER,HINGE UPPER,R
2008-06-01~ |
87221-51K00-S1S |
— | ||
|
15
|
15
87310-51K00-000
FRAME,RR BACK,R
2008-06-01~ |
87310-51K00-000 |
— | ||
|
16
|
16
87360-51K00-000
PAD,RR BACK,R
2008-06-01~ |
87360-51K00-000 |
— | ||
|
17
|
17
87480-62J01-000
Lock assy,rr back,r
2008-06-01~ |
87480-62J01-000 |
— | ||
| replacement | |||||
|
17
|
17
87480-62J02-000 LOCK ASSY,RR BACK,R2008-06-01~ |
87480-62J02-000 |
US $76.54 |
||
|
18
|
18
87483-80J00-S1S
Knob, lock
2008-06-01~ |
87483-80J00-S1S |
— | ||
|
19
|
19
87484-79J01-000
Case, lock
2008-06-01~ |
87484-79J01-000 |
— | ||
|
20
|
20
87485-51K00-000
WIRE,RR BACK LOCK,R
2008-06-01~ |
87485-51K00-000 |
— | ||
|
21
|
21
87486-79J00-000 SPRING,BACK KNOB2008-06-01~ |
87486-79J00-000 |
US $9.68 |
||
|
22
|
22
87721-51K00-S1S
COVER,HINGE UPPER,L
2008-06-01~ |
87721-51K00-S1S |
— | ||
|
23
|
23
01550-0835A-000 BOLT2008-06-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
24
|
24
87333-51K00-000 BOLT,RR HINGE2008-06-01~ |
87333-51K00-000 |
US $3.75 |
||
|
25
|
25
87380-51K21-JBD
トリム,リヤバック,ライト(ブルー)
ES; 2009-08-01~ |
87380-51K21-JBD |
— | ||
|
26
|
26
87482-80J00-S1S BEZEL,RR BACK LOCK2008-06-01~ |
87482-80J00-S1S |
US $3.90 |
||
|
27
|
27
09387-19001-000 RING2008-06-01~ |
09387-19001-000 |
US $1.76 |
||
|
28
|
28
87671-51K00-S1S
COVER,STAY,L
2008-06-01~ |
87671-51K00-S1S |
— | ||
| replacement | |||||
|
28
|
28
87671-51K10-S1S
COVER,STAY,L
2008-06-01~ |
87671-51K10-S1S |
— | ||
|
29
|
29
86401-62J20-V2M HEADRESTRAINT ASSY2008-06-01~ |
86401-62J20-V2M |
US $138.74 |
||
|
30
|
30
87603-51K00-000 FRAME ASSY,RR CUSH,L2008-06-01~ |
87603-51K00-000 |
US $124.02 |
||
|
31
|
31
87660-51K00-000
PAD,REAR CUSHON,L
2008-06-01~ |
87660-51K00-000 |
— | ||
|
32
|
32
87680-51K00-JBD
トリム,リヤクッション,レフト(ブルー)
ES; 2009-08-01~ |
87680-51K00-JBD |
— | ||
|
33
|
33
09387-19001-000 RING2008-06-01~ |
09387-19001-000 |
US $1.76 |
||
|
34
|
34
87133-51K00-000 BOLT,CUSHION STAY2008-06-01~ |
87133-51K00-000 |
US $3.31 |
||
|
35
|
35
87171-51K00-S1S
COVER,STAY,R
2008-06-01~ |
87171-51K00-S1S |
— | ||
| replacement | |||||
|
35
|
35
87171-51K10-S1S
COVER,STAY,R
2008-06-01~ |
87171-51K10-S1S |
— | ||
|
36
|
36
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
2008-06-01~ |
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
36
|
36
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
2008-06-01~ |
85341-63J11-P4Z |
— | ||
|
36
|
36
85341-63J12-P4Z Guide,headrestraint2008-06-01~ |
85341-63J12-P4Z |
US $7.36 |
||
|
37
|
37
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
2008-06-01~ |
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
37
|
37
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
2008-06-01~ |
85840-63J11-P4Z |
— | ||
|
37
|
37
85840-63J12-P4Z Guide Comp,headrestraint2008-06-01~ |
85840-63J12-P4Z |
US $9.12 |
||
|
38
|
38
87225-53JA0-S1S COVER,TETHER ANCHORGray 2008-06-01~ |
87225-53JA0-S1S |
US $7.18 |
||
|
39
|
39
87221-51K00-S1S
COVER,HINGE UPPER,R
2008-06-01~ |
87221-51K00-S1S |
— | ||
|
40
|
40
87483-80J00-S1S
Knob, lock
2008-06-01~ |
87483-80J00-S1S |
— | ||
|
41
|
41
87484-79J01-000
Case, lock
2008-06-01~ |
87484-79J01-000 |
— | ||
|
42
|
42
87486-79J00-000 SPRING,BACK KNOB2008-06-01~ |
87486-79J00-000 |
US $9.68 |
||
|
43
|
43
87721-51K00-S1S
COVER,HINGE UPPER,L
2008-06-01~ |
87721-51K00-S1S |
— | ||
|
44
|
44
87810-51K00-000
FRAME,RR BACK,L
2008-06-01~ |
87810-51K00-000 |
— | ||
|
45
|
45
87860-51K00-000
PAD,RR BACK,L
2008-06-01~ |
87860-51K00-000 |
— | ||
|
46
|
46
87980-62J01-000
Lock assy,rr back,l
2008-06-01~ |
87980-62J01-000 |
— | ||
| replacement | |||||
|
46
|
46
87980-62J02-000 LOCK ASSY,RR BACK,L2008-06-01~ |
87980-62J02-000 |
US $76.54 |
||
|
47
|
47
87985-51K00-000
WIRE,RR BACK LOCK,L
2008-06-01~ |
87985-51K00-000 |
— | ||
|
48
|
48
01550-0835A-000 BOLT2008-06-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
49
|
49
87333-51K00-000 BOLT,RR HINGE2008-06-01~ |
87333-51K00-000 |
US $3.75 |
||
|
50
|
50
87482-80J00-S1S BEZEL,RR BACK LOCK2008-06-01~ |
87482-80J00-S1S |
US $3.90 |
||
|
51
|
51
87710-51K00-000 BRACKET,HINGE LOWER,L2008-06-01~ |
87710-51K00-000 |
US $118.86 |
||
|
52
|
52
87722-51K00-S1S
COVER,LOWER OUTSIDE,L
2008-06-01~ |
87722-51K00-S1S |
— | ||
|
53
|
53
87742-51K00-S1S
COVER,LOWER INSIDE,L
2008-06-01~ |
87742-51K00-S1S |
— | ||
|
54
|
54
87880-51K21-JBD
トリム,リヤバック,レフト(ブルー)
ES; 2009-08-01~ |
87880-51K21-JBD |
— | ||
|
55
|
55
09387-19001-000 RING2008-06-01~ |
09387-19001-000 |
US $1.76 |
||
|
56
|
56
87671-51K00-S1S
COVER,STAY,L
2008-06-01~ |
87671-51K00-S1S |
— | ||
| replacement | |||||
|
56
|
56
87671-51K10-S1S
COVER,STAY,L
2008-06-01~ |
87671-51K10-S1S |
— | ||
|
57
|
57
87870-62J00-000
STRIKER,RR BACK
2008-06-01~ |
87870-62J00-000 |
— | ||
|
58
|
58
01551-0820A-000 BOLT2008-06-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
59
|
59
01551-1025A-000 Bolt2008-06-01~ |
01551-1025A-000 |
US $1.12 |
||
|
60
|
60
08316-1010A-000 NUTNut, kick starter 2008-06-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
61
|
61
87870-62J00-000
STRIKER,RR BACK
2008-06-01~ |
87870-62J00-000 |
— | ||
|
62
|
62
01551-0820A-000 BOLT2008-06-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
63
|
63
01551-1025A-000 Bolt2008-06-01~ |
01551-1025A-000 |
US $1.12 |
||
|
64
|
64
08316-1010A-000 NUTNut, kick starter 2008-06-01~ |
08316-1010A-000 |
from US $0.76 |
||
