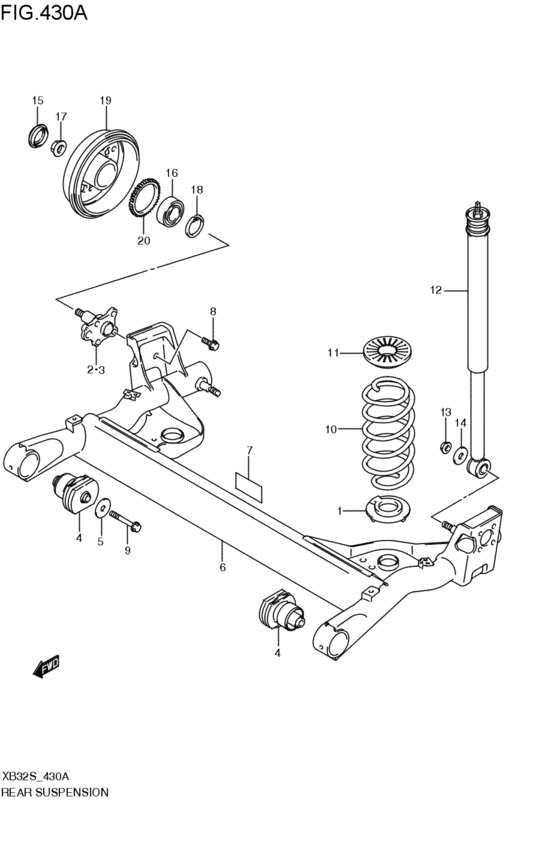

rear suspension (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41312-63J00-000 SEAT,REAR SPRING RUBBER LOWER2008-06-01~ |
41312-63J00-000 |
US $24 |
||
|
2
|
2
46111-62J00-000 SPINDLE,REAR,R2008-06-01~ |
46111-62J00-000 |
US $75.07 |
||
|
3
|
3
46151-62J00-000 SPINDLE,REAR,L2008-06-01~ |
46151-62J00-000 |
US $90.16 |
||
|
4
|
4
46221-51K10-000 BUSHING,TRAILING ARM2008-06-01~ |
46221-51K10-000 |
US $61.46 |
||
|
5
|
5
46222-63J00-000 WASHER,TRAILING ARM2008-06-01~ |
46222-63J00-000 |
US $2.40 |
||
|
6
|
6
46510-51K00-000 AXLE,RR2008-06-01~ |
46510-51K00-000 |
US $809.60 |
||
|
7
|
7
79271-51K00-000 LABEL,AXLE2008-06-01~ |
79271-51K00-000 |
US $1.84 |
||
|
8
|
8
09103-12080-000 BOLT(12X30)2008-06-01~ |
09103-12080-000 |
US $2.40 |
||
|
9
|
9
09135-12015-000 BOLT(12X115)2008-06-01~ |
09135-12015-000 |
US $44.20 |
||
|
10
|
10
41311-51KB0-000 SPRING,REAR COIL2008-06-01~ |
41311-51KB0-000 |
US $100.46 |
||
|
11
|
11
41341-62J00-000
SEAT,REAR SPRING UPPER
2008-06-01~ |
41341-62J00-000 |
— | ||
| replacement | |||||
|
11
|
11
41341-79J00-000
SEAT, REAR SPRING UPPER
2008-06-01~ |
41341-79J00-000 |
— | ||
|
12
|
12
41800-51KA0-000 ABSORBER ASSY,RR SHOCK2008-06-01~ |
41800-51KA0-000 |
US $188.48 |
||
|
13
|
13
09159-12045-000 NUT2008-06-01~ |
09159-12045-000 |
US $16.20 |
||
| replacement | |||||
|
13
|
13
09159-12049-000 NUT2008-06-01~ |
09159-12049-000 |
US $38.60 |
||
|
14
|
14
09160-12109-000 WASHER(12.5X38X3.2)2008-06-01~ |
09160-12109-000 |
US $21.30 |
||
|
15
|
15
43241-86G01-000 CAP,SPRING2008-06-01~ |
43241-86G01-000 |
US $8.13 |
||
|
16
|
16
46860-62J00-000
Bearing,rear wheel
2008-06-01~ |
46860-62J00-000 |
— | ||
| replacement | |||||
|
16
|
16
46860-62J01-000 BEARING,RR WHEEL2008-06-01~ |
46860-62J01-000 |
US $98.99 |
||
|
17
|
17
09159-18022-000 NUT2008-06-01~ |
09159-18022-000 |
from US $4.82 |
||
|
18
|
18
08331-4158A-000 CIRCLIP2008-06-01~ |
08331-4158A-000 |
from US $2.56 |
||
|
19
|
19
43511-62J10-000
Drum, rear brake
2008-06-01~ |
43511-62J10-000 |
— | ||
| replacement | |||||
|
19
|
19
43511-62J11-000 DRUM,RR BRAKE2008-06-01~ |
43511-62J11-000 |
US $193.20 |
||
|
20
|
20
56451-51K00-000 RING,RR WHEEL SENSOR2008-06-01~ |
56451-51K00-000 |
US $93.60 |
||
