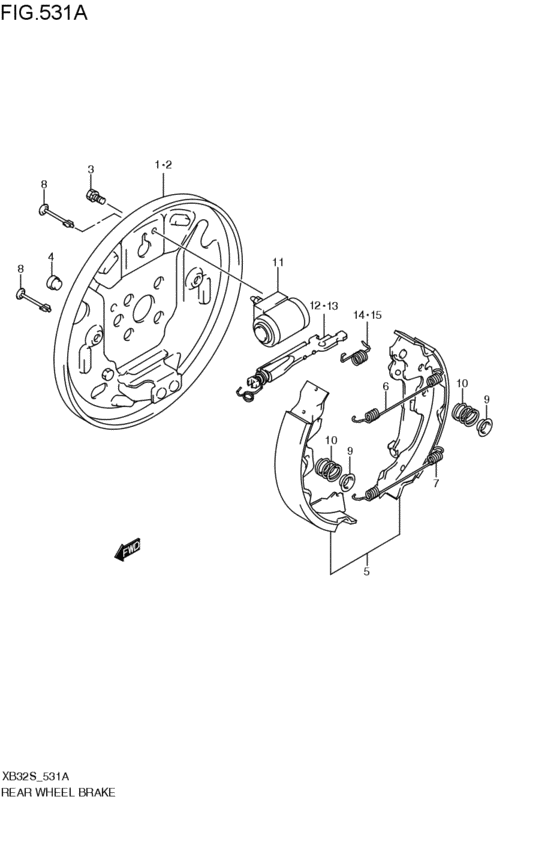

rear wheel brakes (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53101-62J00-000 PLATE,BACKING,R2008-06-01~ |
53101-62J00-000 |
US $129.90 |
||
|
2
|
2
53102-62J00-000 PLATE,BACKING,L2008-06-01~ |
53102-62J00-000 |
US $129.90 |
||
|
3
|
3
53131-80EC0-000 BOLT,RR BRAKE2008-06-01~ |
53131-80EC0-000 |
US $13.32 |
||
|
4
|
4
53141-80EC0-000 PLUG,CHECKING2008-06-01~ |
53141-80EC0-000 |
US $3.02 |
||
|
5
|
5
53200-62J02-000 SHOE SET,BRAKE2008-06-01~ |
53200-62J02-000 |
US $153.52 |
||
|
6
|
6
53231-80EC0-000 SPRING,SHOE RETURN2008-06-01~ |
53231-80EC0-000 |
US $18.95 |
||
|
7
|
7
53232-80EC0-000 SPRING,SHOE RETURN LOWER2008-06-01~ |
53232-80EC0-000 |
US $13.87 |
||
|
8
|
8
53241-62J00-000 PIN,SHOE HOLD DOWN2008-06-01~ |
53241-62J00-000 |
US $19.50 |
||
|
9
|
9
53242-62J00-000 RETAINING,HOLD DOWN2008-06-01~ |
53242-62J00-000 |
from US $7.25 |
||
|
10
|
10
53243-80EC0-000 SPRING,HOLD DOWN2008-06-01~ |
53243-80EC0-000 |
from US $5.08 |
||
|
11
|
11
53401-62J00-000
Cylinder assy, rear wheel
2008-06-01~ |
53401-62J00-000 |
— | ||
| replacement | |||||
|
11
|
11
53401-62J11-000 CYLINDER ASSY,RR WHEEL2008-06-01~ |
53401-62J11-000 |
US $167.81 |
||
|
12
|
12
53701-62J00-000 STRUT ASSY,BRAKE,R2008-06-01~ |
53701-62J00-000 |
from US $79.81 |
||
|
13
|
13
53702-62J00-000 STRUT ASSY,BRAKE,L2008-06-01~ |
53702-62J00-000 |
from US $79.81 |
||
|
14
|
14
53711-80EC0-000 SPRING,STRUT RETAINING,R2008-06-01~ |
53711-80EC0-000 |
US $6.59 |
||
|
15
|
15
53712-80EC0-000 SPRING,STRUT RETAINING,L2008-06-01~ |
53712-80EC0-000 |
US $6.59 |
||
