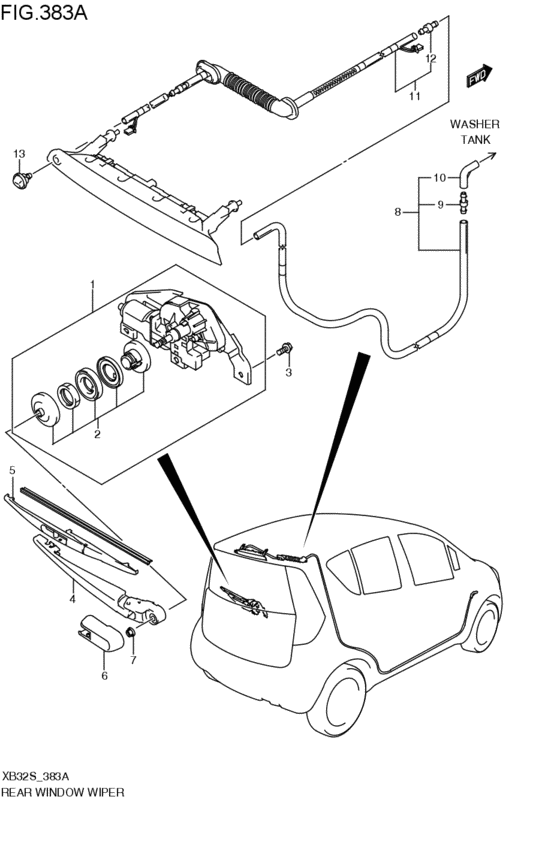

rear wind windshield wiper (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38810-51K00-000
Wiper assy, rear window
2008-06-01~ |
38810-51K00-000 |
— | ||
|
2
|
2
38274-62J00-000 CAP,RR WIPER PIVOT2008-06-01~ |
38274-62J00-000 |
US $3.50 |
||
|
3
|
3
09115-06005-000 BOLT(6X16)2008-06-01~ |
09115-06005-000 |
US $1.28 |
||
|
4
|
4
38821-51K00-000
Arm assy, rear wiper
2008-06-01~2009-08-01 |
38821-51K00-000 |
— | ||
| replacement | |||||
|
4
|
4
38821-51K02-000 ARM ASSY,RR WIPER2008-06-01~2009-08-01 |
38821-51K02-000 |
from US $26.82 |
||
|
4
|
4
38821-51K01-000
Arm assy, rear wiper
2009-09-01~ |
38821-51K01-000 |
— | ||
| replacement | |||||
|
4
|
4
38821-51K02-000 ARM ASSY,RR WIPER2009-09-01~ |
38821-51K02-000 |
from US $26.82 |
||
|
5
|
5
38340-51K40-000
Blade assy, rear wiper
2008-06-01~2009-08-01 |
38340-51K40-000 |
— | ||
| replacement | |||||
|
5
|
5
38340-51K42-000 BLADE ASSY,REAR WIPER2008-06-01~2009-08-01 |
38340-51K42-000 |
from US $12.40 |
||
|
5
|
5
38340-51K41-000
Blade assy,rear wiper
2009-09-01~ |
38340-51K41-000 |
— | ||
| replacement | |||||
|
5
|
5
38340-51K42-000 BLADE ASSY,REAR WIPER2009-09-01~ |
38340-51K42-000 |
from US $12.40 |
||
|
6
|
6
38315-51K00-000 COVER2008-06-01~ |
38315-51K00-000 |
US $3.68 |
||
|
7
|
7
08316-1006A-000 NUT2008-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
8
|
8
38834-51K10-000
HOSE ASSY,RR WASHER FLOOR
2008-06-01~ |
38834-51K10-000 |
— | ||
|
9
|
9
38496-62JA0-000 VALVE2008-06-01~ |
38496-62JA0-000 |
US $4.12 |
||
|
10
|
10
38496-62JB0-000
Joint, elbow
2008-06-01~ |
38496-62JB0-000 |
— | ||
| replacement | |||||
|
10
|
10
38496-68L50-000 JOINT,ELBOW2008-06-01~ |
38496-68L50-000 |
US $4.49 |
||
|
11
|
11
38834-51K00-000
Hose, rear washer back door
2008-06-01~ |
38834-51K00-000 |
— | ||
| replacement | |||||
|
11
|
11
38834-51K01-000 HOSE ASSY,RR WASHER BACK DOOR2008-06-01~ |
38834-51K01-000 |
US $37.54 |
||
|
12
|
12
38496-62JA0-000 VALVE2008-06-01~ |
38496-62JA0-000 |
US $4.12 |
||
|
13
|
13
38840-51K00-000
NOZZLE ASSY,RR WASHER
2008-06-01~ |
38840-51K00-000 |
— | ||
