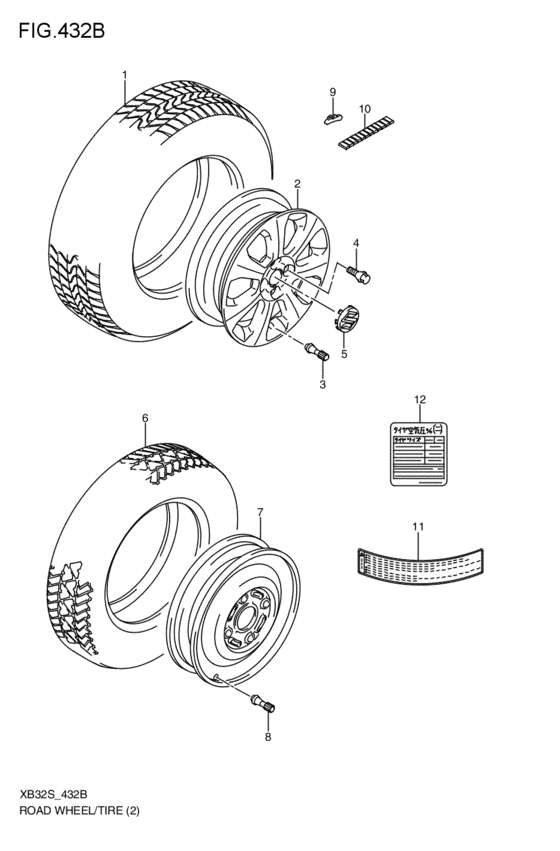

road wheel / tire (ES; 2009-08-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43110-51K50-000
Wheels/tires
ES; 2009-08-01~ |
43110-51K50-000 |
— | ||
| replacement | |||||
|
1
|
1
43110-51K51-000
New Genuine Part
ES; 2009-08-01~ |
43110-51K51-000 |
— | ||
|
2
|
2
43210-51K60-27N
ホイール,アルミ(15X5 1/2J)(シルバー)
ES; 2009-08-01~ |
43210-51K60-27N |
— | ||
|
3
|
3
43130-60E10-000
VALVE,TIRE TR414(BS)
BS; ES; 2009-08-01~ |
43130-60E10-000 |
— | ||
|
4
|
4
43423-86G00-000
Bolt
ES; 2009-08-01~ |
43423-86G00-000 |
— | ||
| replacement | |||||
|
4
|
4
43423-86G01-000 BOLT,WHEELES; 2009-08-01~ |
43423-86G01-000 |
from US $2.81 |
||
|
5
|
5
43252-51K10-CZ2
CAP,AL WHEEL CTR
ES; 2009-08-01~ |
43252-51K10-CZ2 |
— | ||
|
6
|
6
43180-62J10-000
TIRE,SPARE(T125/70R15)
YOKOHAMA; ES; 2009-08-01~ |
43180-62J10-000 |
— | ||
|
7
|
7
43290-62J10-000
WHEEL,SPARE(15X4J)
ES; 2009-08-01~ |
43290-62J10-000 |
— | ||
|
8
|
8
43130-60E10-000
VALVE,TIRE TR414(BS)
ES; 2009-08-01~ |
43130-60E10-000 |
— | ||
|
9
|
9
43222-62J00-000
Weight, wheel balance
ES; 2009-08-01~ |
43222-62J00-000 |
— | ||
|
9
|
9
43222-62J10-000
Weight, wheel balance
ES; 2009-08-01~ |
43222-62J10-000 |
— | ||
|
9
|
9
43222-62J20-000
Weight, wheel balance
ES; 2009-08-01~ |
43222-62J20-000 |
— | ||
|
9
|
9
43222-62J30-000
Weight, wheel balance
ES; 2009-08-01~ |
43222-62J30-000 |
— | ||
|
9
|
9
43222-62J40-000
Weight, wheel balance
ES; 2009-08-01~ |
43222-62J40-000 |
— | ||
|
9
|
9
43222-62J50-000
Weight, wheel balance
ES; 2009-08-01~ |
43222-62J50-000 |
— | ||
|
9
|
9
43222-62J60-000
Weight, wheel balance
ES; 2009-08-01~ |
43222-62J60-000 |
— | ||
|
9
|
9
43222-62J70-000
Weight, wheel balance
ES; 2009-08-01~ |
43222-62J70-000 |
— | ||
|
9
|
9
43222-62J80-000
Weight, wheel balance
ES; 2009-08-01~ |
43222-62J80-000 |
— | ||
|
9
|
9
43222-62J90-000
Weight, wheel balance
ES; 2009-08-01~ |
43222-62J90-000 |
— | ||
|
10
|
10
43223-62J00-000
Weight, wheel balance
ES; 2009-08-01~ |
43223-62J00-000 |
— | ||
|
10
|
10
43223-62J10-000
Weight, wheel balance
ES; 2009-08-01~ |
43223-62J10-000 |
— | ||
|
10
|
10
43223-62J20-000
Weight, wheel balance
ES; 2009-08-01~ |
43223-62J20-000 |
— | ||
|
10
|
10
43223-62J30-000
Weight, wheel balance
ES; 2009-08-01~ |
43223-62J30-000 |
— | ||
|
10
|
10
43223-62J40-000
Weight, wheel balance
ES; 2009-08-01~ |
43223-62J40-000 |
— | ||
|
10
|
10
43223-62J50-000
Weight, wheel balance
ES; 2009-08-01~ |
43223-62J50-000 |
— | ||
|
10
|
10
43223-62J60-000
Weight, wheel balance
ES; 2009-08-01~ |
43223-62J60-000 |
— | ||
|
10
|
10
43223-62J70-000
Weight, wheel balance
ES; 2009-08-01~ |
43223-62J70-000 |
— | ||
|
10
|
10
43223-62J80-000
Weight, wheel balance
ES; 2009-08-01~ |
43223-62J80-000 |
— | ||
|
10
|
10
43223-62J90-000
Weight, wheel balance
ES; 2009-08-01~ |
43223-62J90-000 |
— | ||
|
11
|
11
79167-70G03-000
PLACARD,SPARE TIRE
ES; 2009-08-01~ |
79167-70G03-000 |
— | ||
|
12
|
12
79161-51K00-000
プラカード,タイヤインフォメーション
ES; 2009-08-01~ |
79161-51K00-000 |
— | ||
