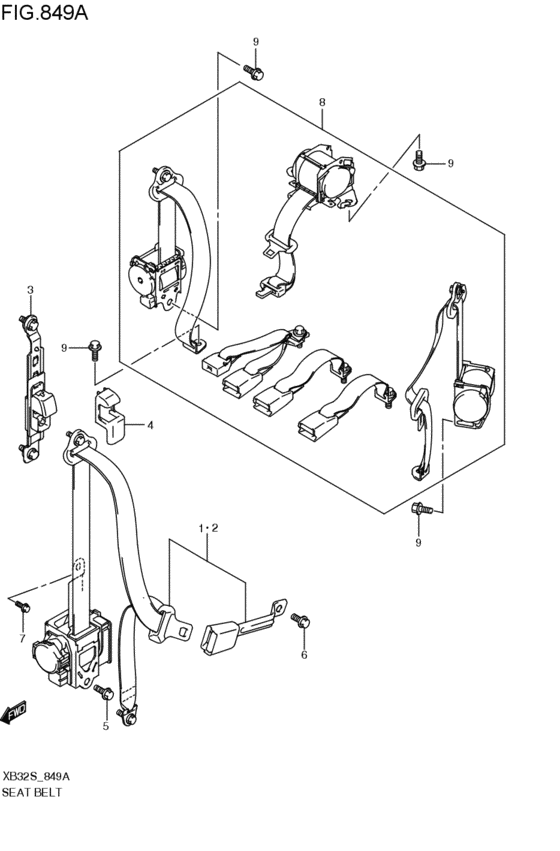

seat belt (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-51K10-BHE BELT ASSY,FR,RGray/black 2008-06-01~ |
84901-51K10-BHE |
US $371.68 |
||
|
2
|
2
84902-51K20-BHE
ベルトアッシ,フロント,レフト(グレー/ブラック)
2008-06-01~ |
84902-51K20-BHE |
— | ||
|
3
|
3
84990-51K00-6GS ADJUSTER ASSY,FR SHLDRGray 2008-06-01~ |
84990-51K00-6GS |
US $52.26 |
||
|
4
|
4
84991-51K00-6GS COVER,SHOULDER ADJUSTERGray 2008-06-01~ |
84991-51K00-6GS |
US $29.60 |
||
|
5
|
5
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle 2008-06-01~ |
09103-11001-000 |
US $18 |
||
|
6
|
6
09117-11002-000 BOLT(11X20)2008-06-01~ |
09117-11002-000 |
US $20.20 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket 2008-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
8
|
8
84908-51K10-5PK BELT ASSY,RR2008-06-01~ |
84908-51K10-5PK |
US $513.92 |
||
|
9
|
9
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle 2008-06-01~ |
09103-11001-000 |
US $18 |
