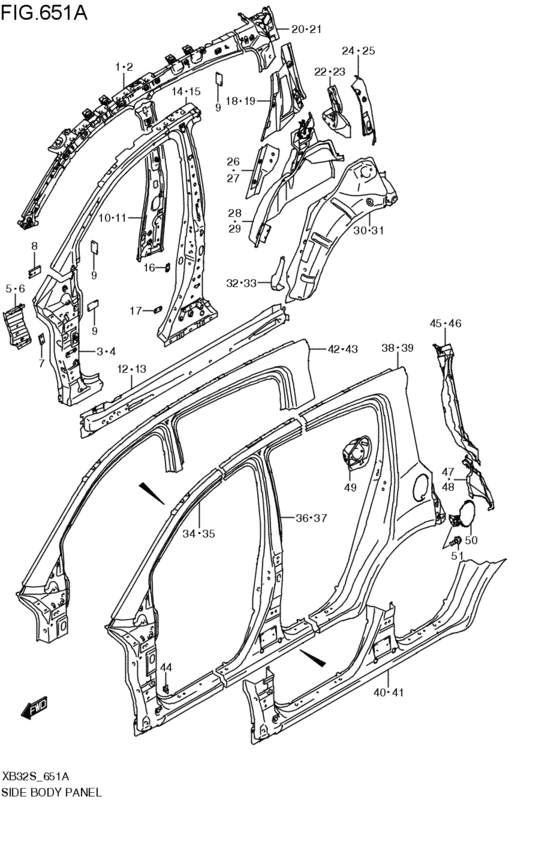

side body panel (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63110-51K00-000
PANEL,FR PILLAR INNER,R
2008-06-01~ |
63110-51K00-000 |
— | ||
|
2
|
2
63510-51K00-000
PANEL,FR PILLAR INNER,L
2008-06-01~ |
63510-51K00-000 |
— | ||
|
3
|
3
63140-51K00-000
REINFORCEMENT,FR DOOR HNG,R
2008-06-01~ |
63140-51K00-000 |
— | ||
|
4
|
4
63540-51K00-000
REINFORCEMENT,FR DOOR HNG,L
2008-06-01~ |
63540-51K00-000 |
— | ||
|
5
|
5
63142-51K00-000
BRACE,FR PILLAR LOWER,R
2008-06-01~ |
63142-51K00-000 |
— | ||
|
6
|
6
63542-51K00-000
BRACE,FR PILLAR LOWER,L
2008-06-01~ |
63542-51K00-000 |
— | ||
|
7
|
7
63145-58J00-000 RETAINER,DR HINGE NO.22008-06-01~ |
63145-58J00-000 |
US $6.29 |
||
|
8
|
8
63146-65J00-000 REINFORCEMENT,FR DOOR HNG UPR2008-06-01~ |
63146-65J00-000 |
US $13.43 |
||
|
9
|
9
83921-82C00-000 PAD2008-06-01~ |
83921-82C00-000 |
US $4.16 |
||
|
10
|
10
63210-51K00-000
PANEL,CTR PILLAR INNER,R
2008-06-01~ |
63210-51K00-000 |
— | ||
|
11
|
11
63610-51K00-000
PANEL,CTR PILLAR INNER,L
2008-06-01~ |
63610-51K00-000 |
— | ||
|
12
|
12
63220-51K00-000
STRENGTH,SIDE SILL,R
2008-06-01~ |
63220-51K00-000 |
— | ||
|
13
|
13
63620-51K00-000 STRENGTH,SIDE SILL,L2008-06-01~ |
63620-51K00-000 |
US $137.63 |
||
|
14
|
14
63230-51K00-000 REINFORCEMENT,CTR PILLAR,R2008-06-01~ |
63230-51K00-000 |
US $60.35 |
||
|
15
|
15
63630-51K00-000 REINFORCEMENT,CTR PILLAR,L2008-06-01~ |
63630-51K00-000 |
US $50.05 |
||
|
16
|
16
63243-75J00-000 RETAINER,RR DR HNG UPR2008-06-01~ |
63243-75J00-000 |
US $7.69 |
||
|
17
|
17
63244-75J00-000 RETAINER,RR DR HNG LWR2008-06-01~ |
63244-75J00-000 |
US $7.95 |
||
|
18
|
18
63311-51K00-000
PANEL,QUARTER INNER,R
2008-06-01~ |
63311-51K00-000 |
— | ||
|
19
|
19
63711-51K00-000 PANEL,QUARTER INNER,L2008-06-01~ |
63711-51K00-000 |
US $72.86 |
||
|
20
|
20
63312-51K00-000
EXTENSION,QTR INR UPR,R
2008-06-01~ |
63312-51K00-000 |
— | ||
|
21
|
21
63712-51K00-000
EXTENSION,QTR INR UPR,L
2008-06-01~ |
63712-51K00-000 |
— | ||
|
22
|
22
63313-51K00-000 PANEL,RR LAMP HOUSE INR,R2008-06-01~ |
63313-51K00-000 |
US $37.90 |
||
|
23
|
23
63713-51K00-000 PANEL,RR LAMP HOUSE INR,L2008-06-01~ |
63713-51K00-000 |
US $51.52 |
||
|
24
|
24
63314-51K00-000
REINFORCEMENT,RR SEAT BELT,R
2008-06-01~ |
63314-51K00-000 |
— | ||
|
25
|
25
63714-51K00-000 REINFORCEMENT,RR SEAT BELT,L2008-06-01~ |
63714-51K00-000 |
US $26.50 |
||
|
26
|
26
63320-51K00-000
Reinf, rr door striker rh
2008-06-01~ |
63320-51K00-000 |
— | ||
| replacement | |||||
|
26
|
26
63320-83K00-000
REINF,RR DOOR STRIKER,R
2008-06-01~ |
63320-83K00-000 |
— | ||
|
27
|
27
63720-51K00-000
Reinf, rr door striker lh
2008-06-01~ |
63720-51K00-000 |
— | ||
| replacement | |||||
|
27
|
27
63720-83K00-000
REINFORCEMENT,RR DOOR SRKR,L
2008-06-01~ |
63720-83K00-000 |
— | ||
|
28
|
28
63410-51K00-000 PANEL,WHEEL HOUSE INNER,R2008-06-01~ |
63410-51K00-000 |
US $231.84 |
||
|
29
|
29
63810-51K00-000 PANEL,WHEEL HOUSE INNER,L2008-06-01~ |
63810-51K00-000 |
US $193.20 |
||
|
30
|
30
63481-51K00-000 PANEL,WHEEL HOUSE OUTER,R2008-06-01~ |
63481-51K00-000 |
US $121.44 |
||
|
31
|
31
63881-51K00-000 PANEL,WHEEL HOUSE OUTER,L2008-06-01~ |
63881-51K00-000 |
US $121.44 |
||
|
32
|
32
63482-51K00-000 EXTENSION,WHL HOUSE OTR LWR,R2008-06-01~ |
63482-51K00-000 |
US $23.55 |
||
|
33
|
33
63882-51K00-000 EXTENSION,WHL HOUSE OTR LWR,L2008-06-01~ |
63882-51K00-000 |
US $23.55 |
||
|
34
|
34
64111-51K00-P11
PANEL,A-PLR,R
2008-06-01~ |
64111-51K00-P11 |
— | ||
|
35
|
35
64511-51K00-P11
PANEL,A-PLR,L
2008-06-01~ |
64511-51K00-P11 |
— | ||
|
36
|
36
64111-51K00-P21 PANEL,B-PLR,R2008-06-01~ |
64111-51K00-P21 |
US $217.12 |
||
|
37
|
37
64511-51K00-P21 PANEL,B-PLR,L2008-06-01~ |
64511-51K00-P21 |
US $180.32 |
||
|
38
|
38
64111-51K00-P31 PANEL,QTR,R2008-06-01~ |
64111-51K00-P31 |
US $478.80 |
||
|
39
|
39
64511-51K00-P31 PANEL,QTR,L2008-06-01~ |
64511-51K00-P31 |
US $312.80 |
||
|
40
|
40
64111-51K00-P41 PANEL,SIDE SILL,R2008-06-01~ |
64111-51K00-P41 |
US $290.72 |
||
|
41
|
41
64511-51K00-P41 PANEL,SIDE SILL,L2008-06-01~ |
64511-51K00-P41 |
US $290.72 |
||
|
42
|
42
64111-51K00-P51
PANEL,SIDE OTR UPR,R
2008-06-01~ |
64111-51K00-P51 |
— | ||
|
43
|
43
64511-51K00-P51
PANEL,SIDE OTR UPR,L
2008-06-01~ |
64511-51K00-P51 |
— | ||
|
44
|
44
64113-63J00-000 BRACKET,FR FNDR2008-06-01~ |
64113-63J00-000 |
US $5.15 |
||
|
45
|
45
64120-51K00-000 EXTENSION,SIDE BODY OTR,R2008-06-01~ |
64120-51K00-000 |
US $316.48 |
||
|
46
|
46
64520-51K00-000 EXTENSION,SIDE BODY OTR,L2008-06-01~ |
64520-51K00-000 |
US $316.48 |
||
|
47
|
47
64124-51K00-000 EXTENSION,SIDE BODY LWR,R2008-06-01~ |
64124-51K00-000 |
US $85.74 |
||
|
48
|
48
64524-51K00-000 EXTENSION,SIDE BODY LWR,L2008-06-01~ |
64524-51K00-000 |
US $85.74 |
||
|
49
|
49
64571-51K00-000 BOX,FUEL FILLER2008-06-01~ |
64571-51K00-000 |
US $57.04 |
||
|
50
|
50
64850-51K00-000 DOOR,FUEL FILLER2008-06-01~ |
64850-51K00-000 |
US $38.27 |
||
|
51
|
51
01550-0612A-000 BOLT2008-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
