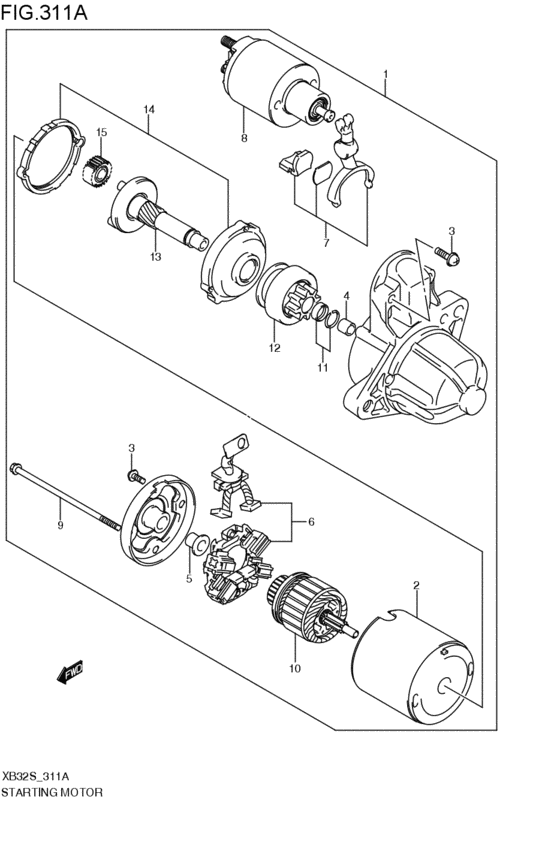

starting motor (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-51K00-000
Motor assy, starting
2008-06-01~ |
31100-51K00-000 |
— | ||
|
2
|
2
31110-63J00-000 YOKE ASSY2008-06-01~ |
31110-63J00-000 |
US $257.60 |
||
|
3
|
3
31136-79030-000
SCREW ASSY
2008-06-01~ |
31136-79030-000 |
— | ||
| replacement | |||||
|
3
|
3
31175-79030-000 Screw Set2008-06-01~ |
31175-79030-000 |
US $8.16 |
||
|
4
|
4
31152-63J00-000 BEARING,FRONT2008-06-01~ |
31152-63J00-000 |
from US $10.33 |
||
|
5
|
5
31172-64B60-000 BEARING,REAR2008-06-01~ |
31172-64B60-000 |
US $10.56 |
||
|
6
|
6
31173-63J00-000 BRUSH ASSY2008-06-01~ |
31173-63J00-000 |
from US $32 |
||
|
7
|
7
31191-63J00-000 LEVER ASSY2008-06-01~ |
31191-63J00-000 |
US $11.68 |
||
|
8
|
8
31220-63J00-000 SWITCH ASSY2008-06-01~ |
31220-63J00-000 |
US $120.80 |
||
|
9
|
9
31261-75F10-000 Bolt2008-06-01~ |
31261-75F10-000 |
US $5.96 |
||
|
10
|
10
31311-63J00-000 ARMATURE2008-06-01~ |
31311-63J00-000 |
US $285.20 |
||
|
11
|
11
31313-86030-000
STOPPER SET
2008-06-01~ |
31313-86030-000 |
— | ||
| replacement | |||||
|
11
|
11
31314-86030-000 Stopper Set2008-06-01~ |
31314-86030-000 |
from US $10.53 |
||
|
12
|
12
31320-63J00-000 CLUTCH,OVER RUNNING2008-06-01~ |
31320-63J00-000 |
US $89.60 |
||
|
13
|
13
31341-63J00-000 SHAFT ASSY,GEAR2008-06-01~ |
31341-63J00-000 |
US $203.20 |
||
|
14
|
14
31343-63J00-000 INTERNAL GEAR2008-06-01~ |
31343-63J00-000 |
US $90.40 |
||
|
15
|
15
31344-63J00-000 GEAR ASSY2008-06-01~ |
31344-63J00-000 |
US $48 |
||
