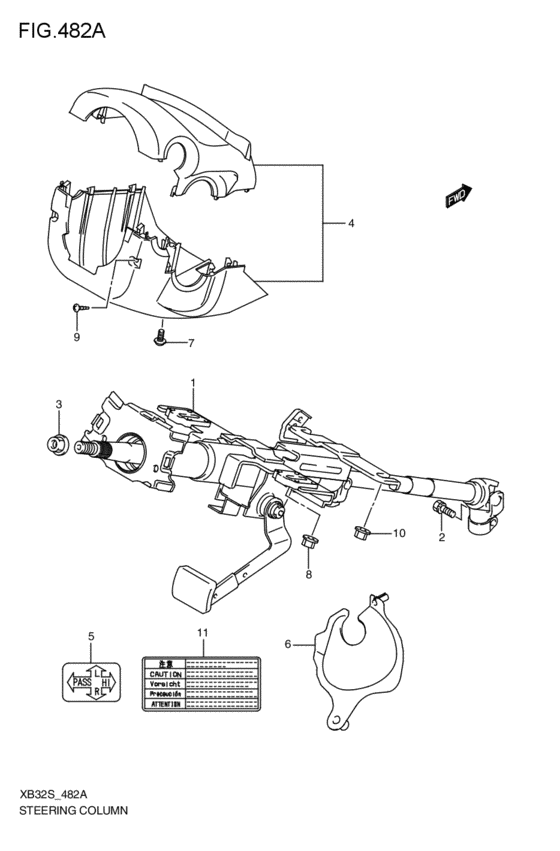

steering column (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-51K10-000 COLUMN ASSY,COLPS STRG2008-06-01~ |
48200-51K10-000 |
US $651.20 |
||
|
2
|
2
09117-08053-000 BOLT(8X30)2008-06-01~ |
09117-08053-000 |
US $20.20 |
||
|
3
|
3
08316-1012A-000 NUT2008-06-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
4
|
4
48400-51K00-S1S COVER ASSY,STRG COLUMNGray 2008-06-01~ |
48400-51K00-S1S |
US $41.58 |
||
|
5
|
5
48461-51K00-000
ラベル,ライティング/ターン
2008-06-01~ |
48461-51K00-000 |
— | ||
|
6
|
6
48481-72K00-000
Cover, steering joint
2008-06-01~ |
48481-72K00-000 |
— | ||
|
7
|
7
09136-05030-000 SCREW(5X12)2008-06-01~ |
09136-05030-000 |
US $0.96 |
||
|
8
|
8
09159-08135-000 NUT2008-06-01~ |
09159-08135-000 |
from US $0.77 |
||
|
9
|
9
03211-0512B-000 SCREW2008-06-01~ |
03211-0512B-000 |
US $7.70 |
||
|
10
|
10
08316-1008A-000 NUTNut, idle gear shaft 2008-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
11
|
11
79172-80G01-000
Label,steering joint
2008-06-01~ |
79172-80G01-000 |
— | ||
| replacement | |||||
|
11
|
11
79172-80G02-000 LABEL,STRG JOINT2008-06-01~ |
79172-80G02-000 |
US $4.48 |
||
