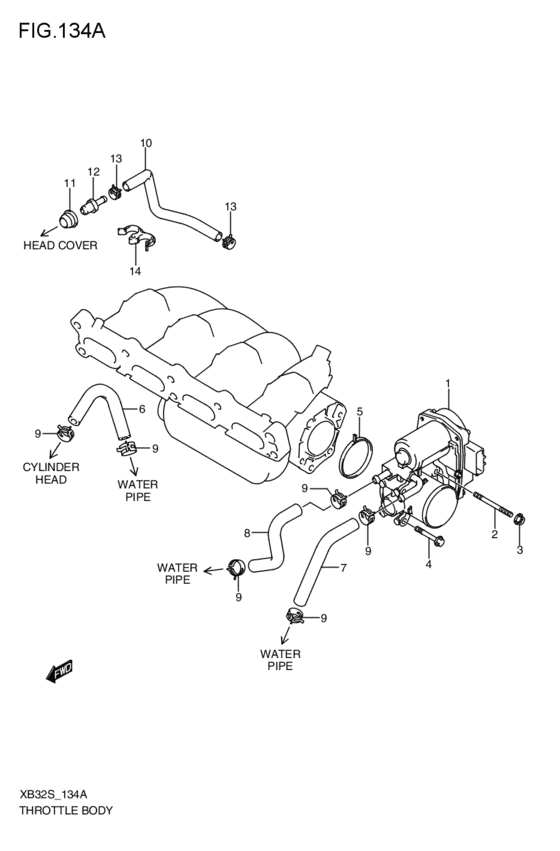

throttle body (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-73K00-000 BODY ASSY,THROTTLE2008-06-01~ |
13400-73K00-000 |
US $577.28 |
||
|
2
|
2
01421-0645A-000 BOLT,STUD2008-06-01~ |
01421-0645A-000 |
from US $1.12 |
||
|
3
|
3
08316-1006A-000 NUT2008-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
4
|
4
01550-0645A-000 Bolt2008-06-01~ |
01550-0645A-000 |
from US $0.96 |
||
|
5
|
5
13421-73K00-000 GASKET,THROTTLE BODY2008-06-01~ |
13421-73K00-000 |
from US $6.05 |
||
|
6
|
6
13491-73KA0-000
ホース,ウォータスロットルボディインレットNO.1
2008-06-01~ |
13491-73KA0-000 |
— | ||
|
7
|
7
13492-73KA0-000
ホース,ウォータスロットルボディアウトレット
2008-06-01~ |
13492-73KA0-000 |
— | ||
|
8
|
8
13493-73KA0-000
ホース,ウォータスロットルボディインレットNO.2
2008-06-01~ |
13493-73KA0-000 |
— | ||
|
9
|
9
09401-12410-000 CLIPClip, filter outlet 2008-06-01~ |
09401-12410-000 |
from US $1.19 |
||
|
10
|
10
11193-73K00-000 HOSE,PCV2008-06-01~ |
11193-73K00-000 |
US $12.77 |
||
|
11
|
11
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve 2008-06-01~ |
11198-58B00-000 |
US $5.20 |
||
| replacement | |||||
|
11
|
11
11198-98L00-000 Seal,pcv Valve2008-06-01~ |
11198-98L00-000 |
from US $2.74 |
||
|
12
|
12
18118-73K00-000 VALVE,PCV2008-06-01~ |
18118-73K00-000 |
from US $14.15 |
||
|
13
|
13
09401-13414-000 CLIPClip, pcv hose 2008-06-01~ |
09401-13414-000 |
from US $1.60 |
||
|
14
|
14
09408-00155-000 CLAMP2008-06-01~ |
09408-00155-000 |
from US $3.33 |
||
