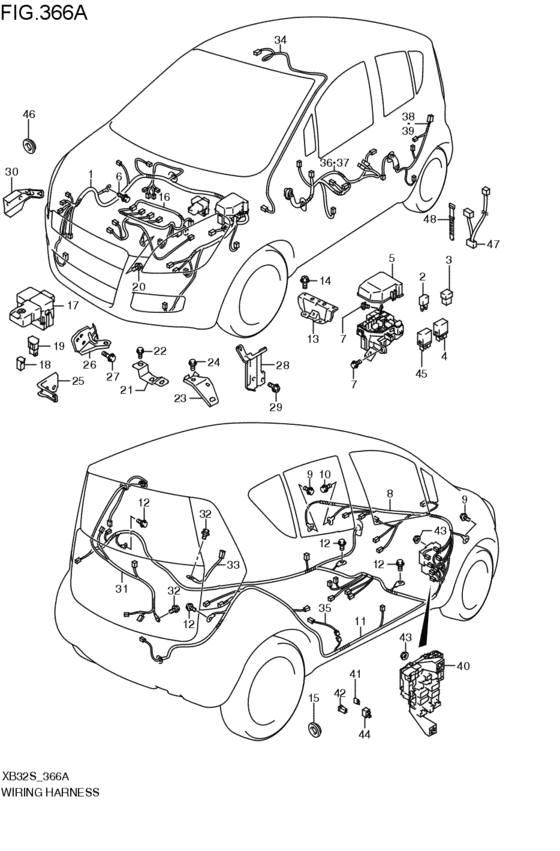

wire ring harness (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-51KB0-000
ハーネスアッシ,メイン
ES; 2009-08-01~ |
36610-51KB0-000 |
— | ||
|
2
|
2
09481-10501-000 FUSE(10A)2008-06-01~ |
09481-10501-000 |
from US $1.06 |
||
|
2
|
2
09481-15501-000 FUSE(15A)2008-06-01~ |
09481-15501-000 |
from US $3.25 |
||
|
2
|
2
09481-30501-000 FUSE(30A)2008-06-01~ |
09481-30501-000 |
from US $1.08 |
||
|
3
|
3
09481-30401-000 FUSE(30A)2008-06-01~ |
09481-30401-000 |
from US $5.96 |
||
|
3
|
3
09481-50401-000 FUSE(50A)2008-06-01~ |
09481-50401-000 |
US $46 |
||
|
4
|
4
38860-76F01-000 RELAY ASSYRelay, starting motor スタータ リレー; 2008-06-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
5
|
5
36717-63J00-000 COVER,RELAY BOX2008-06-01~ |
36717-63J00-000 |
US $17.26 |
||
|
6
|
6
09115-06005-000 BOLT(6X16)2008-06-01~ |
09115-06005-000 |
US $1.28 |
||
|
7
|
7
01550-0616A-000 BOLT2008-06-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
8
|
8
36620-51KA0-000
ハーネスアッシ,インストゥルメントパネル
2008-06-01~ |
36620-51KA0-000 |
— | ||
|
9
|
9
09115-06005-000 BOLT(6X16)2008-06-01~ |
09115-06005-000 |
US $1.28 |
||
|
10
|
10
02162-0612A-000 SCREWBolt, bracket 2008-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
11
|
11
36630-51KC0-000
ハーネスアッシ,フロア
ES; 2009-08-01~ |
36630-51KC0-000 |
— | ||
|
12
|
12
09115-06005-000 BOLT(6X16)2008-06-01~ |
09115-06005-000 |
US $1.28 |
||
|
13
|
13
75881-62J00-000 BRACKET,FLOOR CONSOLE BOX,FR2008-06-01~ |
75881-62J00-000 |
US $9.16 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket 2008-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
15
|
15
09250-25007-000 CAP(OD:25.0)2008-06-01~ |
09250-25007-000 |
from US $0.97 |
||
|
16
|
16
36650-51K40-000
ハーネスアッシ,エンジン
2008-06-01~ |
36650-51K40-000 |
— | ||
|
17
|
17
36694-63J00-000 COVER,BATTERY TERMINAL2008-06-01~ |
36694-63J00-000 |
US $14.40 |
||
|
18
|
18
09481-50401-000 FUSE(50A)2008-06-01~ |
09481-50401-000 |
US $46 |
||
|
19
|
19
09481-80301-000 FUSE(80A)2008-06-01~ |
09481-80301-000 |
from US $5.74 |
||
|
20
|
20
01550-0612A-000 BOLT2008-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
21
|
21
36651-73K00-000
ブラケット,エンジンハーネスCVT
2008-06-01~ |
36651-73K00-000 |
— | ||
|
22
|
22
01550-0812A-000 BOLT2008-06-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
23
|
23
36652-73K00-000
ブラケット,エンジンハーネスCVT
2008-06-01~ |
36652-73K00-000 |
— | ||
|
24
|
24
01550-0612A-000 BOLT2008-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
25
|
25
36653-51K00-000 BRACKET,ENG HARN THERMO2008-06-01~ |
36653-51K00-000 |
US $6.55 |
||
|
26
|
26
36653-51K20-000
Bracket, engine harness egr
2008-06-01~ |
36653-51K20-000 |
— | ||
|
27
|
27
01550-0612A-000 BOLT2008-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
28
|
28
36653-73K00-000
ブラケット,エンジンハーネスボディ
2008-06-01~ |
36653-73K00-000 |
— | ||
|
29
|
29
02162-0612A-000 SCREWBolt, bracket 2008-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
30
|
30
36654-51K20-000 BRACKET,ENG HARN HOOK2008-06-01~ |
36654-51K20-000 |
US $4.93 |
||
|
31
|
31
36680-51K00-000
Harness assy, back door
2008-06-01~ |
36680-51K00-000 |
— | ||
|
32
|
32
09115-06005-000 BOLT(6X16)2008-06-01~ |
09115-06005-000 |
US $1.28 |
||
|
33
|
33
36891-80G00-000 WIRE,RR DF GND2008-06-01~ |
36891-80G00-000 |
US $4.16 |
||
|
34
|
34
36820-51K00-000
Wire, doom lamp
2008-06-01~ |
36820-51K00-000 |
— | ||
|
35
|
35
36840-51K00-000
WIRE,FUEL PUMP
2008-06-01~ |
36840-51K00-000 |
— | ||
|
36
|
36
36756-51K40-000
ワイヤ,パワーウィンドメイン
2008-06-01~ |
36756-51K40-000 |
— | ||
|
37
|
37
36757-51K40-000
ワイヤ,パワーウィンドサブ
2008-06-01~ |
36757-51K40-000 |
— | ||
|
38
|
38
36751-51K20-000
ワイヤ,リヤドアライトサイド
2008-06-01~ |
36751-51K20-000 |
— | ||
|
39
|
39
36751-51KC0-000
ワイヤ,リヤドアレフトサイド
2008-06-01~ |
36751-51KC0-000 |
— | ||
|
40
|
40
36780-51K50-000
ボックスセット,J/B/ボディコントロールMDL
2008-06-01~ |
36780-51K50-000 |
— | ||
| replacement | |||||
|
40
|
40
36780-51K52-000 BOX SET,J/B&BODY CONT MDL2008-06-01~ |
36780-51K52-000 |
US $404.80 |
||
|
41
|
41
09481-10501-000 FUSE(10A)2008-06-01~ |
09481-10501-000 |
from US $1.06 |
||
|
41
|
41
09481-15501-000 FUSE(15A)2008-06-01~ |
09481-15501-000 |
from US $3.25 |
||
|
41
|
41
09481-20501-000 FUSE(20A)2008-06-01~ |
09481-20501-000 |
from US $2.28 |
||
|
41
|
41
09481-25501-000 FUSE(25A)2008-06-01~ |
09481-25501-000 |
from US $2.28 |
||
|
42
|
42
09481-30401-000 FUSE(30A)2008-06-01~ |
09481-30401-000 |
from US $5.96 |
||
|
43
|
43
08316-1008A-000 NUTNut, idle gear shaft 2008-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
44
|
44
38860-76F01-000 RELAY ASSYRelay, starting motor ヒータ リレー; 2008-06-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
45
|
45
38860-76F01-000 RELAY ASSYRelay, starting motor メイン リレー; 2008-06-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
46
|
46
09250-30008-000 CAP(OD:40)2008-06-01~ |
09250-30008-000 |
US $13.20 |
||
| replacement | |||||
|
46
|
46
72999-67H00-000 CAP,OD:402008-06-01~ |
72999-67H00-000 |
from US $4.32 |
||
|
47
|
47
36691-51K00-000 WIRE,A/Bオプシヨン; 2008-06-01~ |
36691-51K00-000 |
US $73.97 |
||
|
48
|
48
09407-18402-000 CLAMP(L:165)Clamp (l:165) オプシヨン; 2008-06-01~ |
09407-18402-000 |
from US $1.98 |
||
