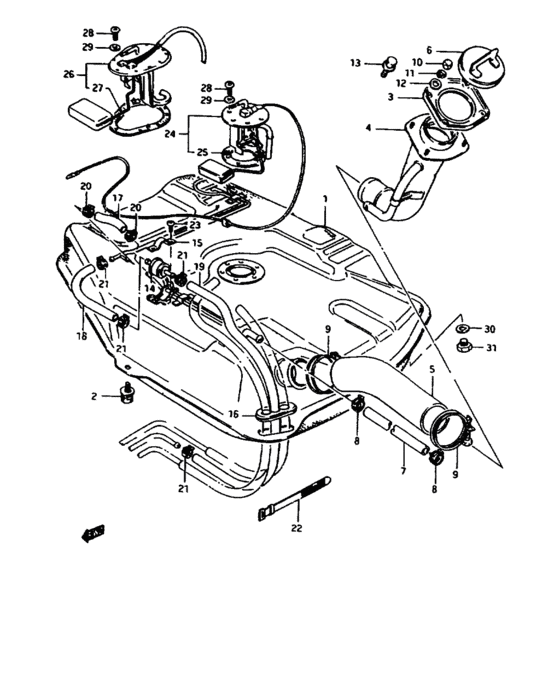

Fuel tank (3DR) Diagram Suzuki SPRINT
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-82012-000
Tank assy, fuel
<-89101-82000 |
89101-82012-000 |
— | ||
|
2
|
2
09118-08128-000 BOLT(8X16)Bolt, front fender, front <-09118-08118 |
09118-08128-000 |
US $1.28 |
||
|
3
|
3
85365-69000-000 GASKET,FUEL FILLER NECK |
85365-69000-000 |
US $5.34 |
||
|
3
|
3
89285-82000-000
パッキング,フューエルフィラ
Switzerland, Germany |
89285-82000-000 |
— | ||
| replacement | |||||
|
3
|
3
89285-75F00-000 PACKING,FUEL FILLERSwitzerland, Germany |
89285-75F00-000 |
US $5.17 |
||
|
4
|
4
89210-82020-000
Neck, fuel filler
->89210-82021,USED WITH 09116-05012,(4PCS.) |
89210-82020-000 |
— | ||
| replacements | |||||
|
4
|
4
09116-05014-000 BOLT(5X20)->89210-82021,USED WITH 09116-05012,(4PCS.) |
09116-05014-000 |
US $1.82 |
||
|
4
|
4
09116-05012-000
New Genuine Part
->89210-82021,USED WITH 09116-05012,(4PCS.) |
09116-05012-000 |
— | ||
|
4
|
4
89210-82021-000
Neck, fuel filler
AA41S-112929~ |
89210-82021-000 |
— | ||
|
4
|
4
89210-82000-000
Neck, fuel filler
Sinagpore,->89210-82001,USED WITH 09116-05012,(4PCS.) |
89210-82000-000 |
— | ||
| replacements | |||||
|
4
|
4
09116-05014-000 BOLT(5X20)Sinagpore,->89210-82001,USED WITH 09116-05012,(4PCS.) |
09116-05014-000 |
US $1.82 |
||
|
4
|
4
09116-05012-000
New Genuine Part
Sinagpore,->89210-82001,USED WITH 09116-05012,(4PCS.) |
09116-05012-000 |
— | ||
|
4
|
4
89210-82001-000
Neck, fuel filler
Sinagpore, AA41S-112929~ |
89210-82001-000 |
— | ||
|
4
|
4
89210-82011-000
Neck, fuel filler
Switzerland, Germany |
89210-82011-000 |
— | ||
|
4
|
4
89210-82031-000
Neck, fuel filler
Saudi Arabia |
89210-82031-000 |
— | ||
|
5
|
5
89241-82000-000
Hose, fuel tank filler
|
89241-82000-000 |
— | ||
|
6
|
6
89260-82101-000 CAP ASSY,FUEL FILLER<-89260-82100 |
89260-82101-000 |
US $35.20 |
||
|
6
|
6
89260-82021-000
Cap assy, fuel filler
Switzerland, Germany |
89260-82021-000 |
— | ||
| replacements | |||||
|
6
|
6
89260-60B02-000
Filler cap w/o label
Switzerland, Germany |
89260-60B02-000 |
— | ||
|
6
|
6
89260-50J50-000
CAP,FUEL FILLER
Switzerland, Germany |
89260-50J50-000 |
— | ||
|
6
|
6
89260-82030-000
Cap assy, fuel tank filler
Saudi Arabia |
89260-82030-000 |
— | ||
| replacement | |||||
|
6
|
6
89260-73H00-000 CAP ASSY,FUEL FILLERSaudi Arabia |
89260-73H00-000 |
from US $19.82 |
||
|
7
|
7
09343-11020-000
Hose, breather no.1
|
09343-11020-000 |
— | ||
| replacement | |||||
|
7
|
7
09355-11165-600 HOSE(11X16X600) |
09355-11165-600 |
from US $8.64 |
||
|
8
|
8
09401-15402-000
クリップ
|
09401-15402-000 |
— | ||
| replacement | |||||
|
8
|
8
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
9
|
9
09400-52311-000
クランプ
|
09400-52311-000 |
— | ||
| replacement | |||||
|
9
|
9
09400-52312-000 CLAMP |
09400-52312-000 |
US $20.20 |
||
|
10
|
10
08313-11053-000
Nut
|
08313-11053-000 |
— | ||
| replacement | |||||
|
10
|
10
08313-1005B-000 NUT |
08313-1005B-000 |
from US $3.69 |
||
|
11
|
11
08321-21053-000 Washer,lock5.1x9.5x1 |
08321-21053-000 |
US $1.07 |
||
| replacements | |||||
|
11
|
11
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
11
|
11
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
12
|
12
08322-21053-000 Washer |
08322-21053-000 |
US $1.07 |
||
| replacements | |||||
|
12
|
12
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
12
|
12
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
13
|
13
09116-05014-000 BOLT(5X20)AA41S-112929~ |
09116-05014-000 |
US $1.82 |
||
|
14
|
14
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
15
|
15
89485-82000-000 CLAMP,CHECK VALVE |
89485-82000-000 |
US $2.24 |
||
|
16
|
16
89511-82000-000
Grommet, fuel hose
|
89511-82000-000 |
— | ||
|
17
|
17
09343-04072-000
Hose
|
09343-04072-000 |
— | ||
| replacements | |||||
|
17
|
17
09355-45855-600
HOSE(4.5X8.5X600)
|
09355-45855-600 |
— | ||
|
17
|
17
09355-45001-600 Hose(4.5X8.5X600) |
09355-45001-600 |
from US $10.79 |
||
|
18
|
18
09343-05044-000
Hose
L:1425->200 |
09343-05044-000 |
— | ||
| replacement | |||||
|
18
|
18
09355-54115-00B HOSE(5.4X11.4X2000)L:1425->200 |
09355-54115-00B |
US $37.17 |
||
|
19
|
19
09343-05044-000
Hose
L:1425->520 |
09343-05044-000 |
— | ||
| replacement | |||||
|
19
|
19
09355-54115-00B HOSE(5.4X11.4X2000)L:1425->520 |
09355-54115-00B |
US $37.17 |
||
|
19
|
19
09343-05237-000 Hose, valve out5.4x11.4x510 Switzerland, Germany, Sinagpore, Saudi Arabia |
09343-05237-000 |
US $7.82 |
||
| replacements | |||||
|
19
|
19
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum Switzerland, Germany, Sinagpore, Saudi Arabia |
09355-54115-600 |
from US $7.20 |
||
|
19
|
19
09359-54111-600 HOSE(5.4X11.4X600)Hose, canister & carb Switzerland, Germany, Sinagpore, Saudi Arabia |
09359-54111-600 |
from US $22.40 |
||
|
20
|
20
09401-08408-000
クリップ
|
09401-08408-000 |
— | ||
| replacement | |||||
|
20
|
20
09401-08409-000 CLIP |
09401-08409-000 |
from US $0.73 |
||
|
21
|
21
09401-11409-000
クリップ
|
09401-11409-000 |
— | ||
| replacements | |||||
|
21
|
21
09401-11413-000 CLIP |
09401-11413-000 |
from US $0.96 |
||
|
21
|
21
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.12 |
||
|
22
|
22
09407-14401-000 CLAMPClamp, receptacle lead |
09407-14401-000 |
from US $5.13 |
||
|
23
|
23
02112-05086-000
Screw
|
02112-05086-000 |
— | ||
| replacement | |||||
|
23
|
23
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
|
28
|
28
09168-12005-000
ガスケット,12X21X1.5
|
09168-12005-000 |
— | ||
| replacement | |||||
|
28
|
28
09168-12018-000 GASKET(12X21X2) |
09168-12018-000 |
from US $1.60 |
||
|
29
|
29
09247-12101-000 BOLT |
09247-12101-000 |
US $2.24 |
||
