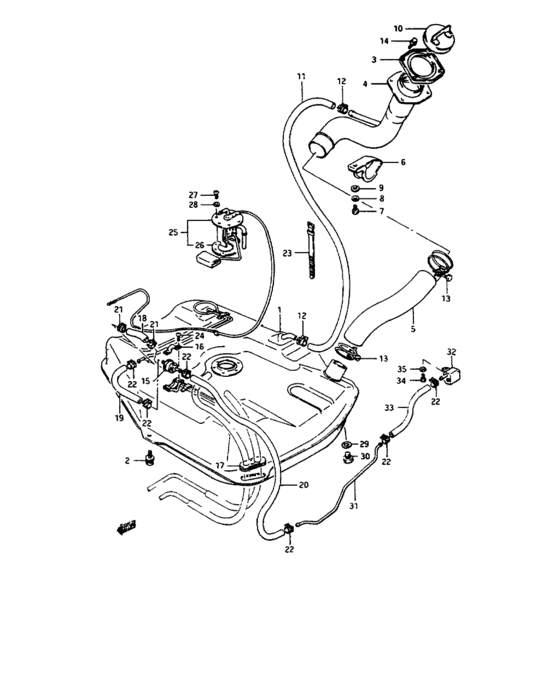

Fuel tank (5DR) Diagram Suzuki SPRINT
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-82212-000
Tank assy, fuel
|
89101-82212-000 |
— | ||
|
2
|
2
09118-08128-000 BOLT(8X16)Bolt, front fender, front |
09118-08128-000 |
US $1.28 |
||
|
3
|
3
85365-69000-000 GASKET,FUEL FILLER NECK |
85365-69000-000 |
US $5.34 |
||
|
3
|
3
89285-82000-000
パッキング,フューエルフィラ
Saudi Arabia |
89285-82000-000 |
— | ||
| replacement | |||||
|
3
|
3
89285-75F00-000 PACKING,FUEL FILLERSaudi Arabia |
89285-75F00-000 |
US $5.17 |
||
|
4
|
4
89201-82200-000
Neck, fuel filler
|
89201-82200-000 |
— | ||
|
4
|
4
89201-82220-000
Neck, fuel filler
Saudi Arabia |
89201-82220-000 |
— | ||
|
5
|
5
89241-82200-000
Hose, fuel tank filler
|
89241-82200-000 |
— | ||
|
6
|
6
89281-82200-000
CLAMP,FUEL FILLER NECK
|
89281-82200-000 |
— | ||
|
7
|
7
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
8
|
8
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
9
|
9
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
9
|
9
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
|
10
|
10
89260-82101-000 CAP ASSY,FUEL FILLER<-89260-82100 |
89260-82101-000 |
US $35.20 |
||
|
10
|
10
89260-82030-000
Cap assy, fuel tank filler
Saudi Arabia |
89260-82030-000 |
— | ||
| replacement | |||||
|
10
|
10
89260-73H00-000 CAP ASSY,FUEL FILLERSaudi Arabia |
89260-73H00-000 |
from US $19.82 |
||
|
11
|
11
09343-11026-000
Hose
|
09343-11026-000 |
— | ||
| replacement | |||||
|
11
|
11
09355-11165-600 HOSE(11X16X600) |
09355-11165-600 |
from US $8.64 |
||
|
12
|
12
09401-15402-000
クリップ
|
09401-15402-000 |
— | ||
| replacement | |||||
|
12
|
12
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
13
|
13
09400-52311-000
クランプ
|
09400-52311-000 |
— | ||
| replacement | |||||
|
13
|
13
09400-52312-000 CLAMP |
09400-52312-000 |
US $20.20 |
||
|
14
|
14
09116-05014-000 BOLT(5X20) |
09116-05014-000 |
US $1.82 |
||
|
15
|
15
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
16
|
16
89485-82000-000 CLAMP,CHECK VALVE |
89485-82000-000 |
US $2.24 |
||
|
17
|
17
89511-82000-000
Grommet, fuel hose
|
89511-82000-000 |
— | ||
|
18
|
18
09343-04072-000
Hose
|
09343-04072-000 |
— | ||
| replacements | |||||
|
18
|
18
09355-45855-600
HOSE(4.5X8.5X600)
|
09355-45855-600 |
— | ||
|
18
|
18
09355-45001-600 Hose(4.5X8.5X600) |
09355-45001-600 |
from US $10.79 |
||
|
19
|
19
09343-05237-000 Hose, valve out5.4x11.4x510 L:510->200 |
09343-05237-000 |
US $7.82 |
||
| replacements | |||||
|
19
|
19
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:510->200 |
09355-54115-600 |
from US $7.20 |
||
|
19
|
19
09359-54111-600 HOSE(5.4X11.4X600)Hose, canister & carb L:510->200 |
09359-54111-600 |
from US $22.40 |
||
|
20
|
20
09343-05044-000
Hose
L:1425->510 |
09343-05044-000 |
— | ||
| replacement | |||||
|
20
|
20
09355-54115-00B HOSE(5.4X11.4X2000)L:1425->510 |
09355-54115-00B |
US $37.17 |
||
|
20
|
20
09343-05237-000 Hose, valve out5.4x11.4x510 Saudi Arabia, L:510 |
09343-05237-000 |
US $7.82 |
||
| replacements | |||||
|
20
|
20
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum Saudi Arabia, L:510 |
09355-54115-600 |
from US $7.20 |
||
|
20
|
20
09359-54111-600 HOSE(5.4X11.4X600)Hose, canister & carb Saudi Arabia, L:510 |
09359-54111-600 |
from US $22.40 |
||
|
21
|
21
09401-08408-000
クリップ
|
09401-08408-000 |
— | ||
| replacement | |||||
|
21
|
21
09401-08409-000 CLIP |
09401-08409-000 |
from US $0.73 |
||
|
22
|
22
09401-11409-000
クリップ
|
09401-11409-000 |
— | ||
| replacements | |||||
|
22
|
22
09401-11413-000 CLIP |
09401-11413-000 |
from US $0.96 |
||
|
22
|
22
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.12 |
||
|
23
|
23
09407-22403-000 CLAMP(L:220) |
09407-22403-000 |
US $12.90 |
||
|
24
|
24
02112-05086-000
Screw
|
02112-05086-000 |
— | ||
| replacement | |||||
|
24
|
24
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
|
25
|
25
34810-82021-000
GAUGE ASSY,FUEL LEVEL
|
34810-82021-000 |
— | ||
|
26
|
26
34825-82010-000
GASKET,FUEL LEVEL GAUGE
|
34825-82010-000 |
— | ||
|
27
|
27
02112-05107-000 SCREWScrew, bracket |
02112-05107-000 |
from US $0.80 |
||
|
28
|
28
08322-21057-000
Washer
|
08322-21057-000 |
— | ||
| replacement | |||||
|
28
|
28
08322-01057-000 WASHERWasher, front hook holder |
08322-01057-000 |
from US $0.80 |
||
|
29
|
29
09168-12005-000
ガスケット,12X21X1.5
|
09168-12005-000 |
— | ||
| replacement | |||||
|
29
|
29
09168-12018-000 GASKET(12X21X2) |
09168-12018-000 |
from US $1.60 |
||
|
30
|
30
09247-12101-000 BOLT |
09247-12101-000 |
US $2.24 |
||
|
31
|
31
89461-82201-000
Pipe, fuel vapor outlet
|
89461-82201-000 |
— | ||
|
32
|
32
89481-82201-000 VESSEL,FUEL BREATHER |
89481-82201-000 |
US $9.79 |
||
|
33
|
33
09343-05313-000
Hose, vessel inlet
|
09343-05313-000 |
— | ||
| replacement | |||||
|
33
|
33
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum |
09355-54115-600 |
from US $7.20 |
||
|
34
|
34
01107-06123-000
Bolt 6x1x16
|
01107-06123-000 |
— | ||
| replacements | |||||
|
34
|
34
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
34
|
34
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
|
35
|
35
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
35
|
35
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
