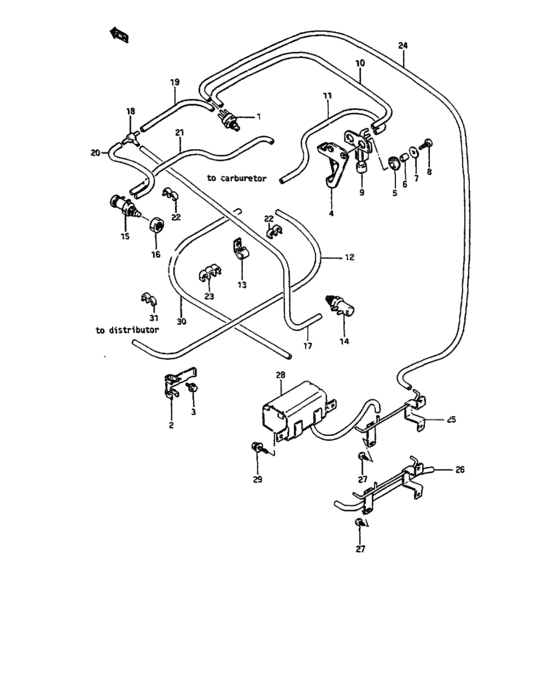

Emission control system (AT) Diagram Suzuki SPRINT
- Year
- -
- Sales region
- Pacific
- transmission
- AT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18133-82000-000 FILTER,GAS |
18133-82000-000 |
US $25.21 |
||
|
2
|
2
18432-82600-000
Clamp, modulator hose
|
18432-82600-000 |
— | ||
|
3
|
3
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
3
|
3
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
4
|
4
18451-82011-000
Mount, emission device
<-18451-82010 |
18451-82011-000 |
— | ||
|
5
|
5
09308-10004-000 GROMMET |
09308-10004-000 |
US $1.98 |
||
|
6
|
6
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $2.08 |
||
|
7
|
7
09160-06086-000
Washer, 6.5x20x
|
09160-06086-000 |
— | ||
| replacement | |||||
|
7
|
7
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
8
|
8
02112-06143-000
Screw
|
02112-06143-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
9
|
9
18550-82021-000
VALVE ASSY,3WAY SOLENOID
|
18550-82021-000 |
— | ||
|
10
|
10
09343-03096-000
ホース,#8/3.5X7.5X170
|
09343-03096-000 |
— | ||
| replacements | |||||
|
10
|
10
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
10
|
10
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
11
|
11
09343-03047-000
Hose, vacuum
|
09343-03047-000 |
— | ||
| replacements | |||||
|
11
|
11
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
11
|
11
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
12
|
12
09343-03106-000
Hose, vacuum
|
09343-03106-000 |
— | ||
| replacements | |||||
|
12
|
12
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
12
|
12
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
13
|
13
09403-09314-000
Clamp, hose
|
09403-09314-000 |
— | ||
| replacement | |||||
|
13
|
13
09403-09315-000 CLAMP |
09403-09315-000 |
US $19.10 |
||
|
14
|
14
18124-82300-000
Valve assy, tvs
|
18124-82300-000 |
— | ||
| replacement | |||||
|
14
|
14
18122-71C10-000
VALVE,BVS
|
18122-71C10-000 |
— | ||
|
15
|
15
18124-82320-000
Valve assy, tvs
|
18124-82320-000 |
— | ||
|
16
|
16
08310-22166-000
New Genuine Part
|
08310-22166-000 |
— | ||
| replacement | |||||
|
16
|
16
08310-0016A-000 NUT |
08310-0016A-000 |
US $17.30 |
||
|
17
|
17
09343-03024-000
Hose, vacuum
|
09343-03024-000 |
— | ||
| replacements | |||||
|
17
|
17
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
17
|
17
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
18
|
18
09367-04002-000 CONNECTOR |
09367-04002-000 |
US $4.80 |
||
|
19
|
19
09343-03092-000
Hose, vacuum
|
09343-03092-000 |
— | ||
| replacements | |||||
|
19
|
19
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
19
|
19
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
20
|
20
09343-03088-000
ホース,#16/3.5X7.5X65
|
09343-03088-000 |
— | ||
| replacements | |||||
|
20
|
20
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
20
|
20
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
21
|
21
09343-03096-000
ホース,#8/3.5X7.5X170
|
09343-03096-000 |
— | ||
| replacements | |||||
|
21
|
21
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
21
|
21
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
22
|
22
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
23
|
23
09408-00034-000
クリップ
|
09408-00034-000 |
— | ||
| replacement | |||||
|
23
|
23
09408-00035-000 CLIPClamp |
09408-00035-000 |
US $17.70 |
||
|
24
|
24
09343-03107-000
ホース,#23/3.5X7.5X550
|
09343-03107-000 |
— | ||
| replacements | |||||
|
24
|
24
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
24
|
24
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
25
|
25
18340-82340-000
Pipe, vacuum
GA/GL:RHD,GA:LHD |
18340-82340-000 |
— | ||
|
26
|
26
18340-82330-000
Pipe, vacuum
GL:LHD |
18340-82330-000 |
— | ||
|
27
|
27
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
27
|
27
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
27
|
27
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
28
|
28
18600-82320-000
Switch unit,a.t.m
|
18600-82320-000 |
— | ||
|
29
|
29
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
29
|
29
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
30
|
30
09343-03103-000
ホース,#15/3.5X7.5X340
W/AIR CON |
09343-03103-000 |
— | ||
| replacements | |||||
|
30
|
30
09355-35754-601
HOSE(3.5X7.5X601)
W/AIR CON |
09355-35754-601 |
— | ||
|
30
|
30
09355-35006-601 Hose(3.5X7.5X601)W/AIR CON |
09355-35006-601 |
from US $5.78 |
||
|
31
|
31
09408-00033-000 CLAMPClamp W/AIR CON |
09408-00033-000 |
from US $1.60 |
||
