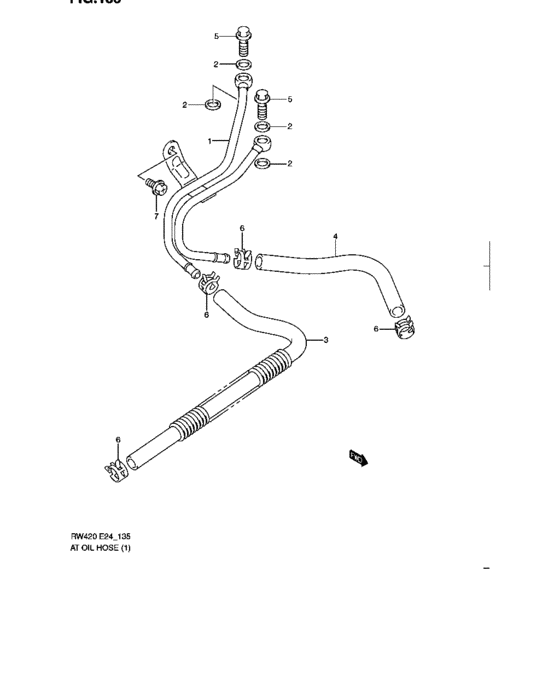

At oil hose (AT:RW415,RW416) Diagram Suzuki SX4
- Year
- -
- Sales region
- Pacific
- drive
- 4WD
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22910-79J12-000 PIPE,OIL COOLER |
22910-79J12-000 |
US $45.63 |
||
|
2
|
2
22913-59J10-000 GASKET,14X20X0.9 |
22913-59J10-000 |
from US $1.51 |
||
|
3
|
3
22931-79J10-000 HOSE,OIL COOLER INLET |
22931-79J10-000 |
US $23.55 |
||
|
4
|
4
22932-79J10-000 HOSE,OIL COOLER OUTLET |
22932-79J10-000 |
US $16.49 |
||
|
5
|
5
22935-79J10-000 BOLT,OIL PIPE UNION |
22935-79J10-000 |
US $8 |
||
|
6
|
6
09401-15410-000 CLIP |
09401-15410-000 |
from US $2.24 |
||
|
7
|
7
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
