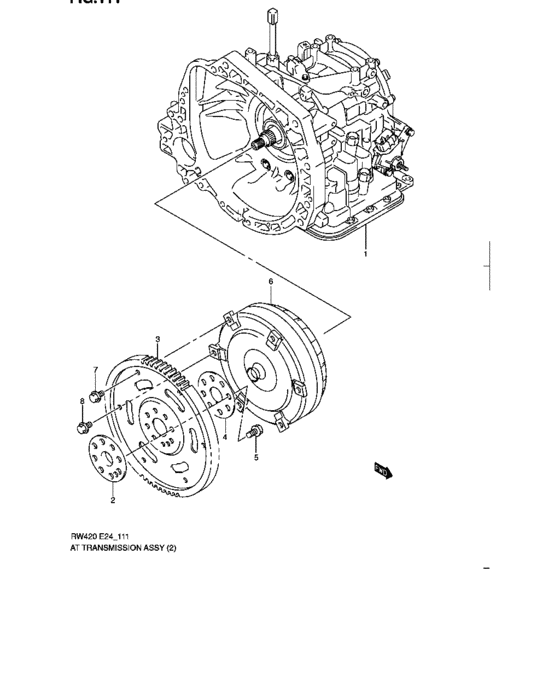

At transmission assy (AT:) Diagram Suzuki SX4
- Year
- -
- Sales region
- Pacific
- drive
- 4WD
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-79JH1-000
Transmission assy,automatic
TYPE 3:RW415:4WD |
20002-79JH1-000 |
— | ||
|
1
|
1
20002-79J70-000 T/M ASSY,AUTOMATICTYPE 3:RW416 |
20002-79J70-000 |
US $8,149.36 |
||
|
1
|
1
20002-79JJ0-000 T/M ASSY,AUTOMATICTYPE 4:RW415:4WD |
20002-79JJ0-000 |
US $9,779.92 |
||
|
1
|
1
20002-79JK0-000 T/M ASSY,AUTOMATICTYPE 4,TYPE 5:RW416:4WD |
20002-79JK0-000 |
US $8,149.36 |
||
|
2
|
2
22611-69G10-000 FLANGE,T/C DRIVE PLATE FR |
22611-69G10-000 |
US $37.17 |
||
|
3
|
3
22620-69G10-000 PLATE,TC DRIVE |
22620-69G10-000 |
US $163.20 |
||
|
4
|
4
22631-69G10-000 PLATE,TC DRIVE REAR |
22631-69G10-000 |
US $7.95 |
||
|
5
|
5
09103-10305-000 BOLT(10X18.5) |
09103-10305-000 |
US $22.40 |
||
| replacement | |||||
|
5
|
5
09100-10275-000 BOLT(10X18.5) |
09100-10275-000 |
US $1.44 |
||
|
6
|
6
22710-79J10-000 CONVERTER,TORQUERW415 |
22710-79J10-000 |
US $1,112.32 |
||
|
6
|
6
22710-79J30-000 CONVERTER,TORQUERW416 |
22710-79J30-000 |
US $925.76 |
||
|
7
|
7
09103-08516-000 BOLT(8X9.5) |
09103-08516-000 |
from US $1.12 |
||
|
8
|
8
09103-08517-000 BOLT(8X9.5) |
09103-08517-000 |
from US $3.65 |
||
