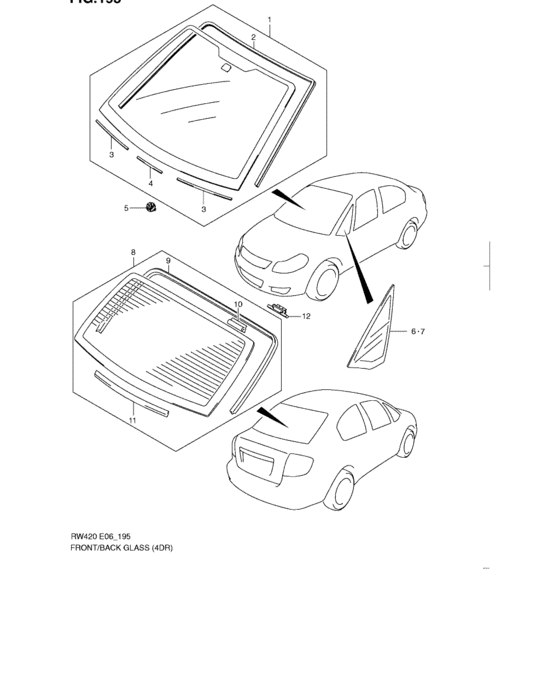

Front/back glass (4DR) Diagram Suzuki SX4
- Year
- -
- Sales region
- Africa
- drive
- 2WD
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84510-54L00-000
Glass comp,windshield
|
84510-54L00-000 |
— | ||
| replacement | |||||
|
1
|
1
84510-54L01-000 GLASS,WINDSHIELD |
84510-54L01-000 |
from US $541.80 |
||
|
2
|
2
84512-79J00-000 MOLDING,WSHLD |
84512-79J00-000 |
from US $48.21 |
||
|
3
|
3
84617-60D00-000 SPACER,WINDSHIELD GLASS |
84617-60D00-000 |
US $5.23 |
||
|
4
|
4
84618-76F00-000 SPACER,WINDSHIELD GLASS |
84618-76F00-000 |
US $3.84 |
||
|
5
|
5
84618-76G10-000 STOPPER,WINDSHIELD GLASS |
84618-76G10-000 |
US $1.76 |
||
|
6
|
6
84550-80J11-000
Glass comp,fr pillar window,r
|
84550-80J11-000 |
— | ||
| replacement | |||||
|
6
|
6
84550-80J13-000
GLASS,FR PILLAR WINDOW,R
|
84550-80J13-000 |
— | ||
|
7
|
7
84560-80J11-000
Glass comp,fr pillar window,l
|
84560-80J11-000 |
— | ||
| replacement | |||||
|
7
|
7
84560-80J13-000 GLASS,FR PILLAR WINDOW,L |
84560-80J13-000 |
US $191.36 |
||
|
8
|
8
84570-75K00-000 GLASS,BACK WINDOW |
84570-75K00-000 |
from US $464.11 |
||
|
9
|
9
84572-75K00-000 MOLDING,BACK WDO |
84572-75K00-000 |
US $33.67 |
||
|
10
|
10
84512-65J00-000 MALE,GLASS UPR FASTENER,R |
84512-65J00-000 |
from US $2.40 |
||
|
11
|
11
84617-63J00-000 SPACER,WINDSHIELD GLASS |
84617-63J00-000 |
US $6.70 |
||
|
12
|
12
84513-65J00-000 FEMALE,GLASS UPR FASTENER |
84513-65J00-000 |
from US $1.19 |
||
