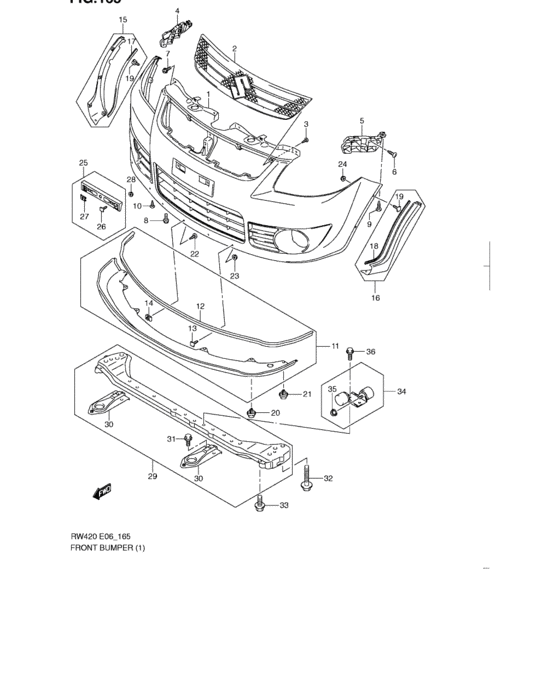

Front bumper (TYPE 2,3) Diagram Suzuki SX4
- Year
- -
- Sales region
- Africa
- drive
- 2WD
- transmission
- 5MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-80J40-799 BUMPER,FR(PRIMARY)PAINT TO MATCH |
71711-80J40-799 |
US $690.08 |
||
|
1
|
1
71711-80J40-N49 BUMPER,FR(BLACK/PRIMARY)PAINT TO MATCH |
71711-80J40-N49 |
US $707.52 |
||
|
2
|
2
71741-80J00-5PK GRILLE,RDTR |
71741-80J00-5PK |
US $109.30 |
||
|
3
|
3
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.80 |
||
|
4
|
4
71731-80J00-000 HOLDER,FR BPR SIDE,R |
71731-80J00-000 |
US $29.60 |
||
|
5
|
5
71732-80J00-000 HOLDER,FR BPR SIDE,L |
71732-80J00-000 |
US $32.80 |
||
|
6
|
6
03511-0512A-000 SCREW |
03511-0512A-000 |
from US $0.80 |
||
|
7
|
7
02162-0616A-000 SCREW |
02162-0616A-000 |
from US $3.01 |
||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
8
|
8
02162-0616A-000 SCREW |
02162-0616A-000 |
from US $3.01 |
||
| replacement | |||||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
9
|
9
09136-05057-000
Screw, fr turnsignal (5x20)
|
09136-05057-000 |
— | ||
| replacement | |||||
|
9
|
9
09136-05068-000 SCREW(5X20) |
09136-05068-000 |
from US $0.96 |
||
|
10
|
10
09136-05057-000
Screw, fr turnsignal (5x20)
|
09136-05057-000 |
— | ||
| replacement | |||||
|
10
|
10
09136-05068-000 SCREW(5X20) |
09136-05068-000 |
from US $0.96 |
||
|
11
|
11
71760-80J00-5PK EXTENSION,FR BUMPER CTR |
71760-80J00-5PK |
US $559.68 |
||
|
12
|
12
71762-80J00-5PK PROTECTOR,BUMPER EXT |
71762-80J00-5PK |
US $34.78 |
||
|
13
|
13
77225-78F00-000 BOLT,BUMPER EXT |
77225-78F00-000 |
US $1.60 |
||
|
14
|
14
09148-05047-000 NUT |
09148-05047-000 |
from US $0.96 |
||
|
15
|
15
71770-80J00-5PK EXTENSION,BPR SIDE,R |
71770-80J00-5PK |
US $149.60 |
||
|
16
|
16
71780-80J00-5PK EXTENSION,BPR SIDE,L |
71780-80J00-5PK |
US $37.90 |
||
|
17
|
17
71772-80J00-5PK PROTECTOR,BUMPER EXT |
71772-80J00-5PK |
US $16.72 |
||
|
18
|
18
71782-80J00-5PK PROTECTOR,BUMPER EXT |
71782-80J00-5PK |
US $16.72 |
||
|
19
|
19
77225-78F00-000 BOLT,BUMPER EXT |
77225-78F00-000 |
US $1.60 |
||
|
20
|
20
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.28 |
||
|
21
|
21
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.28 |
||
|
22
|
22
03541-0512A-000 SCREW |
03541-0512A-000 |
from US $0.76 |
||
|
23
|
23
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.80 |
||
|
24
|
24
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.80 |
||
|
25
|
25
71790-80J00-5PK GARNISH,FR BPR LIC |
71790-80J00-5PK |
US $47.20 |
||
|
26
|
26
77225-78F00-000 BOLT,BUMPER EXT |
77225-78F00-000 |
US $1.60 |
||
|
27
|
27
09148-06021-000 NUTNut, air cleaner |
09148-06021-000 |
from US $1.31 |
||
|
28
|
28
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.80 |
||
|
29
|
29
71100-80J01-000 CROSSMEMBER,FR LWR |
71100-80J01-000 |
US $284.24 |
||
|
30
|
30
71131-80J00-000 BRACKET,RDTR |
71131-80J00-000 |
US $23.18 |
||
|
31
|
31
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
32
|
32
09118-10058-000 BOLT(10X50) |
09118-10058-000 |
US $1.76 |
||
|
33
|
33
01551-1025A-000 Bolt |
01551-1025A-000 |
US $1.12 |
||
|
34
|
34
71150-80J00-000 BRACKET,DYNAMIC DAMPER |
71150-80J00-000 |
US $116.29 |
||
|
35
|
35
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
36
|
36
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
