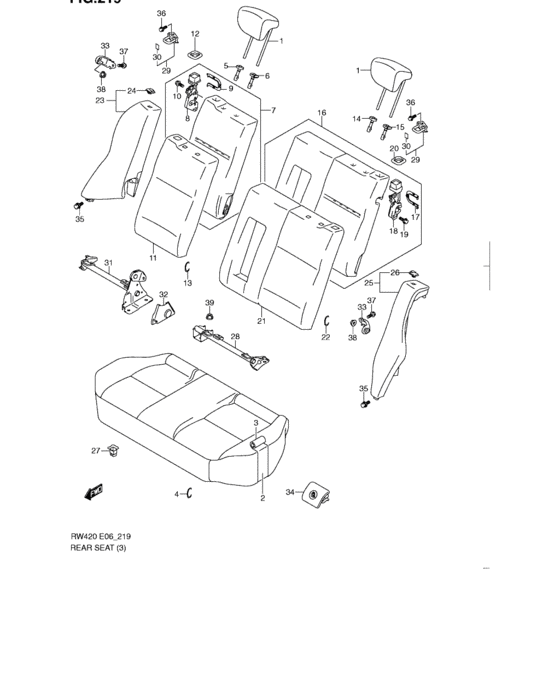

Rear seat (TYPE 4:4DR) Diagram Suzuki SX4
- Year
- -
- Sales region
- Africa
- drive
- 2WD
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86401-66J20-GFY
Headrestraint assy,rr
|
86401-66J20-GFY |
— | ||
| replacement | |||||
|
1
|
1
86401-66J20-JUC HEADRESTRAINT ASSY,RR |
86401-66J20-JUC |
US $118.86 |
||
|
2
|
2
87160-56K50-000 PAD,REAR CUSHON |
87160-56K50-000 |
US $375.36 |
||
|
3
|
3
87180-56K50-GGB
Trim comp,rr cush
|
87180-56K50-GGB |
— | ||
| replacements | |||||
|
3
|
3
87180-56K50-JUD
TRIM,RR CUSHION
|
87180-56K50-JUD |
— | ||
|
3
|
3
87180-56K51-JUD TRIM,RR CUSHION |
87180-56K51-JUD |
US $277.84 |
||
|
4
|
4
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
5
|
5
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
|
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
5
|
5
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
|
85341-63J11-P4Z |
— | ||
|
5
|
5
85341-63J12-P4Z Guide,headrestraint |
85341-63J12-P4Z |
US $7.36 |
||
|
6
|
6
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
|
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
6
|
6
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
|
85840-63J11-P4Z |
— | ||
|
6
|
6
85840-63J12-P4Z Guide Comp,headrestraint |
85840-63J12-P4Z |
US $9.12 |
||
|
7
|
7
87305-56K51-P4Z
BACK S/ASSY,RR,R
|
87305-56K51-P4Z |
— | ||
|
8
|
8
87480-63J01-P4Z LOCK ASSY,RR BACK,R |
87480-63J01-P4Z |
US $76.54 |
||
|
9
|
9
87487-56K50-000 COVER,RR BACK PANEL |
87487-56K50-000 |
US $4.38 |
||
|
10
|
10
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
11
|
11
87380-56K50-GGB
Trim comp,rr back,r
|
87380-56K50-GGB |
— | ||
| replacement | |||||
|
11
|
11
87380-56K51-JUD TRIM,RR BACK,R |
87380-56K51-JUD |
US $159.71 |
||
|
12
|
12
87482-63J00-P4Z BEZEL,LOCK BUTTON |
87482-63J00-P4Z |
US $5.89 |
||
|
13
|
13
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
14
|
14
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
|
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
14
|
14
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
|
85341-63J11-P4Z |
— | ||
|
14
|
14
85341-63J12-P4Z Guide,headrestraint |
85341-63J12-P4Z |
US $7.36 |
||
|
15
|
15
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
|
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
15
|
15
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
|
85840-63J11-P4Z |
— | ||
|
15
|
15
85840-63J12-P4Z Guide Comp,headrestraint |
85840-63J12-P4Z |
US $9.12 |
||
|
16
|
16
87306-56K61-P4Z BACK S/ASSY,RR,L |
87306-56K61-P4Z |
US $358.80 |
||
|
17
|
17
87487-56K50-000 COVER,RR BACK PANEL |
87487-56K50-000 |
US $4.38 |
||
|
18
|
18
87980-63J01-P4Z LOCK ASSY,RR BACK,L |
87980-63J01-P4Z |
US $76.54 |
||
|
19
|
19
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
20
|
20
87482-63J00-P4Z BEZEL,LOCK BUTTON |
87482-63J00-P4Z |
US $5.89 |
||
|
21
|
21
87880-56K60-GGB
Trim comp,rr back,l
|
87880-56K60-GGB |
— | ||
| replacement | |||||
|
21
|
21
87880-56K61-JUD TRIM,RR BACK,L |
87880-56K61-JUD |
US $288.88 |
||
|
22
|
22
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
23
|
23
88301-56K61-GGC
Back assy,rr seat side,r
|
88301-56K61-GGC |
— | ||
| replacements | |||||
|
23
|
23
88301-56K61-JUE
BACK ASSY,RR SEAT,R
|
88301-56K61-JUE |
— | ||
|
23
|
23
88301-56K62-JUE BACK ASSY,RR SEAT,R |
88301-56K62-JUE |
US $189.52 |
||
|
24
|
24
87341-56K50-P4Z HOLDER,SEAT BELT |
87341-56K50-P4Z |
US $6.04 |
||
|
25
|
25
88302-56K61-GGC
Back assy,rr seat side,l
|
88302-56K61-GGC |
— | ||
| replacements | |||||
|
25
|
25
88302-56K61-JUE
BACK ASSY,RR SEAT,L
|
88302-56K61-JUE |
— | ||
|
25
|
25
88302-56K62-JUE BACK ASSY,RR SEAT,L |
88302-56K62-JUE |
US $189.52 |
||
|
26
|
26
87341-56K50-P4Z HOLDER,SEAT BELT |
87341-56K50-P4Z |
US $6.04 |
||
|
27
|
27
87460-76G10-000
HOOK,RR SEAT CUSH
|
87460-76G10-000 |
— | ||
| replacement | |||||
|
27
|
27
87460-76G11-000 HOOKRR SEAT CUSH |
87460-76G11-000 |
from US $1.92 |
||
|
28
|
28
87760-56K51-000 BRACKET,CHILD ANCHORAGE,L |
87760-56K51-000 |
US $62.56 |
||
|
29
|
29
87870-56K50-000 STRIKER,RR BACK |
87870-56K50-000 |
US $29.07 |
||
|
30
|
30
87873-56K50-000 PROTECTOR |
87873-56K50-000 |
from US $4.64 |
||
|
31
|
31
87950-56K51-000 HINGE,RR SEAT CTR |
87950-56K51-000 |
US $88.32 |
||
|
32
|
32
87991-56K50-P4Z COVER,RR CENTER HINGE |
87991-56K50-P4Z |
US $12.29 |
||
|
33
|
33
87910-56K00-000 HINGE,RR SIDE |
87910-56K00-000 |
US $11.33 |
||
|
34
|
34
87992-56K60-P4Z COVER,RR CENTER HINGE |
87992-56K60-P4Z |
US $10.67 |
||
|
35
|
35
09118-06045-000 BOLT(6X20)Bolt (6x20) |
09118-06045-000 |
US $14.40 |
||
|
36
|
36
01551-0820A-000 BOLT |
01551-0820A-000 |
from US $0.96 |
||
|
37
|
37
01551-1025A-000 Bolt |
01551-1025A-000 |
US $1.12 |
||
|
38
|
38
08313-2010A-000 NUT |
08313-2010A-000 |
US $15.50 |
||
|
39
|
39
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
