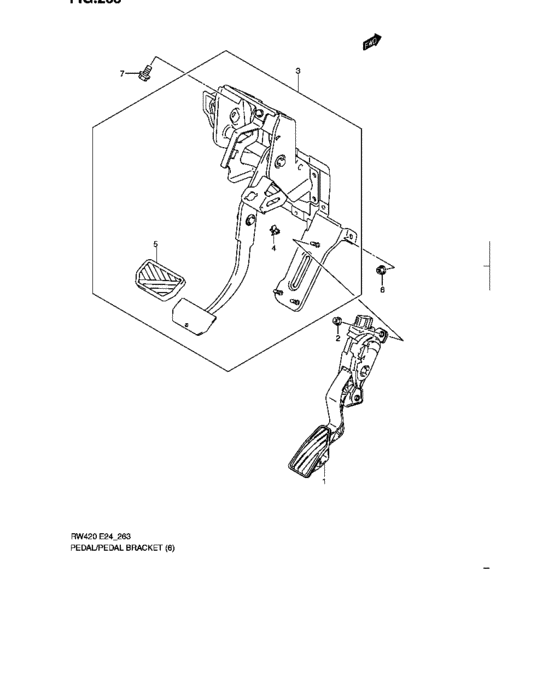

Pedal/pedal bracket (RHD:AT,CVT) Diagram Suzuki SX4
- Year
- -
- Sales region
- Pacific
- drive
- 4WD
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49400-79J40-000
Pedal assy,accelerator
RW415,RW416 |
49400-79J40-000 |
— | ||
| replacement | |||||
|
1
|
1
49400-79J41-000 PEDAL ASSY,ACCELERATORRW415,RW416 |
49400-79J41-000 |
US $534.35 |
||
|
1
|
1
49400-79J10-000
Pedal assy,accelerator
RW420 |
49400-79J10-000 |
— | ||
| replacement | |||||
|
1
|
1
49400-79J11-000 PEDAL ASSY,ACCELERATORRW420 |
49400-79J11-000 |
US $268.64 |
||
|
2
|
2
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
3
|
3
49600-80J12-000 PEDAL ASSY,BRAKE&CLUTCH |
49600-80J12-000 |
US $161.55 |
||
|
4
|
4
75411-76G00-000 CLAMP,CABLE |
75411-76G00-000 |
US $2.39 |
||
|
5
|
5
49751-58J10-000 PAD,PEDAL |
49751-58J10-000 |
from US $4.91 |
||
|
6
|
6
09159-08127-000 NUT |
09159-08127-000 |
US $9.90 |
||
|
7
|
7
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
