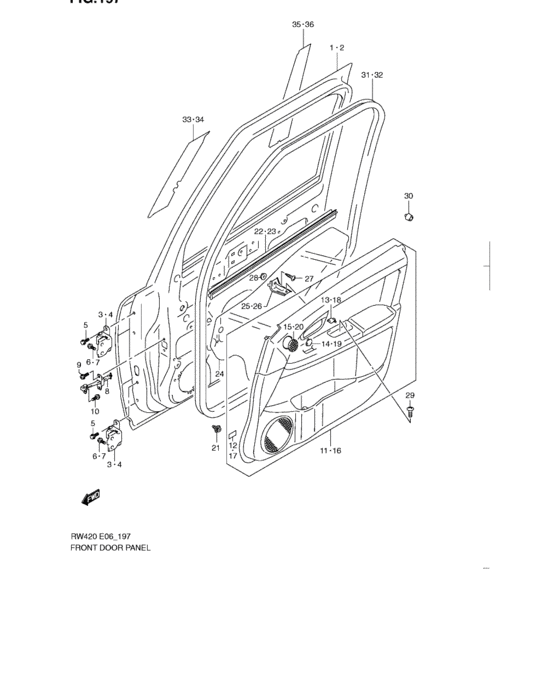

Front door panel (FRONT DOOR PANEL) Diagram Suzuki SX4
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- 5MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-80820-000 PANEL ASSY,FRONT DOOR,R |
68001-80820-000 |
from US $566.78 |
||
|
2
|
2
68002-80820-000 PANEL ASSY,FRONT DOOR,L |
68002-80820-000 |
from US $571.21 |
||
|
3
|
3
69310-63J00-000 HINGE,FR DR NO.1UPPER RH,LOWER LH |
69310-63J00-000 |
US $38.64 |
||
|
4
|
4
69320-63J00-000 HINGE,FR DR NO.2UPPER LH,LOWER RH |
69320-63J00-000 |
US $38.64 |
||
|
5
|
5
09103-08389-000 BOLT(8X24) |
09103-08389-000 |
US $17.30 |
||
|
6
|
6
09113-08001-000 BOLT(8X20) |
09113-08001-000 |
US $14.40 |
||
|
7
|
7
01551-0820A-000 BOLT |
01551-0820A-000 |
from US $0.96 |
||
|
8
|
8
81810-54G03-000
Stop comp,side door open
|
81810-54G03-000 |
— | ||
| replacement | |||||
|
8
|
8
81810-54G04-000 STOP,SIDE DOOR OPEN |
81810-54G04-000 |
US $33.60 |
||
|
9
|
9
09122-86004-000 SCREW(6X20) |
09122-86004-000 |
US $11.80 |
||
|
10
|
10
09112-08015-000 BOLT(8X25) |
09112-08015-000 |
US $19.50 |
||
|
11
|
11
83710-80JL0-CJA
Trim comp,front door,r
TYPE 2,TYPE 3 |
83710-80JL0-CJA |
— | ||
| replacements | |||||
|
11
|
11
83710-80JL2-CJA
TRIM,FR DR,R
TYPE 2,TYPE 3 |
83710-80JL2-CJA |
— | ||
|
11
|
11
83710-80JL3-CJA Trim,fr Dr,rTYPE 2,TYPE 3 |
83710-80JL3-CJA |
US $344.08 |
||
|
11
|
11
83710-54LL0-GJG
Trim comp,front door,r
TYPE 4 |
83710-54LL0-GJG |
— | ||
| replacement | |||||
|
11
|
11
83710-54LL2-GJG TRIM,FR DR,RTYPE 4 |
83710-54LL2-GJG |
US $390.08 |
||
|
12
|
12
47451-38A01-000 CUSHION,TOOL HOLDERCushion, no.2 |
47451-38A01-000 |
from US $2.39 |
||
|
13
|
13
83752-80J00-5PK CAP,SIDE DR INSIDE CASE |
83752-80J00-5PK |
US $4.86 |
||
|
14
|
14
83754-80J00-P4Z CAP,INSIDE HDL BEZEL |
83754-80J00-P4Z |
US $5.37 |
||
|
15
|
15
83736-80J00-P4Z GRILLE,RR DR TWEETER |
83736-80J00-P4Z |
US $4.45 |
||
|
16
|
16
83720-80JQ0-CJA
Trim comp,front door,l
TYPE 2,TYPE 3 |
83720-80JQ0-CJA |
— | ||
| replacements | |||||
|
16
|
16
83720-80JQ1-CJA
TRIM,FRONT DOOR,L
TYPE 2,TYPE 3 |
83720-80JQ1-CJA |
— | ||
|
16
|
16
83720-80JQ3-CJA Trim,fr Dr,lTYPE 2,TYPE 3 |
83720-80JQ3-CJA |
US $344.08 |
||
|
16
|
16
83720-54LQ0-GJG
Trim comp,front door,l
TYPE 4 |
83720-54LQ0-GJG |
— | ||
| replacements | |||||
|
16
|
16
83720-54LQ2-GJG
TRIM,FR DR,L
TYPE 4 |
83720-54LQ2-GJG |
— | ||
|
16
|
16
83720-54LQ3-GJG Trim,fr Dr,lTYPE 4 |
83720-54LQ3-GJG |
US $390.08 |
||
|
17
|
17
47451-38A01-000 CUSHION,TOOL HOLDERCushion, no.2 |
47451-38A01-000 |
from US $2.39 |
||
|
18
|
18
83752-80J00-5PK CAP,SIDE DR INSIDE CASE |
83752-80J00-5PK |
US $4.86 |
||
|
19
|
19
83754-80J00-P4Z CAP,INSIDE HDL BEZEL |
83754-80J00-P4Z |
US $5.37 |
||
|
20
|
20
83736-80J00-P4Z GRILLE,RR DR TWEETER |
83736-80J00-P4Z |
US $4.45 |
||
|
21
|
21
09409-10312-000 CLIP |
09409-10312-000 |
from US $1.13 |
||
|
22
|
22
83851-80J00-000 WEATHERSTRIP,FR DR INR,RTYPE 2 |
83851-80J00-000 |
US $67.20 |
||
|
22
|
22
83851-80J10-000 WEATHERSTRIP,DR INR,RTYPE 3,TYPE 4 |
83851-80J10-000 |
US $64.60 |
||
|
23
|
23
83861-80J00-000 WEATHERSTRIP,FR DR INR,LTYPE 2 |
83861-80J00-000 |
from US $27.86 |
||
|
23
|
23
83861-80J10-000 WEATHERSTRIP,DR INR,LTYPE 3,TYPE 4 |
83861-80J10-000 |
US $64.60 |
||
|
24
|
24
83911-80J00-000 COVER,FR DR SEALING |
83911-80J00-000 |
US $5.67 |
||
|
25
|
25
83751-75HA0-000 BRACKET,DR TRIM,R |
83751-75HA0-000 |
US $3.97 |
||
|
26
|
26
83756-75HA0-000 BRACKET,DR TRIM,L |
83756-75HA0-000 |
US $3.97 |
||
|
27
|
27
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
28
|
28
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
29
|
29
09132-05058-000 SCREW(5X12) |
09132-05058-000 |
US $12.50 |
||
|
30
|
30
82711-65J00-000 CUSHION |
82711-65J00-000 |
from US $1.51 |
||
|
31
|
31
84641-80J00-000 WEATHERSTRIP,FR DR OPNG,R |
84641-80J00-000 |
US $164.80 |
||
|
32
|
32
84651-80J00-000 WEATHERSTRIP,FR DR OPNG,L |
84651-80J00-000 |
US $87.22 |
||
|
33
|
33
83921-80J00-0CB TAPE,FR DOOR OUTER FR,RBODY COLOR:ZFM,ZFN,ZJP,ZJR,,ZY4,Z2S,Z7T,Z9T,ZMT,ZMU,ZMW,,ZMZ,ZNA,ZNB |
83921-80J00-0CB |
from US $14.24 |
||
|
34
|
34
83922-80J00-0CB TAPE,FR DOOR OUTER FR,LBODY COLOR:ZFM,ZFN,ZJP,ZJR,,ZY4,Z2S,Z7T,Z9T,ZMT,ZMU,ZMW,,ZMZ,ZNA,ZNB |
83922-80J00-0CB |
from US $14.83 |
||
|
35
|
35
83923-80J00-0CB TAPE,FR DOOR OUTER RR,RBODY COLOR:ZFM,ZFN,ZJP,ZJR,,ZY4,Z2S,Z7T,Z9T,ZMT,ZMU,ZMW,,ZMZ,ZNA,ZNB |
83923-80J00-0CB |
from US $24.68 |
||
|
36
|
36
83924-80J00-0CB TAPE,FR DOOR OUTER RR,LBODY COLOR:ZFM,ZFN,ZJP,ZJR,,ZY4,Z2S,Z7T,Z9T,ZMT,ZMU,ZMW,,ZMZ,ZNA,ZNB |
83924-80J00-0CB |
US $61.60 |
||
