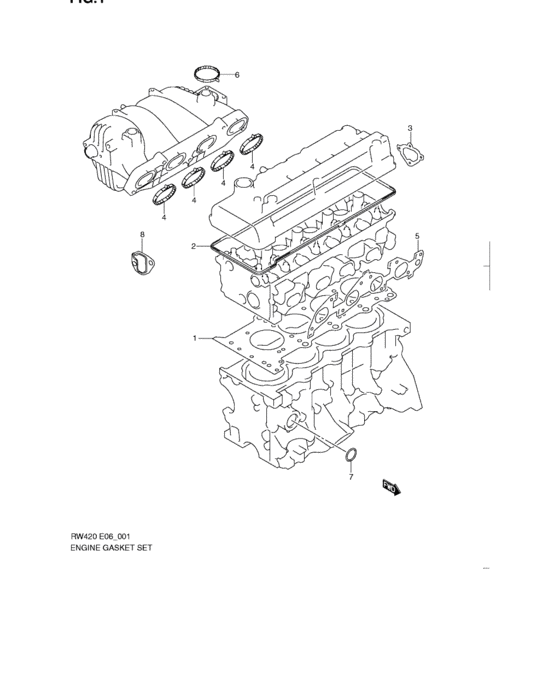

Engine gasket set (J20A) Diagram Suzuki SX4
- Year
- -
- Sales region
- Africa
- drive
- 4WD
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11401-80870-000 GASKET SET,ENGINE |
11401-80870-000 |
US $172.96 |
||
|
2
|
2
11141-77E02-000 GASKET, CYLINDER HEAD |
11141-77E02-000 |
US $169.60 |
||
|
3
|
3
11189-65J00-000 GASKET,CYL HEAD COVER |
11189-65J00-000 |
US $39.52 |
||
|
4
|
4
17579-77EA0-000 GASKET,WTR OUTLET CAP |
17579-77EA0-000 |
US $11.20 |
||
|
5
|
5
13119-80J00-000 GASKET,INTK MANF |
13119-80J00-000 |
US $12.80 |
||
|
6
|
6
14140-65D02-000 GASKET,EXH MANF |
14140-65D02-000 |
US $67.20 |
||
|
7
|
7
13421-80J00-000 GASKET,THROTTLE BODY |
13421-80J00-000 |
US $8.91 |
||
|
8
|
8
17611-65J00-000 O-RING,WATER PUMP |
17611-65J00-000 |
US $19.60 |
||
|
9
|
9
12835-77E00-000 GASKET,TENSIONER ADJ,NO.2 |
12835-77E00-000 |
US $2.56 |
