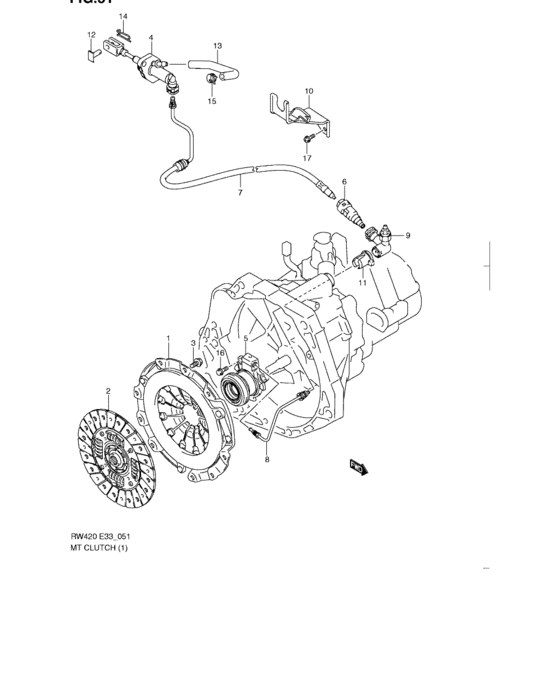

Mt clutch (5MT) Diagram Suzuki SX4
- Year
- -
- Sales region
- Canada
- drive
- AWD
- transmission
- MT
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22400-80800-000
Disc & cover set,clutch
07 MODEL |
22400-80800-000 |
— | ||
| replacement | |||||
|
1
|
1
22400-80801-000
DISC&COVER SET,CLUTCH
07 MODEL |
22400-80801-000 |
— | ||
|
1
|
1
22400-80J01-000
Disc comp,clutch
08 MODEL,09 MODEL |
22400-80J01-000 |
— | ||
| replacement | |||||
|
1
|
1
22400-80J02-000
DISC,CLUTCH
08 MODEL,09 MODEL |
22400-80J02-000 |
— | ||
|
2
|
2
22100-80J02-000
COVER ASSY,CLUTCH
08 MODEL,09 MODEL |
22100-80J02-000 |
— | ||
|
3
|
3
09117-08096-000 BOLT(8X16) |
09117-08096-000 |
from US $1.28 |
||
|
4
|
4
23810-79J01-000
CYLINDER ASSY,CLUTCH MASTER
|
23810-79J01-000 |
— | ||
|
5
|
5
23820-79J00-000 CYLINDER ASSY,CLUTCH OPERATING |
23820-79J00-000 |
from US $79.20 |
||
|
6
|
6
23830-79JC0-000
DAMPER,CLUTCH OIL
|
23830-79JC0-000 |
— | ||
|
7
|
7
23830-79J00-000
Pipe comp,clutch oil lh
|
23830-79J00-000 |
— | ||
| replacement | |||||
|
7
|
7
23830-79J01-000 PIPE,CLUTCH OIL,L |
23830-79J01-000 |
US $59.47 |
||
|
8
|
8
23840-79J00-000 PIPE,CLUTCH OIL HOUSING |
23840-79J00-000 |
US $23.29 |
||
|
9
|
9
23856-79J00-000 JOINT,CLUTCH OIL |
23856-79J00-000 |
US $33.21 |
||
|
10
|
10
23870-79J01-000 BRACKET,CLUTCH OIL HOSE |
23870-79J01-000 |
US $9.38 |
||
|
11
|
11
23874-64J00-000 SLEEVE,CLUTCH PIPE JOINT |
23874-64J00-000 |
from US $1.85 |
||
|
12
|
12
23875-79J00-000 PIN,CLUTCH MASTER CYL |
23875-79J00-000 |
US $4.71 |
||
|
13
|
13
23881-80J00-000 HOSE,CLUTCH RESERVOIR |
23881-80J00-000 |
US $10.05 |
||
|
14
|
14
09385-08004-000 PIN,SNAP |
09385-08004-000 |
from US $1.28 |
||
|
15
|
15
09401-12405-000 CLIP |
09401-12405-000 |
from US $1.60 |
||
|
16
|
16
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
17
|
17
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
