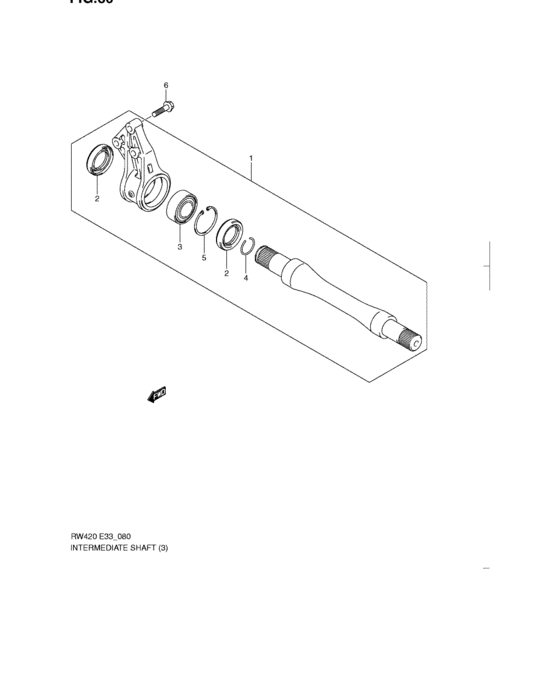

Intermediate shaft (FWD:AT) Diagram Suzuki SX4
- Year
- -
- Sales region
- Canada
- drive
- FWD
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27800-59J12-000 SHAFT ASSY,DRIVE INTERMEDIATE |
27800-59J12-000 |
US $560 |
||
|
2
|
2
27841-64G00-000 SEAL,DRIVE INTERMEDIATE |
27841-64G00-000 |
from US $10.19 |
||
|
3
|
3
09262-28030-000
Bearing,28x58x16
|
09262-28030-000 |
— | ||
| replacement | |||||
|
3
|
3
27831-68L10-000 BEARING,DRIVE INTERMEDIATE |
27831-68L10-000 |
from US $29.61 |
||
|
4
|
4
09381-25002-000 RING,SNAP07 MODEL,08 MODEL |
09381-25002-000 |
from US $1.85 |
||
|
4
|
4
09381-25006-000 RING,SNAP09 MODEL |
09381-25006-000 |
US $13.20 |
||
|
5
|
5
08331-4158A-000 CIRCLIP |
08331-4158A-000 |
from US $2.56 |
||
|
6
|
6
01550-1040A-000 BOLT |
01550-1040A-000 |
from US $1.12 |
||
