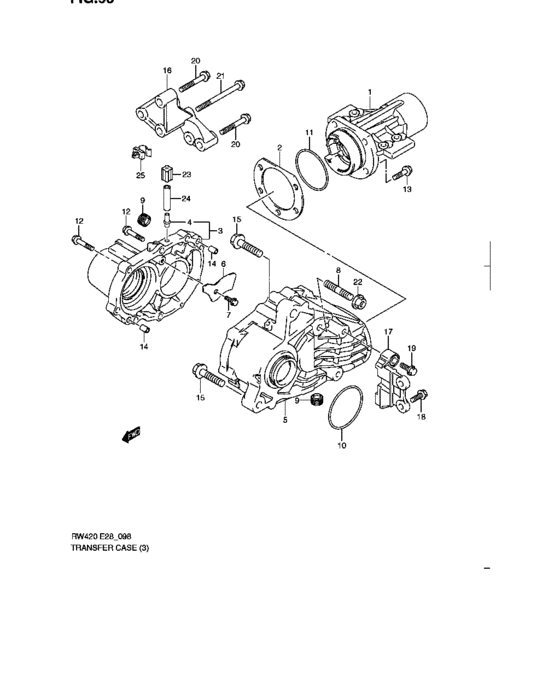

Transfer case (AWD:AT) Diagram Suzuki SX4
- Year
- -
- Sales region
- Canada
- drive
- AWD
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29271-80J30-000 RETAINER,T/F OUTPUT |
29271-80J30-000 |
US $143.89 |
||
|
2
|
2
29261-80J00-030 SHIM,T/F RETAINER T:0.30 |
29261-80J00-030 |
US $11.33 |
||
|
2
|
2
29261-80J00-185 SHIM,T/F RETAINER T:1.85 |
29261-80J00-185 |
US $13.69 |
||
|
2
|
2
29261-80J00-188 SHIM,T/F RETAINER T:1.88 |
29261-80J00-188 |
US $13.69 |
||
|
2
|
2
29261-80J00-191 SHIM,T/F RETAINER T:1.91 |
29261-80J00-191 |
US $13.69 |
||
|
2
|
2
29261-80J00-194 SHIM,T/F RETAINER T:1.94 |
29261-80J00-194 |
US $13.69 |
||
|
2
|
2
29261-80J00-197 SHIM,T/F RETAINER T:1.97 |
29261-80J00-197 |
US $16.45 |
||
|
2
|
2
29261-80J00-200 SHIM,T/F RETAINER T:2.00 |
29261-80J00-200 |
US $13.69 |
||
|
2
|
2
29261-80J00-203 SHIM,T/F RETAINER T:2.03 |
29261-80J00-203 |
US $16.45 |
||
|
2
|
2
29261-80J00-206 SHIM,T/F RETAINER T:2.06 |
29261-80J00-206 |
US $13.69 |
||
|
2
|
2
29261-80J00-209 SHIM,T/F RETAINER T:2.09 |
29261-80J00-209 |
US $13.69 |
||
|
2
|
2
29261-80J00-212 SHIM,T/F RETAINER T:2.12 |
29261-80J00-212 |
US $13.69 |
||
|
2
|
2
29261-80J00-215 SHIM,T/F RETAINER T:2.15 |
29261-80J00-215 |
US $13.69 |
||
|
3
|
3
29520-80J00-000 CASE,T/F,R |
29520-80J00-000 |
US $209.76 |
||
|
4
|
4
09364-08004-000 UNION |
09364-08004-000 |
US $14.40 |
||
|
5
|
5
29510-80J30-000 CASE ASSY,T/F LEFT |
29510-80J30-000 |
US $246.56 |
||
|
6
|
6
29522-80J00-000 PLATE,T/F RIGHT CASE OIL |
29522-80J00-000 |
US $2.13 |
||
|
7
|
7
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $1.28 |
||
|
8
|
8
09108-12015-000 BOLT,STUD |
09108-12015-000 |
US $39 |
||
|
9
|
9
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
9
|
9
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
10
|
10
09280-54001-000 O RING(D:2.4,ID:52.6) |
09280-54001-000 |
from US $2.13 |
||
|
11
|
11
09280-76008-000 O RING(D:3.1,ID:74)O ring, rr final housing |
09280-76008-000 |
from US $5.15 |
||
|
12
|
12
01550-0840A-000 BOLT |
01550-0840A-000 |
from US $1.12 |
||
|
13
|
13
01550-1030A-000 BOLT |
01550-1030A-000 |
from US $1.12 |
||
|
14
|
14
04211-09169-000 PIN |
04211-09169-000 |
from US $0.91 |
||
|
15
|
15
01550-1255A-000 Bolt |
01550-1255A-000 |
US $21.70 |
||
|
16
|
16
24792-80J30-000 STIFFENER,ENG&T/F |
24792-80J30-000 |
US $130.40 |
||
|
17
|
17
29531-80J30-000
STIFFENER,T/M&T/F
|
29531-80J30-000 |
— | ||
|
18
|
18
01550-1030A-000 BOLT |
01550-1030A-000 |
from US $1.12 |
||
|
19
|
19
01550-1040A-000 BOLT |
01550-1040A-000 |
from US $1.12 |
||
|
20
|
20
01550-1045A-000 Bolt |
01550-1045A-000 |
US $19.50 |
||
|
21
|
21
01550-1090A-000 Bolt |
01550-1090A-000 |
US $24.70 |
||
|
22
|
22
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
23
|
23
27991-65D01-000 PLUG,BREATHER |
27991-65D01-000 |
from US $1.92 |
||
|
24
|
24
09352-70113-600
HOSE(7X11X600)
L:600>220 |
09352-70113-600 |
— | ||
| replacement | |||||
|
24
|
24
09352-70119-600 Hose(7X11X600)L:600>220 |
09352-70119-600 |
from US $4.64 |
||
|
25
|
25
09403-11314-000 CLAMP |
09403-11314-000 |
from US $5.20 |
||
