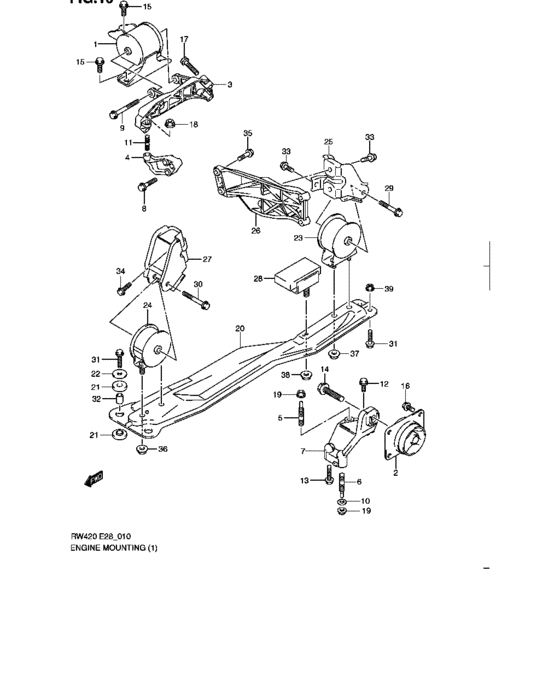

Engine mounting (J20A:FWD:MT) Diagram Suzuki SX4
- Year
- -
- Sales region
- Canada
- drive
- FWD
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-80J00-000 MOUNTING,ENG,R |
11610-80J00-000 |
from US $136.49 |
||
|
2
|
2
11620-80J00-000 MOUNTING,ENG,L |
11620-80J00-000 |
US $200 |
||
|
3
|
3
11641-80J00-000 BRACKET,ENG MTG NO.1,R |
11641-80J00-000 |
US $85.01 |
||
|
4
|
4
11642-80J00-000 BRACKET,ENG MTG NO.2,R |
11642-80J00-000 |
US $49.68 |
||
|
5
|
5
11653-79J50-000 BOLT,ENG,L MTG BRKT STUD |
11653-79J50-000 |
US $3.53 |
||
|
6
|
6
11653-80JA0-000 BOLT,ENG,L MTG BRKT STUD |
11653-80JA0-000 |
US $5.41 |
||
|
7
|
7
11671-79J00-000 BRACKET,ENG MTG,L |
11671-79J00-000 |
US $70.66 |
||
|
8
|
8
09103-10294-000 BOLT(10X45) |
09103-10294-000 |
US $1.96 |
||
|
9
|
9
09103-10322-000 BOLT(10X125) |
09103-10322-000 |
US $8.48 |
||
|
10
|
10
09160-10093-000 WASHER(10.5X24X2.3) |
09160-10093-000 |
from US $1.35 |
||
|
11
|
11
01411-1025A-000 BOLT,STUD |
01411-1025A-000 |
US $1.60 |
||
|
12
|
12
01550-1035A-000 BOLTBolt, fr fork upper |
01550-1035A-000 |
from US $5.68 |
||
|
13
|
13
01550-1045A-000 Bolt |
01550-1045A-000 |
US $19.50 |
||
|
14
|
14
01550-1245A-000 BOLT |
01550-1245A-000 |
US $1.44 |
||
|
15
|
15
01551-1025A-000 Bolt |
01551-1025A-000 |
US $1.12 |
||
|
16
|
16
01551-1025A-000 Bolt |
01551-1025A-000 |
US $1.12 |
||
|
17
|
17
01551-1050A-000 Bolt |
01551-1050A-000 |
from US $1.28 |
||
|
18
|
18
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
19
|
19
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
20
|
20
11630-79J00-000 MEMBER,MTG |
11630-79J00-000 |
US $165.68 |
||
|
21
|
21
11684-80J00-000 CUSHION,MTG MEMBER |
11684-80J00-000 |
US $7.68 |
||
|
22
|
22
11685-79J00-000 WASHER |
11685-79J00-000 |
US $1.60 |
||
|
23
|
23
11710-80J00-000 MOUNTING,ENG RR |
11710-80J00-000 |
US $64.19 |
||
|
24
|
24
11720-80J10-000
MOUNTING,ENG FR
4DR |
11720-80J10-000 |
— | ||
|
24
|
24
11720-80J00-000 MOUNTING,ENG FR5DR |
11720-80J00-000 |
from US $64.24 |
||
|
25
|
25
11740-80J00-000 BRACKET,ENG RR MTG NO.1 |
11740-80J00-000 |
US $27.78 |
||
|
26
|
26
11751-80J00-000 BRACKET,ENG RR MTG NO.2 |
11751-80J00-000 |
US $69.18 |
||
|
27
|
27
11761-80J00-000 BRACKET,ENG FR MTG |
11761-80J00-000 |
US $57.60 |
||
|
28
|
28
11915-80J00-000 DAMPER,DYNAMIC |
11915-80J00-000 |
US $57.04 |
||
|
29
|
29
09103-10337-000 BOLT(10X85) |
09103-10337-000 |
from US $2.90 |
||
|
30
|
30
09103-10341-000 BOLT(10X80) |
09103-10341-000 |
US $2.56 |
||
|
31
|
31
09103-10401-000 BOLT(10X40) |
09103-10401-000 |
US $2.24 |
||
|
32
|
32
09180-10302-000 SPACER(10.2X16X20) |
09180-10302-000 |
US $2.08 |
||
|
33
|
33
01550-1025A-000 BOLTBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
34
|
34
01550-1025A-000 BOLTBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
35
|
35
01550-1035A-000 BOLTBolt, fr fork upper |
01550-1035A-000 |
from US $5.68 |
||
|
36
|
36
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
37
|
37
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
38
|
38
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
39
|
39
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
