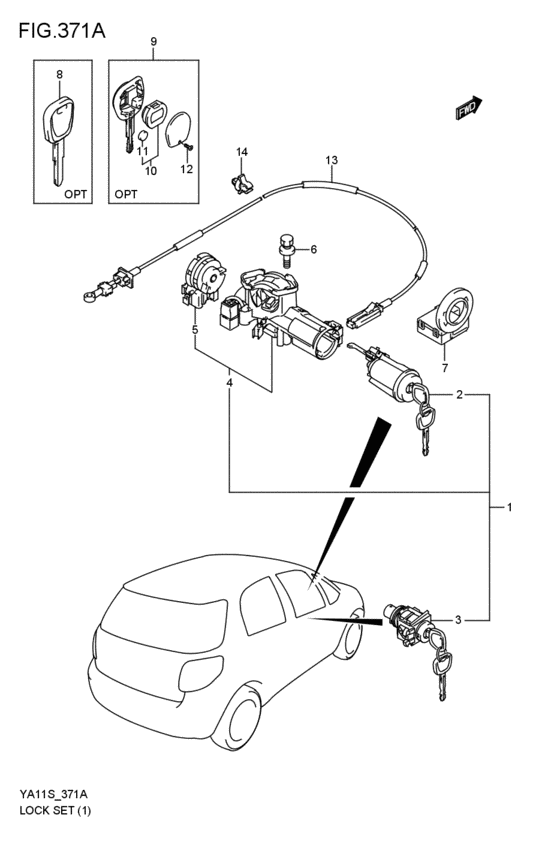

lock set (5DR:E; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37107-80840-000
ロックセット
5DR:E; 2006-05-01~ |
37107-80840-000 |
— | ||
|
2
|
2
37106-63890-000 LOCK ASSY,STEERING5DR:E; 2006-05-01~ |
37106-63890-000 |
US $172.22 |
||
|
3
|
3
82270-80810-000 CYLINDER,FR DR LATCH,R5DR:E; 2006-05-01~ |
82270-80810-000 |
US $51.15 |
||
|
4
|
4
37101-62J20-000 BODY,STEERING LOCK5DR:E; 2006-05-01~ |
37101-62J20-000 |
US $110.40 |
||
|
5
|
5
37111-58J00-000 Ignition switch5DR:E; 2006-05-01~ |
37111-58J00-000 |
from US $45.47 |
||
|
6
|
6
37152-84G00-000 BOLT, STRG LOCK5DR:E; 2006-05-01~ |
37152-84G00-000 |
from US $2.98 |
||
|
7
|
7
33970-65J00-000 CONTROLLER ASSY,IMM W/ILLUMIキー イルミネーション; 5DR:E; 2006-05-01~ |
33970-65J00-000 |
US $268.64 |
||
|
8
|
8
37145-57J10-000 KEY,BLANK IMMOBILIZERオプシヨン; 5DR:E; 2006-05-01~ |
37145-57J10-000 |
US $41.95 |
||
|
9
|
9
37145-55J50-000 KEY,BLANK IMM/KEYLESSオプシヨン; 5DR:E; 2006-05-01~ |
37145-55J50-000 |
US $278.40 |
||
|
10
|
10
37182-62J00-000 SWITCH ASSY,TRANSMITTER5DR:E; 2006-05-01~ |
37182-62J00-000 |
US $100.46 |
||
|
11
|
11
37185-62J00-000
バッテリ,リチユーム,CR1620
5DR:E; 2006-05-01~ |
37185-62J00-000 |
— | ||
|
12
|
12
37186-81A00-000 SCREW5DR:E; 2006-05-01~ |
37186-81A00-000 |
US $1.60 |
||
|
13
|
13
28551-79J10-000 CABLE,KEY INTER LOCK5DR:E; 2006-05-01~ |
28551-79J10-000 |
US $43.06 |
||
|
14
|
14
75411-76G00-000 CLAMP,CABLE5DR:E; 2006-05-01~ |
75411-76G00-000 |
US $2.39 |
