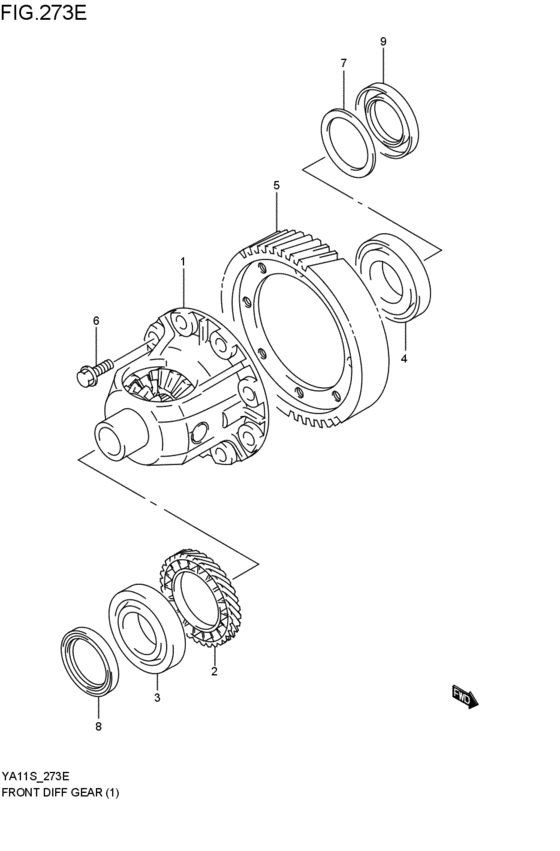

フロントデファレンシャルギヤ (M15A:2WD; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27310-55GT0-000 GEAR SET,DIFFM15A:2WD; 2006-05-01~ |
27310-55GT0-000 |
US $375.36 |
||
|
2
|
2
26121-79C10-000 GEAR,SPDOM DRIVEM15A:2WD; 2006-05-01~ |
26121-79C10-000 |
US $14.24 |
||
|
3
|
3
27481-79J10-000 BEARING ASSY,DIFF SIDE,RM15A:2WD; 2006-05-01~ |
27481-79J10-000 |
US $50.42 |
||
|
4
|
4
27485-68J10-000 BEARING ASSY,DIFF SIDE,LM15A:2WD; 2006-05-01~ |
27485-68J10-000 |
US $32.57 |
||
|
5
|
5
27511-79C10-000 GEAR,FINAL DRIVENM15A:2WD; 2006-05-01~ |
27511-79C10-000 |
US $176.64 |
||
|
6
|
6
27516-79C10-000 BOLT,FINAL GEARM15A:2WD; 2006-05-01~ |
27516-79C10-000 |
US $4.64 |
||
|
7
|
7
27454-79CT0-000
Shim set,diff side brg
M15A:2WD; 2006-05-01~ |
27454-79CT0-000 |
— | ||
| replacement | |||||
|
7
|
7
27454-77MT0-000 SHIM SET,DIFF SIDE BRGM15A:2WD; 2006-05-01~ |
27454-77MT0-000 |
US $85.01 |
||
|
8
|
8
27611-79J10-000 SEAL,DIFF SIDE OIL,RM15A:2WD; 2006-05-01~ |
27611-79J10-000 |
US $16.71 |
||
|
9
|
9
27612-79C10-000 SEAL,DIFF SIDE OIL, LHM15A:2WD; 2006-05-01~ |
27612-79C10-000 |
US $8.46 |
||
