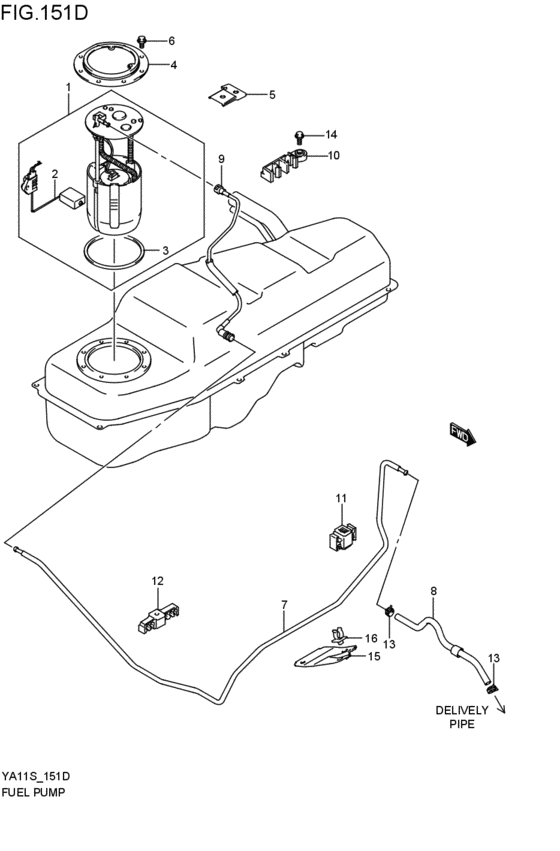

Fuel Pump (2006-05-01~) Diagram Suzuki SX4
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- FS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-80840-000 PUMP SET,FUEL2006-05-01~ |
15100-80840-000 |
from US $771.71 |
||
|
2
|
2
34810-80J00-000 GAUGE ASSY,FUEL LEVEL2006-05-01~ |
34810-80J00-000 |
US $90.53 |
||
|
3
|
3
15111-80J00-000 GASKET,FUEL PUMP2006-05-01~ |
15111-80J00-000 |
from US $8.51 |
||
|
4
|
4
15121-61J00-000 PLATE,FUEL PUMP2006-05-01~ |
15121-61J00-000 |
US $10.56 |
||
|
5
|
5
15131-63J00-000 BRACKET,FUEL TANK EARTH2006-05-01~ |
15131-63J00-000 |
US $6.81 |
||
|
6
|
6
09103-06168-000 BOLT(6X10)2006-05-01~ |
09103-06168-000 |
from US $1.01 |
||
|
7
|
7
15811-79J00-000 PIPE,FUEL FEED,R2006-05-01~ |
15811-79J00-000 |
US $55.94 |
||
|
8
|
8
15815-80JA0-000 HOSE,FUEL,PIPE TO ENGM15A; 2006-05-01~ |
15815-80JA0-000 |
US $34.78 |
||
|
9
|
9
15821-80J00-000 PIPE,FUEL TANK SIDE2006-05-01~ |
15821-80J00-000 |
US $48.58 |
||
|
10
|
10
15824-80J00-000 CLAMP,FUEL PIPE2006-05-01~ |
15824-80J00-000 |
US $6.81 |
||
|
11
|
11
15882-79J00-000 CLAMP,FUEL PIPE2006-05-01~ |
15882-79J00-000 |
US $4.20 |
||
|
12
|
12
15892-65J00-000 CLAMP,FUEL PIPE2006-05-01~ |
15892-65J00-000 |
US $3.81 |
||
|
13
|
13
09401-11420-000 CLIP2006-05-01~ |
09401-11420-000 |
US $1.52 |
||
|
14
|
14
02162-0616B-000 SCREWBolt, adjust 2006-05-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
15
|
15
15873-79J00-000 COVER,FUEL PIPE2006-05-01~ |
15873-79J00-000 |
US $8.17 |
||
|
16
|
16
09403-10324-000 CLAMP2006-05-01~ |
09403-10324-000 |
US $14.40 |
