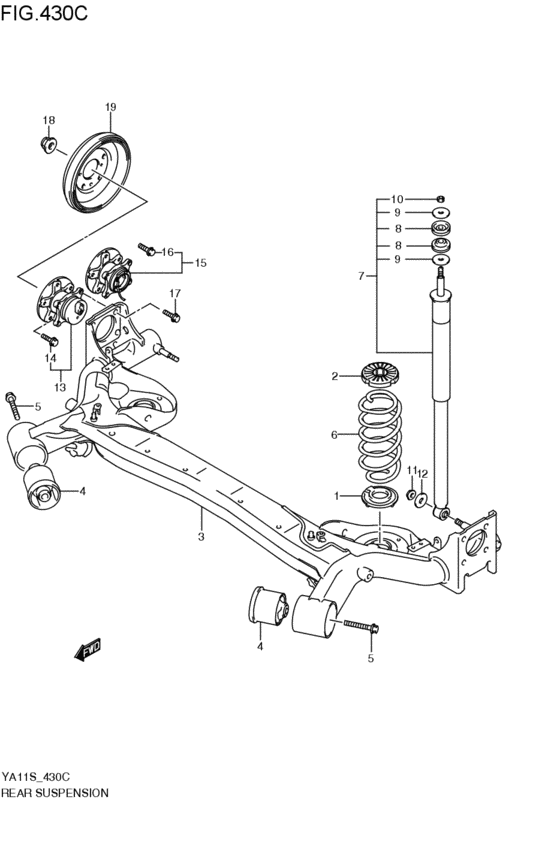

rear suspension (2006-05-01~) Diagram Suzuki SX4
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- FS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41312-63J00-000 SEAT,REAR SPRING RUBBER LOWER2006-05-01~ |
41312-63J00-000 |
US $24 |
||
|
2
|
2
41341-80J00-000 SEAT,REAR SPRING UPPER2006-05-01~ |
41341-80J00-000 |
US $26.40 |
||
|
3
|
3
46510-80J10-000
Beam comp,rear spnsn
E,F,FS,FC,G,Q,QS,R,RS; 2006-05-01~ |
46510-80J10-000 |
— | ||
| replacement | |||||
|
3
|
3
46500-80J11-000 BEAM ASSY,RR SPNSNE,F,FS,FC,G,Q,QS,R,RS; 2006-05-01~ |
46500-80J11-000 |
US $904.64 |
||
|
4
|
4
46221-80J00-000
Bushing,trailing arm
2006-05-01~ |
46221-80J00-000 |
— | ||
| replacement | |||||
|
4
|
4
46221-80J01-000 BUSHING,TRAILING ARM2006-05-01~ |
46221-80J01-000 |
from US $57.11 |
||
|
5
|
5
09135-12015-000 BOLT(12X115)2006-05-01~ |
09135-12015-000 |
US $44.20 |
||
|
6
|
6
41311-80J00-000 SPRING,REAR COIL5DR:2WD:(E,F,FS,FC,G,Q,QS,R,RS,T); 2006-05-01~ |
41311-80J00-000 |
US $190.40 |
||
|
7
|
7
41800-80J40-000 ABSORBER ASSY,RR SHOCK5DR:(F,FS,FC,Q,T); 2006-05-01~2007-06-01 |
41800-80J40-000 |
US $189.52 |
||
|
7
|
7
41800-80J41-000 ABSORBER ASSY,RR SHOCK5DR:(F,FS,FC,Q,QS,T); 2007-07-01~ |
41800-80J41-000 |
US $189.52 |
||
|
8
|
8
41812-63J00-000 BUSHING,RR SHK ABS UPR2006-05-01~ |
41812-63J00-000 |
US $11.68 |
||
|
9
|
9
41813-63J00-000 WASHER,RR SHK ABS UPR2006-05-01~ |
41813-63J00-000 |
US $2.90 |
||
|
10
|
10
41814-63J00-000 NUT,RR SHOCK ABS UPR2006-05-01~ |
41814-63J00-000 |
US $3.75 |
||
|
11
|
11
09159-12045-000 NUT2006-05-01~ |
09159-12045-000 |
US $16.20 |
||
| replacement | |||||
|
11
|
11
09159-12049-000 NUT2006-05-01~ |
09159-12049-000 |
US $38.60 |
||
|
12
|
12
09160-12109-000 WASHER(12.5X38X3.2)2006-05-01~ |
09160-12109-000 |
US $21.30 |
||
|
13
|
13
43402-80J00-000
Hub assy,wheel
2WD; 2006-05-01~ |
43402-80J00-000 |
— | ||
| replacement | |||||
|
13
|
13
43402-80J02-000 HUB ASSY,WHL2WD; 2006-05-01~ |
43402-80J02-000 |
from US $300.38 |
||
|
14
|
14
09119-12012-000 BOLT(12X38)2006-05-01~ |
09119-12012-000 |
US $2.72 |
||
|
16
|
16
09119-12012-000 BOLT(12X38)2006-05-01~ |
09119-12012-000 |
US $2.72 |
||
|
17
|
17
09103-12080-000 BOLT(12X30)2006-05-01~ |
09103-12080-000 |
US $2.40 |
||
|
19
|
19
43511-80J00-000
Drum,brake rear
E,F,FS,FC,G,Q,QS,R,RS; 2006-05-01~ |
43511-80J00-000 |
— | ||
| replacement | |||||
|
19
|
19
43511-80J01-000 DRUM,BRAKE RRE,F,FS,FC,G,Q,QS,R,RS; 2006-05-01~ |
43511-80J01-000 |
from US $123.65 |
||
