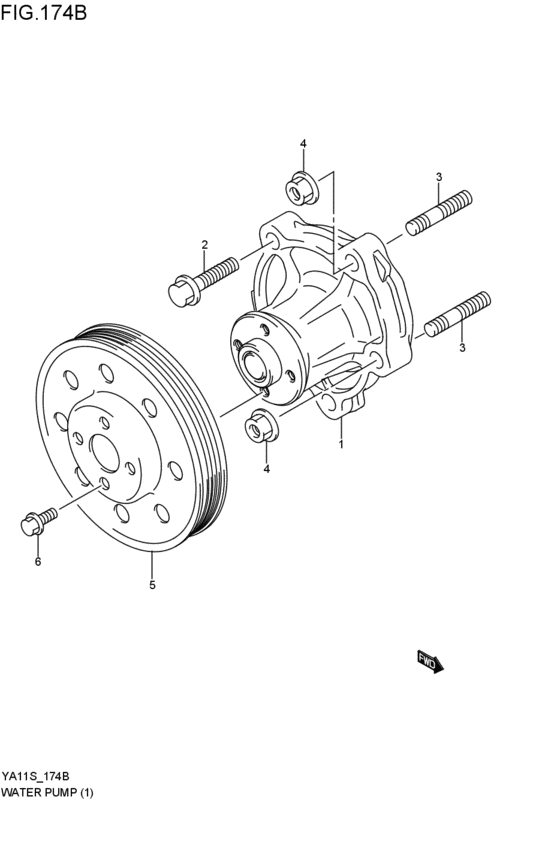

water pump (M15A; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- FS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-69G01-000
Pump assy,water
M15A; 2006-05-01~ |
17400-69G01-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-69G05-000 Pump Assy,WaterM15A; 2006-05-01~ |
17400-69G05-000 |
from US $100.40 |
||
|
2
|
2
01550-0835A-000 BOLTM15A; 2006-05-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
3
|
3
01421-0830A-000 BOLT,STUDM15A; 2006-05-01~ |
01421-0830A-000 |
from US $1.44 |
||
|
4
|
4
08316-1008A-000 NUTNut, idle gear shaft M15A; 2006-05-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
5
|
5
17511-64J01-000 PULLEY,WATER PUMPM15A; 2006-05-01~ |
17511-64J01-000 |
US $33.44 |
||
|
6
|
6
01550-0610A-000 BOLTM15A; 2006-05-01~ |
01550-0610A-000 |
from US $0.80 |
||
