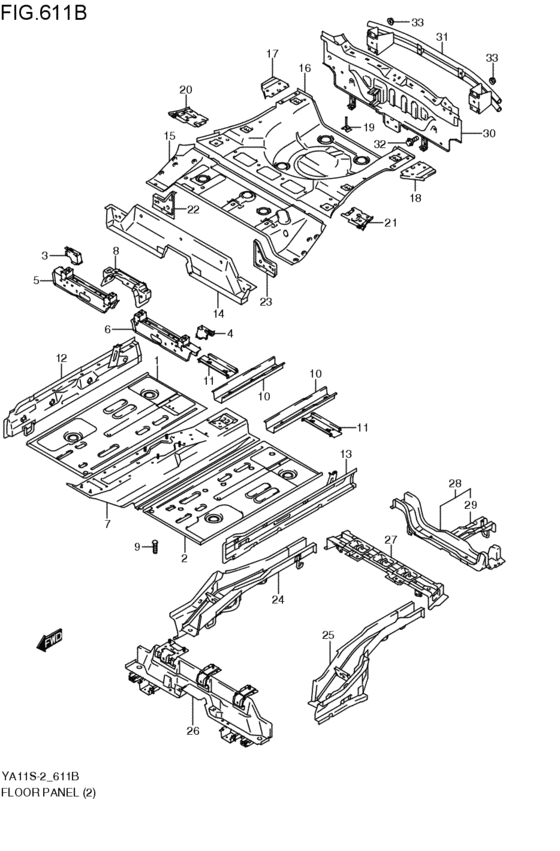

floor panel (5DR; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61111-63J10-000 PAN,MAIN FLOOR,R5DR; 2008-07-01~ |
61111-63J10-000 |
US $200.56 |
||
|
2
|
2
61161-63J10-000
PAN,MAIN FLOOR,L
5DR; 2008-07-01~ |
61161-63J10-000 |
— | ||
|
3
|
3
61120-80J00-000
Bracket comp,fr seat rr out,r
5DR; 2008-07-01~ |
61120-80J00-000 |
— | ||
| replacement | |||||
|
3
|
3
61120-80J01-000 BRACKET,FR SEAT RR OUT,R5DR; 2008-07-01~ |
61120-80J01-000 |
US $61.46 |
||
|
4
|
4
61170-80J00-000
Bracket,fr seat rr out,l
5DR; 2008-07-01~ |
61170-80J00-000 |
— | ||
| replacement | |||||
|
4
|
4
61170-80J01-000 BRACKET,FR SEAT RR OUT,L5DR; 2008-07-01~ |
61170-80J01-000 |
US $51.15 |
||
|
5
|
5
61130-80J00-000
CROSSMEMBER,FLR PAN UPR,R
5DR; 2008-07-01~ |
61130-80J00-000 |
— | ||
| replacement | |||||
|
5
|
5
61130-54L10-000 CROSSMEMBER,FLR PAN UPR,R5DR; 2008-07-01~ |
61130-54L10-000 |
US $149.41 |
||
|
6
|
6
61180-80J00-000
CROSSMEMBER,FLR PAN UPR,L
5DR; 2008-07-01~ |
61180-80J00-000 |
— | ||
| replacement | |||||
|
6
|
6
61180-54L10-000 CROSSMEMBER,FLR PAN UPR,L5DR; 2008-07-01~ |
61180-54L10-000 |
US $149.41 |
||
|
7
|
7
61210-80J01-000
Tunnel,main floor
5DR:2WD; 2008-07-01~ |
61210-80J01-000 |
— | ||
| replacement | |||||
|
7
|
7
61210-54L00-000 TUNNEL,MAIN FLOOR5DR:2WD; 2008-07-01~ |
61210-54L00-000 |
US $382.72 |
||
|
8
|
8
61230-79J01-000 BRACKET,FR SEAT RR INSIDE5DR; 2008-07-01~ |
61230-79J01-000 |
US $87.58 |
||
|
9
|
9
09119-05018-000 BOLT(8X35)5DR; 2008-07-01~ |
09119-05018-000 |
US $9.60 |
||
|
10
|
10
61241-63J00-000 MEMBER,FL SIDE RR5DR; 2008-07-01~ |
61241-63J00-000 |
US $62.93 |
||
|
11
|
11
61242-80J00-000
Crossmember,floor pan lower
5DR; 2008-07-01~ |
61242-80J00-000 |
— | ||
| replacement | |||||
|
11
|
11
61242-54L00-000 CROSSMEMBER,FLR PAN LWR5DR; 2008-07-01~ |
61242-54L00-000 |
US $33.86 |
||
|
12
|
12
61310-80J00-000 PANEL,SIDE SILL INNER,R5DR; 2008-07-01~ |
61310-80J00-000 |
US $200.56 |
||
|
13
|
13
61320-80J00-000 PANEL,SIDE SILL INNER,L5DR; 2008-07-01~ |
61320-80J00-000 |
US $200.56 |
||
|
14
|
14
61511-80J00-000 PANEL,REAR FLOOR FR5DR; 2008-07-01~ |
61511-80J00-000 |
US $202.40 |
||
|
15
|
15
61512-80J00-000
PANEL,REAR FLOOR CTR
5DR; 2008-07-01~ |
61512-80J00-000 |
— | ||
|
16
|
16
61513-80J00-000 PANEL,REAR FLOOR RR5DR; 2008-07-01~ |
61513-80J00-000 |
US $393.76 |
||
|
17
|
17
61514-79J00-000 EXTENSION,RR FLOOR SIDE,R5DR; 2008-07-01~ |
61514-79J00-000 |
US $15.09 |
||
|
18
|
18
61515-79J00-000 EXTENSION,RR FLOOR SIDE,L5DR; 2008-07-01~ |
61515-79J00-000 |
US $15.09 |
||
|
19
|
19
61518-80J00-000
BRACKET,SPARE TIRE
5DR; 2008-07-01~ |
61518-80J00-000 |
— | ||
|
20
|
20
61521-80J00-000
Reinf,rr seat belt side,r
5DR; 2008-07-01~ |
61521-80J00-000 |
— | ||
| replacement | |||||
|
20
|
20
61521-54L00-000 REINF,RR SEAT BELT SIDE,R5DR; 2008-07-01~ |
61521-54L00-000 |
US $17.30 |
||
|
21
|
21
61522-80J00-000
Reinf,rr seat belt side,l
5DR; 2008-07-01~ |
61522-80J00-000 |
— | ||
| replacement | |||||
|
21
|
21
61522-54L00-000 REINF,RR SEAT BELT SIDE,L5DR; 2008-07-01~ |
61522-54L00-000 |
US $14.39 |
||
|
22
|
22
61531-79J00-000 REINFORCEMENT,RR FL FR PANEL,R5DR; 2008-07-01~ |
61531-79J00-000 |
US $34.04 |
||
|
23
|
23
61532-79J00-000 REINFORCEMENT,RR FL FR PANEL,L5DR; 2008-07-01~ |
61532-79J00-000 |
US $34.04 |
||
|
24
|
24
62100-80J00-000 MEMBER,RR FL SIDE,R5DR; 2008-07-01~ |
62100-80J00-000 |
US $386.40 |
||
|
25
|
25
62300-80J00-000
MEMBER,RR FL SIDE,L
5DR; 2008-07-01~ |
62300-80J00-000 |
— | ||
|
26
|
26
62600-80J01-000
CROSSMEMBER,RR FLR FR
5DR; 2008-07-01~ |
62600-80J01-000 |
— | ||
|
27
|
27
62700-80J00-000
CROSSMEMBER,RR FLR CTR
5DR:2WD; 2008-07-01~ |
62700-80J00-000 |
— | ||
|
28
|
28
62800-80J00-000
クロスメンバ,リヤフロアリヤ
5DR:2WD; 2008-07-01~ |
62800-80J00-000 |
— | ||
| replacement | |||||
|
28
|
28
62800-80J20-000 CROSSMEMBER,RR FLR RR5DR:2WD; 2008-07-01~ |
62800-80J20-000 |
US $316.48 |
||
|
29
|
29
62830-80J00-000 HOOK,TOWING RR5DR; 2008-07-01~ |
62830-80J00-000 |
US $90.16 |
||
|
30
|
30
65500-80J00-000
パネル,バック
5DR; 2008-07-01~ |
65500-80J00-000 |
— | ||
| replacement | |||||
|
30
|
30
65500-80J01-000 PANEL,BACK5DR; 2008-07-01~ |
65500-80J01-000 |
from US $191.30 |
||
|
31
|
31
65560-79J10-000 MEMBER,RR BUMPER5DR; 2008-07-01~ |
65560-79J10-000 |
from US $190.78 |
||
|
32
|
32
01550-0612A-000 BOLT5DR; 2008-07-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
33
|
33
08316-1008A-000 NUTNut, idle gear shaft 5DR; 2008-07-01~ |
08316-1008A-000 |
from US $0.76 |
||
