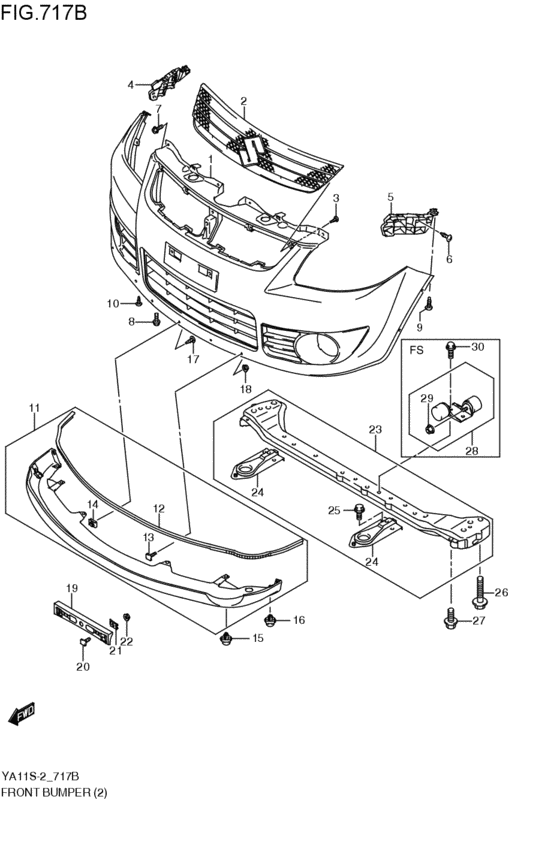

front bumper (5DR:FF,FG,FS; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-80J10-BN4 BUMPER,FR(WHITE)カラー:ホワイト/ブラツク; 5DR:FF,FG,FS; 2008-07-01~ |
71711-80J10-BN4 |
US $813.12 |
||
|
1
|
1
71711-80J10-N49 BUMPER,FR(BLACK/PRIMARY)カラー:ブラツク/プライマリ-; 5DR:FF,FG,FS; 2008-07-01~ |
71711-80J10-N49 |
US $707.52 |
||
|
1
|
1
71711-80J10-799 BUMPER,FR(PRIMARY)カラー:プライマリ-; 5DR:FF,FG,FS; 2008-07-01~ |
71711-80J10-799 |
US $707.52 |
||
|
2
|
2
71741-80J00-5PK GRILLE,RDTRカラー:ブラツク; 5DR:FF,FG,FS; 2008-07-01~ |
71741-80J00-5PK |
US $109.30 |
||
|
3
|
3
03541-0412A-000 SCREWScrew, speedometer 5DR:FF,FG,FS; 2008-07-01~ |
03541-0412A-000 |
from US $0.80 |
||
|
4
|
4
71731-80J00-000 HOLDER,FR BPR SIDE,R5DR:FF,FG,FS; 2008-07-01~ |
71731-80J00-000 |
US $29.60 |
||
|
5
|
5
71732-80J00-000 HOLDER,FR BPR SIDE,L5DR:FF,FG,FS; 2008-07-01~ |
71732-80J00-000 |
US $32.80 |
||
|
6
|
6
03541-0512A-000 SCREW5DR:FF,FG,FS; 2008-07-01~ |
03541-0512A-000 |
from US $0.76 |
||
|
7
|
7
02162-0616A-000 SCREW5DR:FF,FG,FS; 2008-07-01~ |
02162-0616A-000 |
from US $3.01 |
||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 5DR:FF,FG,FS; 2008-07-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
8
|
8
02162-0616A-000 SCREW5DR:FF,FG,FS; 2008-07-01~ |
02162-0616A-000 |
from US $3.01 |
||
| replacement | |||||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust 5DR:FF,FG,FS; 2008-07-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
9
|
9
09136-05068-000 SCREW(5X20)5DR:FF,FG,FS; 2008-07-01~ |
09136-05068-000 |
from US $0.96 |
||
|
10
|
10
09136-05068-000 SCREW(5X20)5DR:FF,FG,FS; 2008-07-01~ |
09136-05068-000 |
from US $0.96 |
||
|
11
|
11
71760-80J10-DNZ EXTENSION,FR BUMPERカラー:カッパ-/ブラツク; 5DR:FF,FG,FS; 2008-07-01~ |
71760-80J10-DNZ |
US $1,898.88 |
||
|
11
|
11
71760-80J10-DPA EXTENSION,FR BUMPERカラー:ブル-/ブラツク; 5DR:FF,FG,FS; 2008-07-01~ |
71760-80J10-DPA |
US $1,898.88 |
||
|
11
|
11
71760-80J10-EVD EXTENSION,FR BUMPERカラー:ブル-/ブラツク; FG,FS; 2008-07-01~ |
71760-80J10-EVD |
US $2,008.96 |
||
|
11
|
11
71760-80J10-GZ5 EXTENSION,FR BUMPERカラー:ブラツク; 5DR:FF,FG,FS; 2008-07-01~ |
71760-80J10-GZ5 |
US $1,898.88 |
||
|
11
|
11
71760-80J10-NP5 EXTENSION,FR BUMPERカラー:グレ-/ブラツク; FG,FS; 2008-07-01~ |
71760-80J10-NP5 |
US $1,898.88 |
||
|
11
|
11
71760-80J10-Z2S EXTENSION,FR BUMPERカラー:シルバ-; 5DR:FF,FG,FS; 2008-07-01~ |
71760-80J10-Z2S |
US $1,898.88 |
||
|
11
|
11
71760-80J10-Z7T EXTENSION,FR BUMPERカラー:ホワイト; 5DR:FF,FG,FS; 2008-07-01~ |
71760-80J10-Z7T |
US $1,898.88 |
||
|
12
|
12
71762-80J10-Z2S PROTECTOR,BUMPER EXTカラー:シルバ-; 5DR:FF,FG,FS; 2008-07-01~ |
71762-80J10-Z2S |
US $34.78 |
||
|
12
|
12
71762-80J10-Z7T PROTECTOR,BUMPER EXTカラー:ホワイト; 5DR:FF,FG,FS; 2008-07-01~ |
71762-80J10-Z7T |
US $34.78 |
||
|
12
|
12
71762-80J10-5PK PROTECTOR,BUMPER EXTカラー:ブラツク; 5DR:FF,FG,FS; 2008-07-01~ |
71762-80J10-5PK |
US $50.40 |
||
|
13
|
13
77225-78F00-000 BOLT,BUMPER EXT5DR:FF,FG,FS; 2008-07-01~ |
77225-78F00-000 |
US $1.60 |
||
|
14
|
14
09148-05047-000 NUT5DR:FF,FG,FS; 2008-07-01~ |
09148-05047-000 |
from US $0.96 |
||
|
15
|
15
09409-07332-000 CLIP5DR:FF,FG,FS; 2008-07-01~ |
09409-07332-000 |
from US $1.28 |
||
|
16
|
16
09409-07332-000 CLIP5DR:FF,FG,FS; 2008-07-01~ |
09409-07332-000 |
from US $1.28 |
||
|
17
|
17
03541-0512A-000 SCREW5DR:FF,FG,FS; 2008-07-01~ |
03541-0512A-000 |
from US $0.76 |
||
|
18
|
18
08316-1005A-000 NUT5DR:FF,FG,FS; 2008-07-01~ |
08316-1005A-000 |
from US $0.80 |
||
|
19
|
19
71790-80J00-5PK GARNISH,FR BPR LICカラー:ブラツク; 5DR:FF,FG,FS; 2008-07-01~ |
71790-80J00-5PK |
US $47.20 |
||
|
20
|
20
77225-78F00-000 BOLT,BUMPER EXT5DR:FF,FG,FS; 2008-07-01~ |
77225-78F00-000 |
US $1.60 |
||
|
21
|
21
09148-06021-000 NUTNut, air cleaner 5DR:FF,FG,FS; 2008-07-01~ |
09148-06021-000 |
from US $1.31 |
||
|
22
|
22
08316-1005A-000 NUT5DR:FF,FG,FS; 2008-07-01~ |
08316-1005A-000 |
from US $0.80 |
||
|
23
|
23
71100-80J01-000 CROSSMEMBER,FR LWR5DR:FF,FG,FS; 2008-07-01~ |
71100-80J01-000 |
US $284.24 |
||
|
24
|
24
71131-80J00-000 BRACKET,RDTR5DR:FF,FG,FS; 2008-07-01~ |
71131-80J00-000 |
US $23.18 |
||
|
25
|
25
01550-0816A-000 BOLTBolt, rear 5DR:FF,FG,FS; 2008-07-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
26
|
26
09118-10058-000 BOLT(10X50)5DR:FF,FG,FS; 2008-07-01~ |
09118-10058-000 |
US $1.76 |
||
|
27
|
27
01551-1025A-000 Bolt5DR:FF,FG,FS; 2008-07-01~ |
01551-1025A-000 |
US $1.12 |
||
