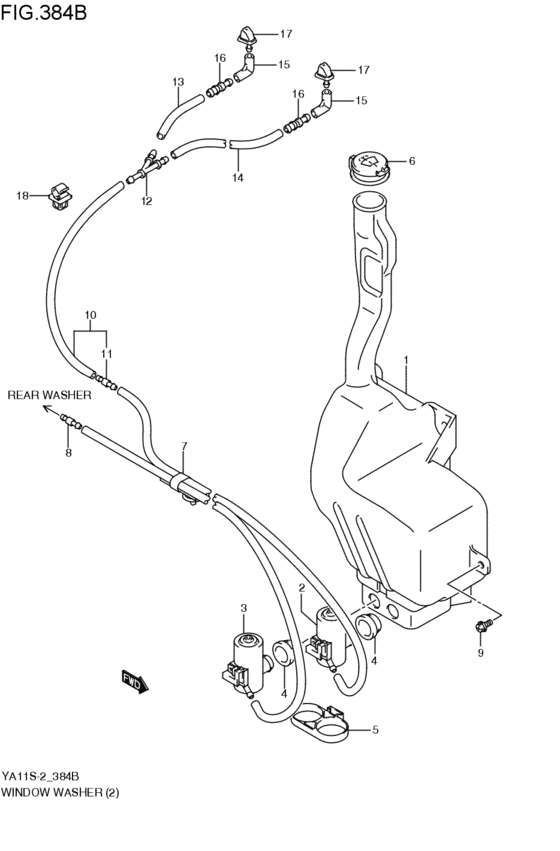

ウインドウオッシャ (5DR; 2007-08-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38450-80J10-000 TANK ASSY,WASHER5DR; 2007-08-01~ |
38450-80J10-000 |
from US $43.06 |
||
|
2
|
2
38410-80J00-000 PUMP ASSY,WASHER FR5DR; 2007-08-01~ |
38410-80J00-000 |
US $79.49 |
||
|
3
|
3
38410-80J10-000 PUMP ASSY,WASHER RR5DR; 2007-08-01~ |
38410-80J10-000 |
from US $71.69 |
||
|
4
|
4
38453-65J00-000 GROMMET5DR; 2007-08-01~ |
38453-65J00-000 |
from US $2.56 |
||
|
5
|
5
38453-80J10-000 HOLDER,WASHER PUMP5DR; 2007-08-01~ |
38453-80J10-000 |
US $5 |
||
|
6
|
6
38452-67H00-000 CAP,WASHER TANK5DR; 2007-08-01~ |
38452-67H00-000 |
from US $2.57 |
||
|
7
|
7
38459-80JA0-000 HOSE ASSY,FR&RR5DR; 2007-08-01~ |
38459-80JA0-000 |
US $14.94 |
||
|
8
|
8
38496-56B00-000 CONNECTOR5DR; 2007-08-01~ |
38496-56B00-000 |
from US $1.60 |
||
|
9
|
9
02162-0612A-000 SCREWBolt, bracket 5DR; 2007-08-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
10
|
10
38491-80J01-000 HOSE ASSY,WASHER5DR; 2007-08-01~ |
38491-80J01-000 |
US $21.53 |
||
|
11
|
11
38496-56B00-000 CONNECTOR5DR; 2007-08-01~ |
38496-56B00-000 |
from US $1.60 |
||
|
12
|
12
38496-60G00-000 JOINT,3WAY5DR; 2007-08-01~ |
38496-60G00-000 |
US $2.43 |
||
|
13
|
13
38491-61A10-000 HOSE,WASHER L:2100L:2100>70; 5DR; 2007-08-01~ |
38491-61A10-000 |
US $5.44 |
||
|
14
|
14
38491-61A10-000 HOSE,WASHER L:2100L:2100>680; 5DR; 2007-08-01~ |
38491-61A10-000 |
US $5.44 |
||
|
15
|
15
38496-67H00-000 JOINT,ELBOW5DR; 2007-08-01~ |
38496-67H00-000 |
from US $2.88 |
||
|
16
|
16
38496-61A00-000 VALVE,CHECK5DR; 2007-08-01~ |
38496-61A00-000 |
from US $1.71 |
||
|
17
|
17
38480-80J00-000 NOZZLE,WASHER5DR; 2007-08-01~ |
38480-80J00-000 |
from US $12.17 |
||
|
18
|
18
09403-07330-000 CLAMP5DR; 2007-08-01~ |
09403-07330-000 |
US $14.40 |
