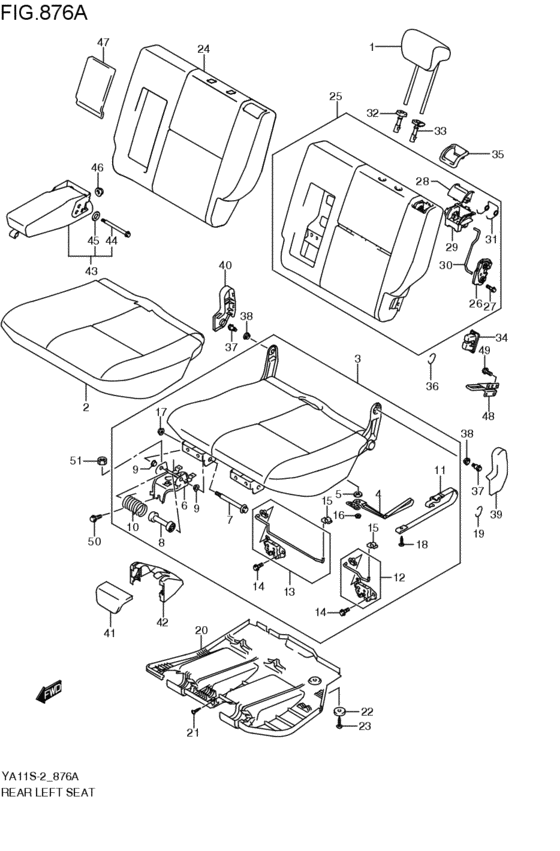

rear left field seat (5DR; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86401-66J10-DJT
Headrestraint assy,rr
5DR; 2008-07-01~ |
86401-66J10-DJT |
— | ||
| replacement | |||||
|
1
|
1
86401-66J11-DJT
HEADRESTRAINT ASSY,RR(BLACK)
5DR; 2008-07-01~ |
86401-66J11-DJT |
— | ||
|
2
|
2
87680-80J00-CHP
Trim comp,rr cush,l
5DR; 2008-07-01~ |
87680-80J00-CHP |
— | ||
| replacements | |||||
|
2
|
2
87680-80J01-CHP
TRIM,RR CUSHION,L
5DR; 2008-07-01~ |
87680-80J01-CHP |
— | ||
|
2
|
2
87680-80J02-CHP
Trim,rr Cushion,l
5DR; 2008-07-01~ |
87680-80J02-CHP |
— | ||
|
3
|
3
87106-80J01-000
CUSHION S/ASSY,RR,L
5DR; 2008-07-01~ |
87106-80J01-000 |
— | ||
|
4
|
4
87632-63J01-000 LEVER,CUSH LOCK RLSE,L5DR; 2008-07-01~ |
87632-63J01-000 |
US $23.18 |
||
|
5
|
5
87134-63J00-000 BUSH,CUSH LOCK LEVER5DR; 2008-07-01~ |
87134-63J00-000 |
US $5.89 |
||
|
6
|
6
87650-80J10-000 BRACKET,RR CUSH LEG,L5DR; 2008-07-01~ |
87650-80J10-000 |
US $21.90 |
||
|
7
|
7
87153-63J01-000 BOLT,RR CUSH LEG5DR; 2008-07-01~ |
87153-63J01-000 |
US $13.73 |
||
|
8
|
8
87149-66J00-000
COLLAR,SPRING
5DR; 2008-07-01~ |
87149-66J00-000 |
— | ||
|
9
|
9
87157-63J00-000 BUSH,RR CUSH LEG5DR; 2008-07-01~ |
87157-63J00-000 |
US $4.64 |
||
|
10
|
10
87658-63J00-000 SPRING,RR CUSH LEG5DR; 2008-07-01~ |
87658-63J00-000 |
US $54.83 |
||
|
11
|
11
87270-66J00-000 BAND,RR SEAT5DR; 2008-07-01~ |
87270-66J00-000 |
US $23.18 |
||
|
12
|
12
87960-63J02-000 LOCK ASSY,RR CUSH,L5DR; 2008-07-01~ |
87960-63J02-000 |
US $90.90 |
||
|
13
|
13
87960-63J12-000 LOCK ASSY,RR CUSH,L5DR; 2008-07-01~ |
87960-63J12-000 |
US $80.59 |
||
|
14
|
14
09103-11002-000 BOLT(7/16X22)5DR; 2008-07-01~ |
09103-11002-000 |
US $18 |
||
|
15
|
15
09403-04306-000 CLAMPConnector, choke rod 5DR; 2008-07-01~ |
09403-04306-000 |
US $20.20 |
||
|
16
|
16
08316-1008A-000 NUTNut, idle gear shaft 5DR; 2008-07-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
17
|
17
08316-1008A-000 NUTNut, idle gear shaft 5DR; 2008-07-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
18
|
18
03141-0616A-000 SCREW5DR; 2008-07-01~ |
03141-0616A-000 |
from US $0.76 |
||
|
19
|
19
09387-19001-000 RING5DR; 2008-07-01~ |
09387-19001-000 |
US $1.76 |
||
|
20
|
20
87619-80J00-P4Z
COVER,RR SEAT CUSH,L
5DR; 2008-07-01~ |
87619-80J00-P4Z |
— | ||
|
21
|
21
03241-0512A-000 SCREW5DR; 2008-07-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
22
|
22
87159-65DA0-000 CUSHION,RR CUSH5DR; 2008-07-01~ |
87159-65DA0-000 |
US $3.90 |
||
|
23
|
23
03241-0516A-000 SCREW5DR; 2008-07-01~ |
03241-0516A-000 |
from US $0.76 |
||
|
24
|
24
87880-80J60-CHP
Trim comp,rr back,l
5DR; 2008-07-01~ |
87880-80J60-CHP |
— | ||
| replacement | |||||
|
24
|
24
87880-80J61-CHP
TRIM,RR BACK,L
5DR; 2008-07-01~ |
87880-80J61-CHP |
— | ||
|
25
|
25
87306-80J60-P4Z
BACK S/ASSY,RR,L
5DR; 2008-07-01~ |
87306-80J60-P4Z |
— | ||
|
26
|
26
87980-62J02-000 LOCK ASSY,RR BACK,L5DR; 2008-07-01~ |
87980-62J02-000 |
US $76.54 |
||
|
27
|
27
01550-0835A-000 BOLT5DR; 2008-07-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
28
|
28
87483-80J00-P4Z
Knob,rr back lock
5DR; 2008-07-01~ |
87483-80J00-P4Z |
— | ||
|
29
|
29
87484-80J01-000
Case,rr back lock
5DR; 2008-07-01~ |
87484-80J01-000 |
— | ||
| replacement | |||||
|
29
|
29
87484-80J11-000 CASE,RR BACK LOCK5DR; 2008-07-01~ |
87484-80J11-000 |
US $10.56 |
||
|
30
|
30
87985-79J00-000 WIRE,RR BACK LOCK,L5DR; 2008-07-01~ |
87985-79J00-000 |
US $4.05 |
||
|
31
|
31
87486-79J00-000 SPRING,BACK KNOB5DR; 2008-07-01~ |
87486-79J00-000 |
US $9.68 |
||
|
32
|
32
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
5DR; 2008-07-01~ |
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
32
|
32
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
5DR; 2008-07-01~ |
85341-63J11-P4Z |
— | ||
|
32
|
32
85341-63J12-P4Z Guide,headrestraint5DR; 2008-07-01~ |
85341-63J12-P4Z |
US $7.36 |
||
|
33
|
33
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
5DR; 2008-07-01~ |
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
33
|
33
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
5DR; 2008-07-01~ |
85840-63J11-P4Z |
— | ||
|
33
|
33
85840-63J12-P4Z Guide Comp,headrestraint5DR; 2008-07-01~ |
85840-63J12-P4Z |
US $9.12 |
||
|
34
|
34
87225-53JA0-P4Z
Cover,tether anchor
5DR; 2008-07-01~ |
87225-53JA0-P4Z |
— | ||
| replacement | |||||
|
34
|
34
87225-53JB0-P4Z COVER,TETHER ANCHOR5DR; 2008-07-01~ |
87225-53JB0-P4Z |
US $6.51 |
||
|
35
|
35
87482-80J00-P4Z BEZEL,RR BACK LOCK BTN5DR; 2008-07-01~ |
87482-80J00-P4Z |
US $3.53 |
||
|
36
|
36
09387-19001-000 RING5DR; 2008-07-01~ |
09387-19001-000 |
US $1.76 |
||
|
37
|
37
87333-63J01-000 BOLT,RR SEAT HINGE OUTER5DR; 2008-07-01~ |
87333-63J01-000 |
US $3.75 |
||
|
38
|
38
87334-63J01-000 BUSH,HINGE OTR5DR; 2008-07-01~ |
87334-63J01-000 |
US $3.09 |
||
|
39
|
39
87672-80J00-P4Z
COVER,RR HINGE OUT,L
5DR; 2008-07-01~ |
87672-80J00-P4Z |
— | ||
|
40
|
40
87671-63J02-P4Z
COVER,HINGE INSIDE L
5DR; 2008-07-01~ |
87671-63J02-P4Z |
— | ||
|
41
|
41
87491-80J10-P4Z COVER,RR CUSH HINGE FR5DR; 2008-07-01~ |
87491-80J10-P4Z |
US $6.15 |
||
|
42
|
42
87992-80J00-P4Z COVER,RR CUSH HINGE RR5DR; 2008-07-01~ |
87992-80J00-P4Z |
US $9.68 |
||
|
43
|
43
87501-80J00-DJT
Armrest assy,rr
5DR; 2008-07-01~ |
87501-80J00-DJT |
— | ||
| replacement | |||||
|
43
|
43
87501-80J01-DJT
ARMREST ASSY,RR(BLACK)
5DR; 2008-07-01~ |
87501-80J01-DJT |
— | ||
|
44
|
44
87571-80J00-000 BOLT,ARMREST5DR; 2008-07-01~ |
87571-80J00-000 |
US $10.41 |
||
|
45
|
45
09161-10007-000 WASHER(10X17X2)5DR; 2008-07-01~ |
09161-10007-000 |
from US $2.35 |
||
|
46
|
46
08316-1008A-000 NUTNut, idle gear shaft 5DR; 2008-07-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
47
|
47
87541-66J00-P4Z
COVER,RR ARMREST HOLE
5DR; 2008-07-01~ |
87541-66J00-P4Z |
— | ||
|
48
|
48
87870-80J20-000
STRIKER ASSY,RR BACK
5DR; 2008-07-01~ |
87870-80J20-000 |
— | ||
|
49
|
49
01551-0820A-000 BOLT5DR; 2008-07-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
50
|
50
01551-1025A-000 Bolt5DR; 2008-07-01~ |
01551-1025A-000 |
US $1.12 |
||
|
51
|
51
08316-1010A-000 NUTNut, kick starter 5DR; 2008-07-01~ |
08316-1010A-000 |
from US $0.76 |
||
