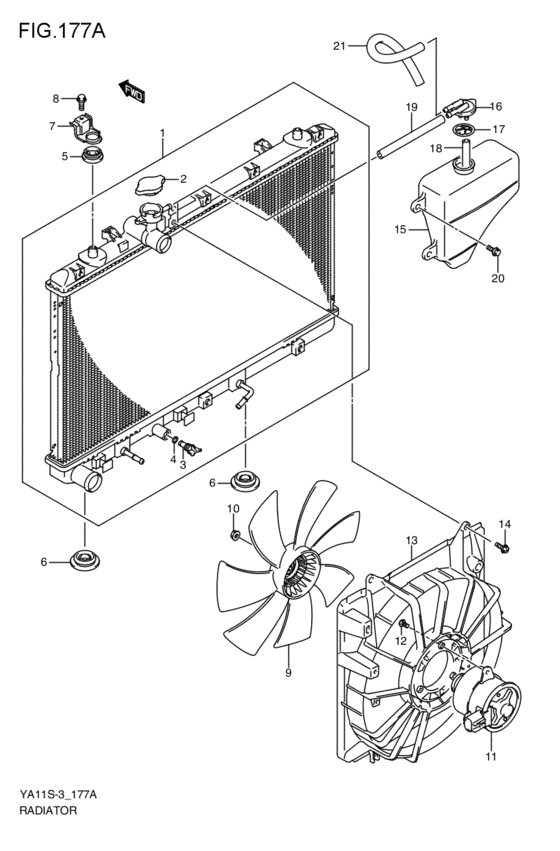

radiator (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-80JA0-000 RADIATOR ASSY2009-01-01~ |
17700-80JA0-000 |
US $718.08 |
||
|
2
|
2
17920-75F00-000 CAP,RADIATOR2009-01-01~ |
17920-75F00-000 |
from US $13.83 |
||
|
3
|
3
17751-61A00-000 PLUG,DRAIN2009-01-01~ |
17751-61A00-000 |
US $4.32 |
||
|
4
|
4
17759-72010-000 O-RING2009-01-01~ |
17759-72010-000 |
US $1.52 |
||
|
5
|
5
17812-54G00-000 MOUNT,RDTR SUPPORT UPR2009-01-01~ |
17812-54G00-000 |
from US $2.88 |
||
|
6
|
6
17878-75F00-000 MOUNT,RDTR SUPPORT LWR2009-01-01~ |
17878-75F00-000 |
from US $2.88 |
||
|
7
|
7
17861-79J00-000 BRACKET,RDTR SUPPORT UPPER2009-01-01~ |
17861-79J00-000 |
from US $5 |
||
|
8
|
8
09103-08382-000 BOLT(8X12)2009-01-01~ |
09103-08382-000 |
from US $2.08 |
||
|
9
|
9
17111-80JA0-000 FAN,COOLING2009-01-01~ |
17111-80JA0-000 |
US $61.09 |
||
|
10
|
10
08316-2005A-000 NUT2009-01-01~ |
08316-2005A-000 |
from US $0.80 |
||
|
11
|
11
17120-80JA0-000 MOTOR ASSY,COOLING FAN2009-01-01~ |
17120-80JA0-000 |
from US $397.44 |
||
|
12
|
12
17129-50F10-000 SCREW,FAN MOTORScrew 2009-01-01~ |
17129-50F10-000 |
US $1.60 |
||
|
13
|
13
17760-80JA0-000 SHROUD2009-01-01~ |
17760-80JA0-000 |
from US $76.82 |
||
|
14
|
14
02162-0616B-000 SCREWBolt, adjust 2009-01-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
15
|
15
17931-79J00-000 TANK,WATER RESERVE2009-01-01~ |
17931-79J00-000 |
from US $24.12 |
||
|
16
|
16
17932-60B10-000 CAP,WATER RESERVE TANK2009-01-01~ |
17932-60B10-000 |
from US $9.34 |
||
|
17
|
17
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap 2009-01-01~ |
17933-60B00-000 |
from US $1.85 |
||
|
18
|
18
09352-70111-600 HOSE(7X11X600)L:600>170; 2009-01-01~ |
09352-70111-600 |
from US $6.84 |
||
|
19
|
19
17939-80JA0-000 HOSE,RDTR TO RSV TANK2009-01-01~ |
17939-80JA0-000 |
US $14.08 |
||
|
20
|
20
02162-0616A-000 SCREW2009-01-01~ |
02162-0616A-000 |
from US $1.04 |
||
| replacement | |||||
|
20
|
20
02162-0616B-000 SCREWBolt, adjust 2009-01-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
21
|
21
17936-80JA0-000 HOSE,RSVR TANK VENT2009-01-01~ |
17936-80JA0-000 |
from US $6.89 |
||
