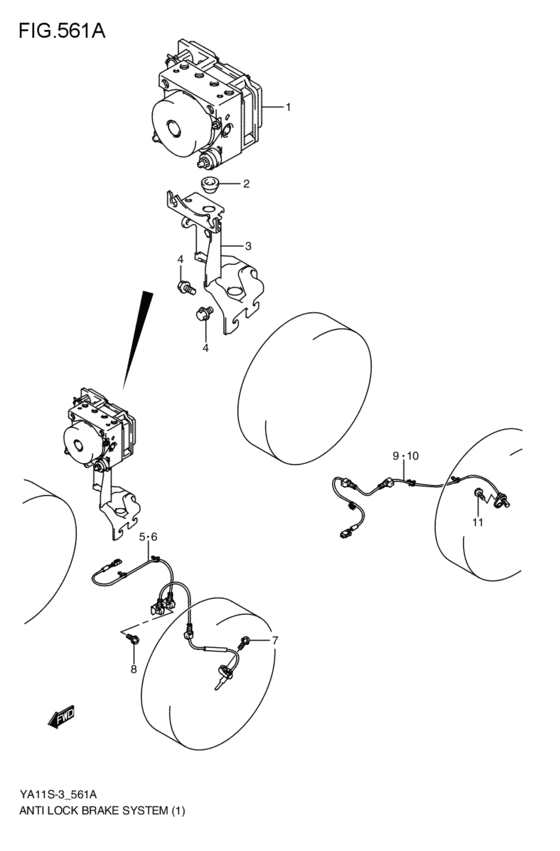

antilock brake system (2WD; 2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-54L90-000 ACTUATOR ASSY,ABS2WD; 2009-01-01~ |
56110-54L90-000 |
US $1,527.36 |
||
|
2
|
2
56121-58J00-000 DAMPER,ACTUATOR MOUNT2WD; 2009-01-01~ |
56121-58J00-000 |
US $3.39 |
||
|
3
|
3
56161-80J10-000 BRACKET,ACTUATOR2WD; 2009-01-01~ |
56161-80J10-000 |
US $23.18 |
||
|
4
|
4
01551-0812A-000 Bolt2WD; 2009-01-01~ |
01551-0812A-000 |
US $13.20 |
||
|
5
|
5
56210-79J00-000
Sensor comp,fr wheel,r
2WD; 2009-01-01~ |
56210-79J00-000 |
— | ||
| replacement | |||||
|
5
|
5
56210-79J10-000 SENSOR,FR WHEEL,R2WD; 2009-01-01~ |
56210-79J10-000 |
US $116.29 |
||
|
6
|
6
56220-79J00-000
Sensor comp,fr wheel,l
2WD; 2009-01-01~ |
56220-79J00-000 |
— | ||
| replacement | |||||
|
6
|
6
56220-79J10-000 SENSOR,FR WHEEL,L2WD; 2009-01-01~ |
56220-79J10-000 |
US $116.29 |
||
|
7
|
7
02162-0616A-000 SCREW2WD; 2009-01-01~ |
02162-0616A-000 |
from US $1.04 |
||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 2WD; 2009-01-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 2WD; 2009-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
56310-79J01-000 SENSOR,RR WHEEL,R2WD; 2009-01-01~ |
56310-79J01-000 |
US $112.24 |
||
|
10
|
10
56320-79J01-000 SENSOR,RR WHEEL,L2WD; 2009-01-01~ |
56320-79J01-000 |
US $112.24 |
||
|
11
|
11
02162-0612A-000 SCREWBolt, bracket 2WD; 2009-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
