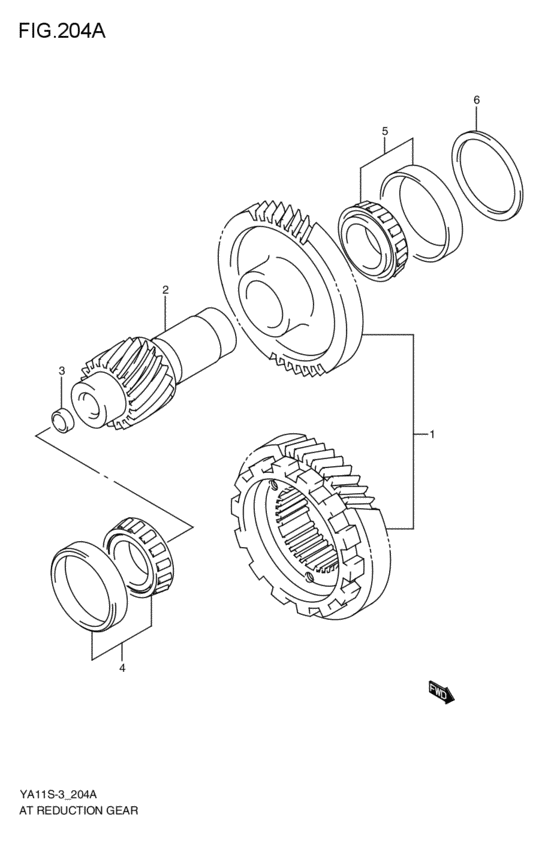

at - reduction gear (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24611-68JT0-000 GEAR SET,REDUCTION2009-01-01~ |
24611-68JT0-000 |
US $133.22 |
||
|
2
|
2
24131-55G50-000 SHAFT,COUNTER2009-01-01~ |
24131-55G50-000 |
US $121.44 |
||
|
3
|
3
24134-79C10-000 PLUG,COUNTERSHAFT2009-01-01~ |
24134-79C10-000 |
US $3.02 |
||
|
4
|
4
24141-79C10-000 BEARING ASSY,COUNTERSHAFT2009-01-01~ |
24141-79C10-000 |
US $20 |
||
|
5
|
5
24144-79C10-000 BEARING ASSY,COUNTERSHAFT2009-01-01~ |
24144-79C10-000 |
US $34.59 |
||
|
6
|
6
24147-79CT0-000 SHIM SET,COUNTERSHAFT2009-01-01~ |
24147-79CT0-000 |
US $79.12 |
