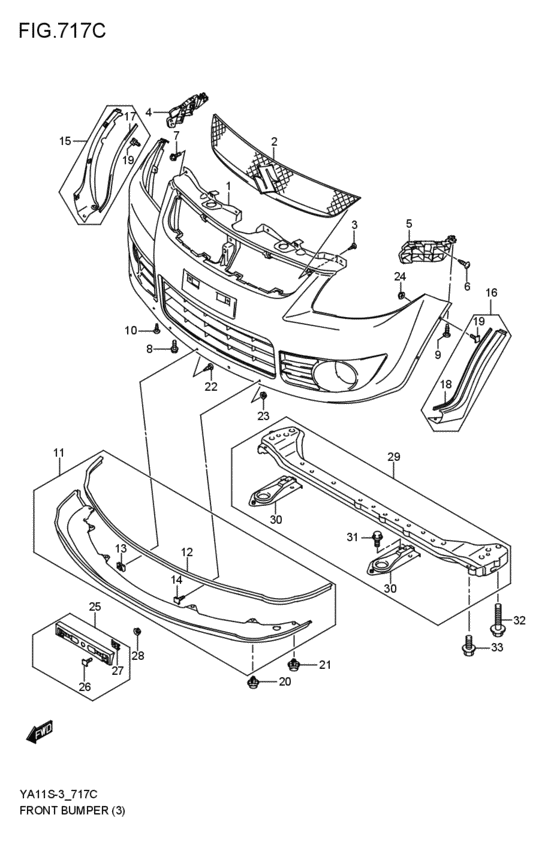

front bumper (5DR:FR; 2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-80J40-N49 BUMPER,FR(BLACK/PRIMARY)ブラツク/プライマリ-; 5DR:FR; 2009-01-01~ |
71711-80J40-N49 |
US $707.52 |
||
|
1
|
1
71711-80J40-799 BUMPER,FR(PRIMARY)プライマリ-; 5DR:FR; 2009-01-01~ |
71711-80J40-799 |
from US $485.98 |
||
|
2
|
2
71741-54L00-5PK RADIATOR GRILLE (BLACK)5DR:FR; 2009-01-01~ |
71741-54L00-5PK |
from US $139.97 |
||
|
3
|
3
03541-0412A-000 SCREWScrew, speedometer 5DR:FR; 2009-01-01~ |
03541-0412A-000 |
from US $0.96 |
||
|
4
|
4
71731-80J00-000 HOLDER,FR BPR SIDE,R5DR:FR; 2009-01-01~ |
71731-80J00-000 |
from US $23.81 |
||
|
5
|
5
71732-80J00-000 HOLDER,FR BPR SIDE,L5DR:FR; 2009-01-01~ |
71732-80J00-000 |
from US $15.77 |
||
|
6
|
6
03541-0512A-000 SCREW5DR:FR; 2009-01-01~ |
03541-0512A-000 |
from US $0.65 |
||
|
7
|
7
02162-0616A-000 SCREW5DR:FR; 2009-01-01~ |
02162-0616A-000 |
from US $1.24 |
||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 5DR:FR; 2009-01-01~ |
02162-0616B-000 |
from US $0.96 |
||
|
8
|
8
02162-0616A-000 SCREW5DR:FR; 2009-01-01~ |
02162-0616A-000 |
from US $1.24 |
||
| replacement | |||||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust 5DR:FR; 2009-01-01~ |
02162-0616B-000 |
from US $0.96 |
||
|
9
|
9
09136-05068-000 SCREW(5X20)5DR:FR; 2009-01-01~ |
09136-05068-000 |
from US $0.96 |
||
|
10
|
10
09136-05068-000 SCREW(5X20)5DR:FR; 2009-01-01~ |
09136-05068-000 |
from US $0.96 |
||
|
11
|
11
71760-80J00-5PK EXTENSION,FR BUMPER CTR5DR:FR; 2009-01-01~ |
71760-80J00-5PK |
from US $193.55 |
||
|
12
|
12
71762-80J00-5PK PROTECTOR,BUMPER EXT5DR:FR; 2009-01-01~ |
71762-80J00-5PK |
from US $28.58 |
||
|
13
|
13
09148-05047-000 NUT5DR:FR; 2009-01-01~ |
09148-05047-000 |
from US $1.12 |
||
|
14
|
14
77225-78F00-000 BOLT,BUMPER EXT5DR:FR; 2009-01-01~ |
77225-78F00-000 |
from US $1.60 |
||
|
15
|
15
71770-80J00-5PK EXTENSION,BPR SIDE,R5DR:FR; 2009-01-01~ |
71770-80J00-5PK |
from US $41.22 |
||
|
16
|
16
71780-80J00-5PK EXTENSION,BPR SIDE,L5DR:FR; 2009-01-01~ |
71780-80J00-5PK |
from US $37.22 |
||
|
17
|
17
71772-80J00-5PK PROTECTOR,BUMPER EXT5DR:FR; 2009-01-01~ |
71772-80J00-5PK |
from US $11.86 |
||
|
18
|
18
71782-80J00-5PK PROTECTOR,BUMPER EXT5DR:FR; 2009-01-01~ |
71782-80J00-5PK |
from US $16.72 |
||
|
19
|
19
77225-78F00-000 BOLT,BUMPER EXT5DR:FR; 2009-01-01~ |
77225-78F00-000 |
from US $1.60 |
||
|
20
|
20
09409-07332-000 CLIP5DR:FR; 2009-01-01~ |
09409-07332-000 |
from US $1.44 |
||
|
21
|
21
09409-07332-000 CLIP5DR:FR; 2009-01-01~ |
09409-07332-000 |
from US $1.44 |
||
|
22
|
22
03541-0512A-000 SCREW5DR:FR; 2009-01-01~ |
03541-0512A-000 |
from US $0.65 |
||
|
23
|
23
08316-1005A-000 NUT5DR:FR; 2009-01-01~ |
08316-1005A-000 |
from US $0.96 |
||
|
24
|
24
08316-1005A-000 NUT5DR:FR; 2009-01-01~ |
08316-1005A-000 |
from US $0.96 |
||
|
25
|
25
71790-80J00-5PK GARNISH,FR BPR LIC5DR:FR; 2009-01-01~ |
71790-80J00-5PK |
from US $22.82 |
||
|
26
|
26
77225-78F00-000 BOLT,BUMPER EXT5DR:FR; 2009-01-01~ |
77225-78F00-000 |
from US $1.60 |
||
|
27
|
27
09148-06021-000 NUTNut, air cleaner 5DR:FR; 2009-01-01~ |
09148-06021-000 |
from US $1.34 |
||
|
28
|
28
08316-1005A-000 NUT5DR:FR; 2009-01-01~ |
08316-1005A-000 |
from US $0.96 |
||
|
29
|
29
71100-80J01-000 CROSSMEMBER,FR LWR5DR:FR; 2009-01-01~ |
71100-80J01-000 |
from US $273.06 |
||
|
30
|
30
71131-80J00-000 BRACKET,RDTR5DR:FR; 2009-01-01~ |
71131-80J00-000 |
from US $13.10 |
||
|
31
|
31
01550-0816A-000 BoltBolt, rear 5DR:FR; 2009-01-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
32
|
32
09118-10058-000 BOLT(10X50)5DR:FR; 2009-01-01~ |
09118-10058-000 |
US $1.76 |
||
|
33
|
33
01551-1025A-000 Bolt5DR:FR; 2009-01-01~ |
01551-1025A-000 |
US $1.12 |
||
