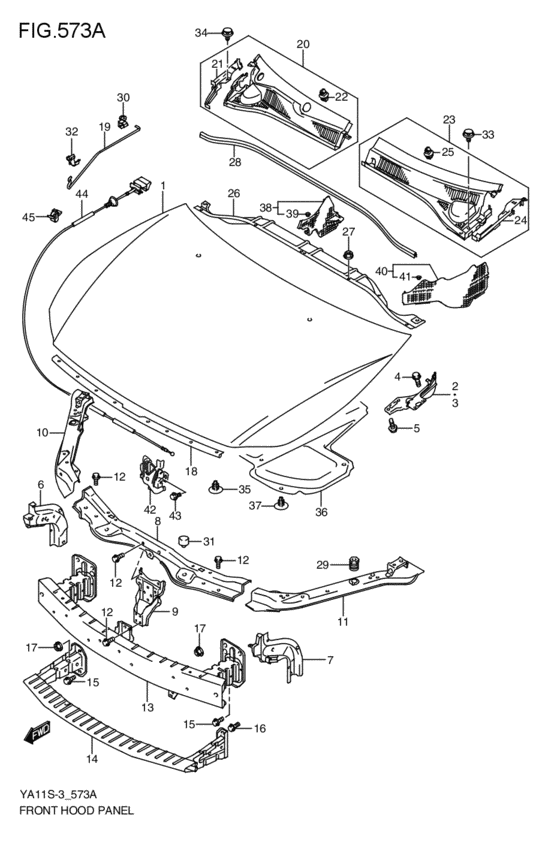

front hood (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57300-80810-000 PANEL SET,FRONT HOOD2009-01-01~ |
57300-80810-000 |
US $432.96 |
||
|
2
|
2
57410-80J00-000 HINGE,FR HOOD,R2009-01-01~ |
57410-80J00-000 |
US $73.60 |
||
|
3
|
3
57420-80J00-000 HINGE,FR HOOD,L2009-01-01~ |
57420-80J00-000 |
US $73.60 |
||
|
4
|
4
01550-0612A-000 BOLT2009-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
5
|
5
01551-0820A-000 BOLT2009-01-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
6
|
6
58110-54L00-000 BRACE,LAMP SUPPORT,R2009-01-01~ |
58110-54L00-000 |
US $41.58 |
||
|
7
|
7
58120-80J00-000 BRACE,LAMP SUPPORT,L2009-01-01~ |
58120-80J00-000 |
from US $30.02 |
||
|
8
|
8
58230-79J00-000 MEMBER,HOOD LOCK2009-01-01~ |
58230-79J00-000 |
US $98.99 |
||
|
9
|
9
58240-80J00-000 BRACE,HOOD LOCK2009-01-01~ |
58240-80J00-000 |
US $64 |
||
|
10
|
10
58250-80J10-000 MEMBER,LAMP SUPPORT,R2009-01-01~ |
58250-80J10-000 |
from US $48.02 |
||
|
11
|
11
58260-80J01-000 MEMBER,LAMP SUPPORT,L2009-01-01~ |
58260-80J01-000 |
US $50.78 |
||
|
12
|
12
01550-0612A-000 BOLT2009-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
13
|
13
58270-80J00-000
Member comp,fr bumper upper
2009-01-01~ |
58270-80J00-000 |
— | ||
| replacement | |||||
|
13
|
13
58270-80J20-000 MEMBER,FR BUMPER UPR2009-01-01~ |
58270-80J20-000 |
from US $231.05 |
||
|
14
|
14
58280-80J01-000 MEMBER,FR BUMPER LWR2009-01-01~ |
58280-80J01-000 |
from US $235.35 |
||
|
15
|
15
01551-0820A-000 BOLT2009-01-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
16
|
16
01551-0816C-000 Bolt2009-01-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
17
|
17
08316-1008A-000 NUTNut, idle gear shaft 2009-01-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
18
|
18
72361-79J00-000 SEAL,HOOD FR2009-01-01~ |
72361-79J00-000 |
US $23.92 |
||
|
19
|
19
72310-80J01-000 STAY,FRONT HOOD2009-01-01~ |
72310-80J01-000 |
from US $24.50 |
||
|
20
|
20
72330-80J01-5PK GARNISH ASSY,COWL TOP,R2009-01-01~ |
72330-80J01-5PK |
US $134.69 |
||
|
21
|
21
72332-80J00-5PK GARNISH,COWL TOP,R2009-01-01~ |
72332-80J00-5PK |
US $55.20 |
||
|
22
|
22
77553-65D00-000 CLIP,SPLASH GUARD2009-01-01~ |
77553-65D00-000 |
US $2.08 |
||
|
23
|
23
72340-80J01-5PK GARNISH ASSY,COWL TOP,L2009-01-01~ |
72340-80J01-5PK |
US $128.06 |
||
|
24
|
24
72342-80J00-5PK GARNISH,COWL TOP,L2009-01-01~ |
72342-80J00-5PK |
US $55.20 |
||
|
25
|
25
77553-65D00-000 CLIP,SPLASH GUARD2009-01-01~ |
77553-65D00-000 |
US $2.08 |
||
|
26
|
26
72380-79J00-000 PANEL,COWL FRONT2009-01-01~ |
72380-79J00-000 |
US $156.40 |
||
|
27
|
27
08316-1006A-000 NUT2009-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
28
|
28
72362-79J00-000
Seal,hood rear
2009-01-01~ |
72362-79J00-000 |
— | ||
| replacement | |||||
|
28
|
28
72362-54L00-000 SEAL,HOOD RR2009-01-01~ |
72362-54L00-000 |
US $23 |
||
|
29
|
29
72372-82000-000 CUSHION,BACK DR SIDECushion 2009-01-01~ |
72372-82000-000 |
from US $2.12 |
||
|
30
|
30
09209-09007-000 LINKAGEConnector 2009-01-01~ |
09209-09007-000 |
from US $1.42 |
||
|
31
|
31
09321-10023-000 CUSHION2009-01-01~ |
09321-10023-000 |
from US $1.82 |
||
|
32
|
32
09403-07311-000 CLAMP2009-01-01~ |
09403-07311-000 |
from US $0.95 |
||
|
33
|
33
09409-08341-000 CLIP2009-01-01~ |
09409-08341-000 |
from US $1.44 |
||
|
34
|
34
09409-08327-000 CLIP2009-01-01~ |
09409-08327-000 |
from US $1.13 |
||
|
35
|
35
09409-05308-5PK CLIP(BLACK)2009-01-01~ |
09409-05308-5PK |
from US $1.60 |
||
|
36
|
36
72440-80J00-000 SILENCER,FRONT HOOD2009-01-01~ |
72440-80J00-000 |
US $233.60 |
||
|
37
|
37
09409-06325-000 CLIP2009-01-01~ |
09409-06325-000 |
from US $1.28 |
||
|
38
|
38
72451-80J00-000 COVER,COWL VENT CTR2009-01-01~ |
72451-80J00-000 |
US $10.30 |
||
|
39
|
39
09169-06060-000 WASHERGasket 2009-01-01~ |
09169-06060-000 |
from US $0.91 |
||
|
40
|
40
72460-80J00-000 COVER,COWL VENT SIDE2009-01-01~ |
72460-80J00-000 |
US $13.28 |
||
|
41
|
41
09169-06060-000 WASHERGasket 2009-01-01~ |
09169-06060-000 |
from US $0.91 |
||
|
42
|
42
82110-79J00-000 LATCH,HOOD2009-01-01~ |
82110-79J00-000 |
US $79.20 |
||
|
43
|
43
02162-0616A-000 SCREW2009-01-01~ |
02162-0616A-000 |
from US $1.04 |
||
| replacement | |||||
|
43
|
43
02162-0616B-000 SCREWBolt, adjust 2009-01-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
44
|
44
82160-79J00-000
CABLE,HOOD LATCH RELEASE
2009-01-01~ |
82160-79J00-000 |
— | ||
| replacement | |||||
|
44
|
44
82160-79J01-000 CABLE,HOOD LATCH RELEASE2009-01-01~ |
82160-79J01-000 |
US $47.20 |
||
|
45
|
45
09403-04401-000 CLAMP2009-01-01~ |
09403-04401-000 |
US $9.90 |
||
