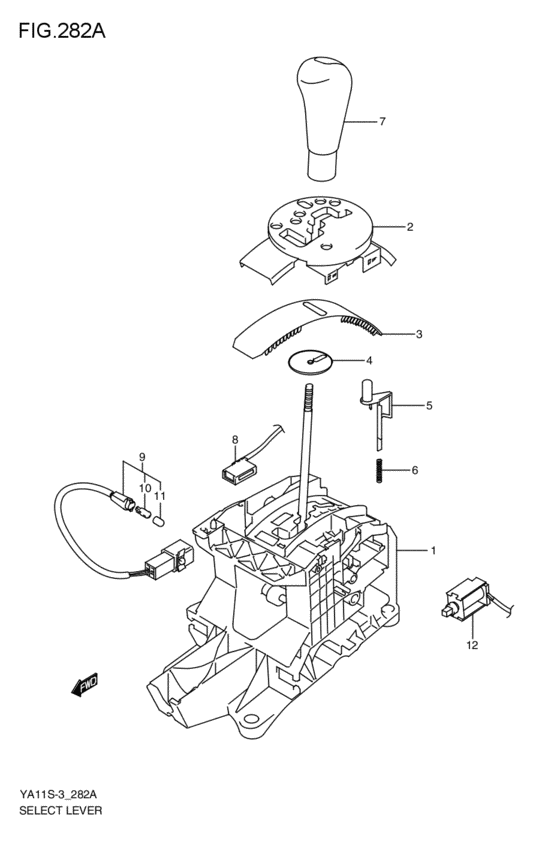

select lever (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-62J10-000 LEVER ASSY,SELECT2009-01-01~ |
28110-62J10-000 |
US $310.40 |
||
|
2
|
2
28151-62J10-000 INDICATOR,SELECT LEVER2009-01-01~ |
28151-62J10-000 |
US $51.20 |
||
|
3
|
3
28154-62J10-000 SLIDER,UPPER2009-01-01~ |
28154-62J10-000 |
US $11.20 |
||
|
4
|
4
28155-62J10-000
SLIDER,LOWER
2009-01-01~ |
28155-62J10-000 |
— | ||
|
5
|
5
28156-62J10-000 BUTTON,SHIFT LOCK2009-01-01~ |
28156-62J10-000 |
US $3.81 |
||
|
6
|
6
28158-62J10-000 SPRING2009-01-01~ |
28158-62J10-000 |
US $1.91 |
||
|
7
|
7
28160-62J11-BWK
KNOB ASSY,SELECT LEVER
2009-01-01~ |
28160-62J11-BWK |
— | ||
| replacement | |||||
|
7
|
7
28160-62J12-BWK KNOB ASSY,SELECT LEVER2009-01-01~ |
28160-62J12-BWK |
US $54.40 |
||
|
8
|
8
28167-62J10-000 SWITCH ASSY,O/D2009-01-01~ |
28167-62J10-000 |
US $29.60 |
||
|
9
|
9
28180-62J30-000 LAMP ASSY,ILLUM2009-01-01~ |
28180-62J30-000 |
US $21.60 |
||
|
10
|
10
28181-62J10-000 BULB2009-01-01~ |
28181-62J10-000 |
US $2.88 |
||
|
11
|
11
28182-62J30-000 FILTER2009-01-01~ |
28182-62J30-000 |
US $2.13 |
||
|
12
|
12
28610-62J10-000 SOLENOID ASSY,SHIFT LOCK2009-01-01~ |
28610-62J10-000 |
US $91.20 |
||
