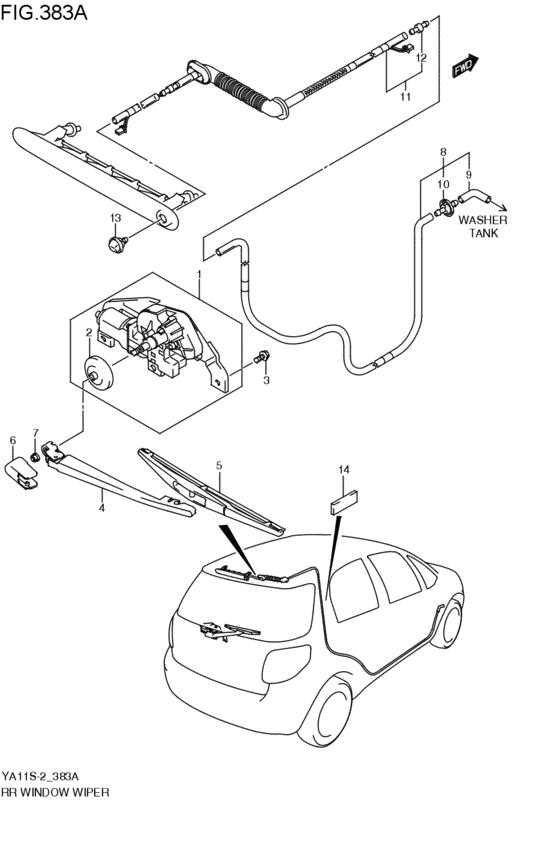

rear wind windshield wiper (5DR; 2007-08-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 2WD
- Number of doors
- 5DR
- grade
- FS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38810-80J00-000
Wiper assy,rear windshield
5DR; 2007-08-01~ |
38810-80J00-000 |
— | ||
| replacement | |||||
|
1
|
1
38810-80J01-000 WIPER ASSY,REAR WINDSHIELD5DR; 2007-08-01~ |
38810-80J01-000 |
US $264.96 |
||
|
2
|
2
38274-54G00-000 CAP,RR WIPER PIVOT5DR; 2007-08-01~ |
38274-54G00-000 |
US $2.69 |
||
|
3
|
3
09115-06005-000 BOLT(6X16)5DR; 2007-08-01~ |
09115-06005-000 |
US $1.28 |
||
|
4
|
4
38821-63J00-000 ARM ASSY,RR WIPER5DR; 2007-08-01~ |
38821-63J00-000 |
from US $38.03 |
||
|
5
|
5
38340-63J00-000 BLADE ASSY,RR WIPER5DR; 2007-08-01~ |
38340-63J00-000 |
from US $11.09 |
||
|
6
|
6
38315-54G00-000 COVER5DR; 2007-08-01~ |
38315-54G00-000 |
from US $2.99 |
||
|
7
|
7
08316-1006A-000 NUT5DR; 2007-08-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
8
|
8
38835-80J00-000 HOSE ASSY,RR WASHER FLOOR5DR; 2007-08-01~ |
38835-80J00-000 |
from US $21.96 |
||
|
9
|
9
38459-50J00-000 HOSE,WASHER L:810L:810>300; 5DR; 2007-08-01~ |
38459-50J00-000 |
US $14.40 |
||
|
10
|
10
38496-54G00-000 JOINT,WASHER HOSE5DR; 2007-08-01~ |
38496-54G00-000 |
US $3.64 |
||
|
11
|
11
38834-80J00-000
HOSE ASSY,RR WASHER BACK DOOR
5DR; 2007-08-01~ |
38834-80J00-000 |
— | ||
| replacement | |||||
|
11
|
11
38834-80J01-000 HOSE ASSY,RR WASHER BACK DOOR5DR; 2007-08-01~ |
38834-80J01-000 |
US $70.40 |
||
|
12
|
12
38496-56B00-000 CONNECTOR5DR; 2007-08-01~ |
38496-56B00-000 |
from US $1.60 |
||
|
13
|
13
38840-63J00-000 NOZZLE ASSY,RR WASHER5DR; 2007-08-01~ |
38840-63J00-000 |
from US $8.60 |
||
|
14
|
14
36930-82010-000 COVER,HARNESSCover, roof wire 5DR; 2007-08-01~ |
36930-82010-000 |
from US $1.73 |
||
