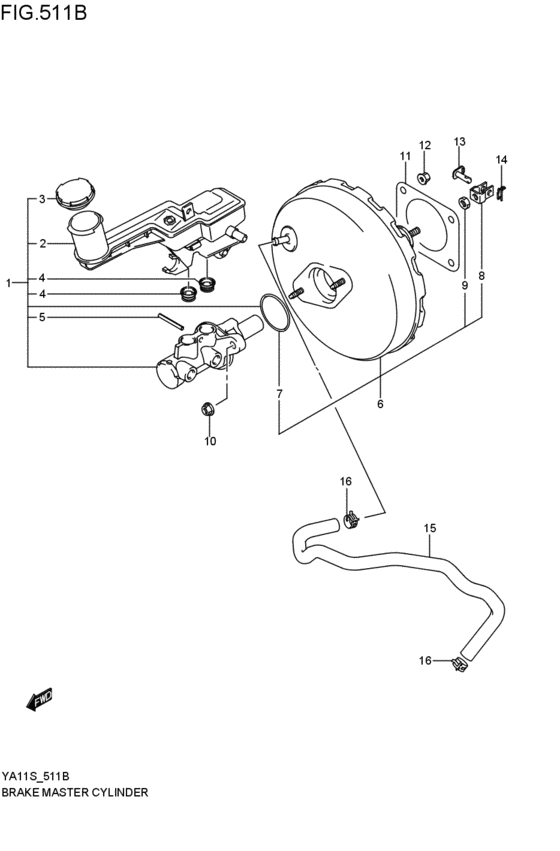

brakes master cylinder (2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-80J60-000 CYLINDER ASSY,BRAKE MASTERJ20A; 2006-05-01~ |
51100-80J60-000 |
US $307.28 |
||
|
2
|
2
51200-80J10-000
リザーバアッシ,マスタシリンダ
2006-05-01~ |
51200-80J10-000 |
— | ||
| replacement | |||||
|
2
|
2
51200-80J11-000 RESERVOIR ASSY,BRAKE MASTER2006-05-01~ |
51200-80J11-000 |
US $113.71 |
||
|
3
|
3
51220-75F51-000
Cap,reservoir
2006-05-01~ |
51220-75F51-000 |
— | ||
| replacement | |||||
|
3
|
3
51220-77M00-000 CAP,RESERVOIR2006-05-01~ |
51220-77M00-000 |
from US $17.89 |
||
|
4
|
4
51232-65J00-000 GROMMET,RSVR CONNECTOR2006-05-01~ |
51232-65J00-000 |
US $3.04 |
||
|
5
|
5
51233-65J00-000 PIN2006-05-01~ |
51233-65J00-000 |
US $1.98 |
||
|
6
|
6
51300-80J00-000 BOOSTER ASSY,BRAKE MASTER2006-05-01~ |
51300-80J00-000 |
US $450.56 |
||
|
7
|
7
51311-65J00-000 O-RING2006-05-01~ |
51311-65J00-000 |
US $11.56 |
||
|
8
|
8
51182-60D10-000 CLEVIS,CYLINDER PUSH ROD2006-05-01~ |
51182-60D10-000 |
US $14.32 |
||
|
9
|
9
08316-1010B-000 NUT2006-05-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
10
|
10
51313-65J00-000 NUT2006-05-01~ |
51313-65J00-000 |
US $3.35 |
||
|
11
|
11
51132-82003-000 PACKING,BRAKE MASTER CYLINDER2006-05-01~ |
51132-82003-000 |
US $1.60 |
||
|
12
|
12
09159-08127-000 NUT2006-05-01~ |
09159-08127-000 |
US $9.90 |
||
|
13
|
13
09200-08048-000 PIN(8X20)2006-05-01~ |
09200-08048-000 |
from US $1.06 |
||
|
14
|
14
09385-08007-000 PIN,SNAPClip 2006-05-01~ |
09385-08007-000 |
from US $1.09 |
||
|
15
|
15
51010-80J60-000
HOSE,BRAKE VACUUM INTAKE
J20A; 2006-05-01~ |
51010-80J60-000 |
— | ||
|
16
|
16
09401-15404-000 CLIP2006-05-01~ |
09401-15404-000 |
from US $1.06 |
||
