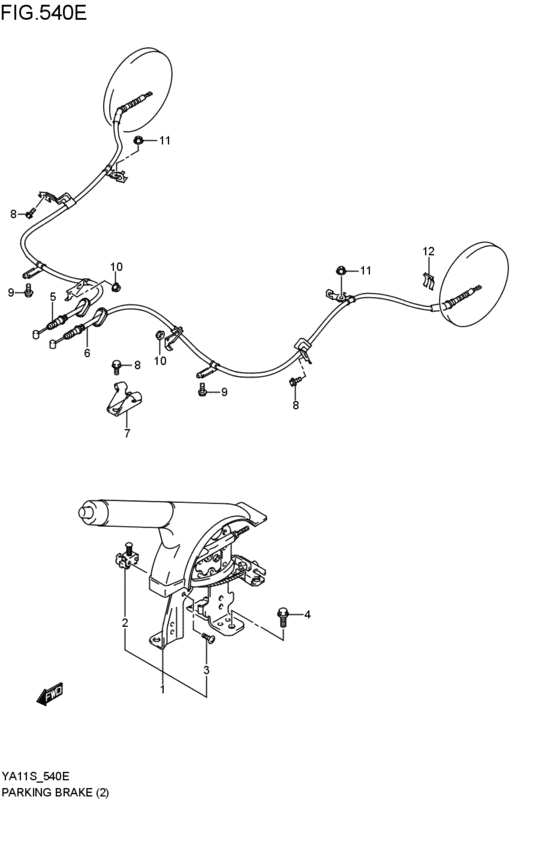

parking brakes (J20A; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-63J00-P4Z
LEVER ASSY,PARKING BK
グレ-; J20A; 2006-05-01~ |
54100-63J00-P4Z |
— | ||
| replacement | |||||
|
1
|
1
54100-63J01-P4Z LEVER ASSY,PARK BK(GRAY)グレ-; J20A; 2006-05-01~ |
54100-63J01-P4Z |
US $105.62 |
||
|
2
|
2
37940-59J00-000 SWITCH ASSY,PARKING BRAKEJ20A; 2006-05-01~ |
37940-59J00-000 |
US $7.73 |
||
|
3
|
3
54115-76G00-000 SCREWJ20A; 2006-05-01~ |
54115-76G00-000 |
US $2.17 |
||
|
4
|
4
01551-0816C-000 BoltJ20A; 2006-05-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
5
|
5
54401-80J10-000 CABLE,PARKING BRAKE,RJ20A; 2006-05-01~ |
54401-80J10-000 |
US $91.63 |
||
|
6
|
6
54402-80J10-000 CABLE,PARKING BRAKE,LJ20A; 2006-05-01~ |
54402-80J10-000 |
from US $80.33 |
||
|
7
|
7
54495-76F00-000 BRACKET,PARKING CABLEJ20A; 2006-05-01~ |
54495-76F00-000 |
US $6.48 |
||
|
8
|
8
01551-0816C-000 BoltJ20A; 2006-05-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
9
|
9
02162-0616B-000 SCREWBolt, adjust J20A; 2006-05-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
10
|
10
08316-1006A-000 NUTJ20A; 2006-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
11
|
11
08316-1008A-000 NUTNut, idle gear shaft J20A; 2006-05-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
12
|
12
09383-13003-000 E-RINGJ20A; 2006-05-01~ |
09383-13003-000 |
from US $1.60 |
||
