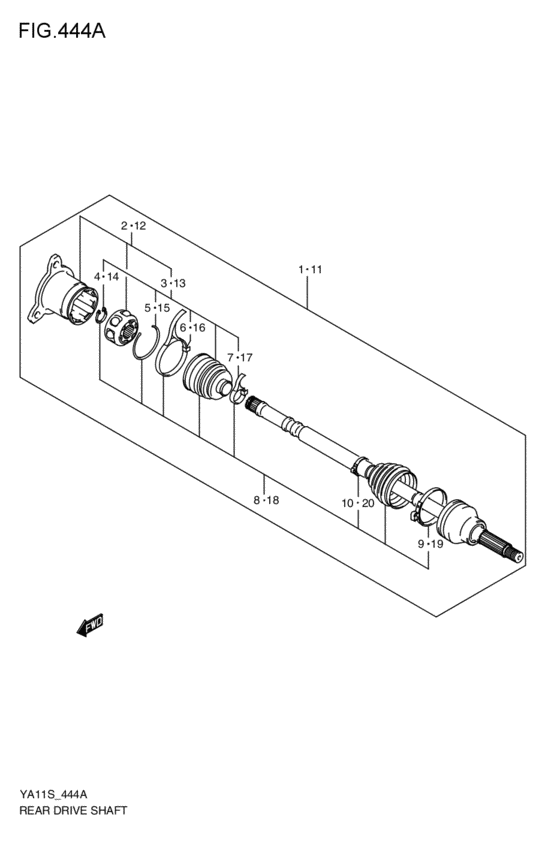

rear drive shaft (4WD; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44105-80J00-000
Shaft assy,rear drive,r
ライト; 4WD; 2006-05-01~ |
44105-80J00-000 |
— | ||
| replacement | |||||
|
1
|
1
44105-80J01-000
SHAFT ASSY,REAR DRIVE,R
ライト; 4WD; 2006-05-01~ |
44105-80J01-000 |
— | ||
|
2
|
2
44117-80JA0-000
JOINT ASSY,DIFF SIDE
4WD; 2006-05-01~ |
44117-80JA0-000 |
— | ||
| replacement | |||||
|
2
|
2
44117-80JA1-000 JOINT ASSY,DIFF SIDE4WD; 2006-05-01~ |
44117-80JA1-000 |
US $401.28 |
||
|
3
|
3
44119-80JA0-000
BOOT SET,DIFF SIDE
4WD; 2006-05-01~ |
44119-80JA0-000 |
— | ||
| replacement | |||||
|
3
|
3
44119-80JA1-000 BOOT SET,DIFF SIDE4WD; 2006-05-01~ |
44119-80JA1-000 |
US $319.17 |
||
|
4
|
4
44111-71C20-000 RING,SNAP4WD; 2006-05-01~ |
44111-71C20-000 |
US $1.44 |
||
|
5
|
5
44112-68H00-000 CIRCLIP4WD; 2006-05-01~ |
44112-68H00-000 |
US $3.97 |
||
|
6
|
6
44121-54A10-000 BAND,BOOT4WD; 2006-05-01~ |
44121-54A10-000 |
US $7.99 |
||
|
7
|
7
44124-86011-000 BAND,BOOT4WD; 2006-05-01~ |
44124-86011-000 |
US $6.81 |
||
|
8
|
8
44118-80JA0-000
BOOT SET,WHEEL SIDE
4WD; 2006-05-01~ |
44118-80JA0-000 |
— | ||
| replacement | |||||
|
8
|
8
44118-80JA1-000 BOOT SET,WHEEL SIDE4WD; 2006-05-01~ |
44118-80JA1-000 |
US $155.20 |
||
|
9
|
9
44121-58J30-000 BAND,BOOT4WD; 2006-05-01~ |
44121-58J30-000 |
US $10.56 |
||
|
10
|
10
44124-79JA0-000 BAND,BOOT SMALL4WD; 2006-05-01~ |
44124-79JA0-000 |
US $7.91 |
||
|
11
|
11
44106-80J00-000
Shaft assy,rear drive,l
レフト; 4WD; 2006-05-01~ |
44106-80J00-000 |
— | ||
| replacement | |||||
|
11
|
11
44106-80J01-000
SHAFT ASSY,REAR DRIVE,L
レフト; 4WD; 2006-05-01~ |
44106-80J01-000 |
— | ||
|
12
|
12
44117-80JA0-000
JOINT ASSY,DIFF SIDE
4WD; 2006-05-01~ |
44117-80JA0-000 |
— | ||
| replacement | |||||
|
12
|
12
44117-80JA1-000 JOINT ASSY,DIFF SIDE4WD; 2006-05-01~ |
44117-80JA1-000 |
US $401.28 |
||
|
13
|
13
44119-80JA0-000
BOOT SET,DIFF SIDE
4WD; 2006-05-01~ |
44119-80JA0-000 |
— | ||
| replacement | |||||
|
13
|
13
44119-80JA1-000 BOOT SET,DIFF SIDE4WD; 2006-05-01~ |
44119-80JA1-000 |
US $319.17 |
||
|
14
|
14
44111-71C20-000 RING,SNAP4WD; 2006-05-01~ |
44111-71C20-000 |
US $1.44 |
||
|
15
|
15
44112-68H00-000 CIRCLIP4WD; 2006-05-01~ |
44112-68H00-000 |
US $3.97 |
||
|
16
|
16
44121-54A10-000 BAND,BOOT4WD; 2006-05-01~ |
44121-54A10-000 |
US $7.99 |
||
|
17
|
17
44124-86011-000 BAND,BOOT4WD; 2006-05-01~ |
44124-86011-000 |
US $6.81 |
||
|
18
|
18
44118-80JA0-000
BOOT SET,WHEEL SIDE
4WD; 2006-05-01~ |
44118-80JA0-000 |
— | ||
| replacement | |||||
|
18
|
18
44118-80JA1-000 BOOT SET,WHEEL SIDE4WD; 2006-05-01~ |
44118-80JA1-000 |
US $155.20 |
||
|
19
|
19
44121-58J30-000 BAND,BOOT4WD; 2006-05-01~ |
44121-58J30-000 |
US $10.56 |
||
|
20
|
20
44124-79JA0-000 BAND,BOOT SMALL4WD; 2006-05-01~ |
44124-79JA0-000 |
US $7.91 |
||
