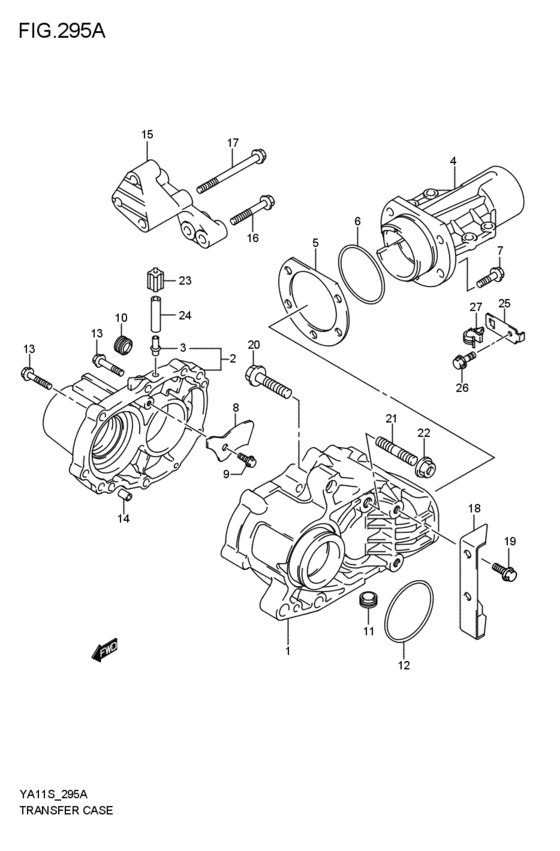

transfer case (4WD; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29510-80J01-000 CASE ASSY,T/F LEFT4WD:M15A; 2006-05-01~ |
29510-80J01-000 |
US $283.36 |
||
|
2
|
2
29520-80J00-000 CASE,T/F,R4WD; 2006-05-01~ |
29520-80J00-000 |
US $209.76 |
||
|
3
|
3
09364-08004-000 UNION4WD; 2006-05-01~ |
09364-08004-000 |
US $14.40 |
||
|
4
|
4
29271-80J00-000 RETAINER,T/F OUTPUT4WD:M15A; 2006-05-01~ |
29271-80J00-000 |
US $141.68 |
||
|
5
|
5
29261-80J00-030 SHIM,T/F RETAINER T:0.304WD; 2006-05-01~ |
29261-80J00-030 |
US $11.33 |
||
|
5
|
5
29261-80J00-185 SHIM,T/F RETAINER T:1.854WD; 2006-05-01~ |
29261-80J00-185 |
US $13.69 |
||
|
5
|
5
29261-80J00-188 SHIM,T/F RETAINER T:1.884WD; 2006-05-01~ |
29261-80J00-188 |
US $13.69 |
||
|
5
|
5
29261-80J00-191 SHIM,T/F RETAINER T:1.914WD; 2006-05-01~ |
29261-80J00-191 |
US $13.69 |
||
|
5
|
5
29261-80J00-194 SHIM,T/F RETAINER T:1.944WD; 2006-05-01~ |
29261-80J00-194 |
US $13.69 |
||
|
5
|
5
29261-80J00-197 SHIM,T/F RETAINER T:1.974WD; 2006-05-01~ |
29261-80J00-197 |
US $16.45 |
||
|
5
|
5
29261-80J00-200 SHIM,T/F RETAINER T:2.004WD; 2006-05-01~ |
29261-80J00-200 |
US $13.69 |
||
|
5
|
5
29261-80J00-203 SHIM,T/F RETAINER T:2.034WD; 2006-05-01~ |
29261-80J00-203 |
US $16.45 |
||
|
5
|
5
29261-80J00-206 SHIM,T/F RETAINER T:2.064WD; 2006-05-01~ |
29261-80J00-206 |
US $13.69 |
||
|
5
|
5
29261-80J00-209 SHIM,T/F RETAINER T:2.094WD; 2006-05-01~ |
29261-80J00-209 |
US $13.69 |
||
|
5
|
5
29261-80J00-212 SHIM,T/F RETAINER T:2.124WD; 2006-05-01~ |
29261-80J00-212 |
US $13.69 |
||
|
5
|
5
29261-80J00-215 SHIM,T/F RETAINER T:2.154WD; 2006-05-01~ |
29261-80J00-215 |
US $13.69 |
||
|
6
|
6
09280-76008-000 O RING(D:3.1,ID:74)O ring, rr final housing 4WD; 2006-05-01~ |
09280-76008-000 |
from US $10.05 |
||
|
7
|
7
01550-1030A-000 BOLT4WD; 2006-05-01~ |
01550-1030A-000 |
from US $1.12 |
||
|
8
|
8
29522-80J00-000 PLATE,T/F RIGHT CASE OIL4WD; 2006-05-01~ |
29522-80J00-000 |
US $2.13 |
||
|
9
|
9
09103-06285-000 BOLT(6X12)Bolt (6x12) 4WD; 2006-05-01~ |
09103-06285-000 |
from US $1.28 |
||
|
10
|
10
09246-16010-000
PLUG
4WD; 2006-05-01~ |
09246-16010-000 |
— | ||
| replacement | |||||
|
10
|
10
09246-16021-000 Plug,t/m Oil Drain4WD; 2006-05-01~ |
09246-16021-000 |
US $4.86 |
||
|
11
|
11
09246-16010-000
PLUG
4WD; 2006-05-01~ |
09246-16010-000 |
— | ||
| replacement | |||||
|
11
|
11
09246-16021-000 Plug,t/m Oil Drain4WD; 2006-05-01~ |
09246-16021-000 |
US $4.86 |
||
|
12
|
12
09280-71007-000 O RING(D:2,ID:71)4WD:M15A; 2006-05-01~ |
09280-71007-000 |
US $44.20 |
||
|
13
|
13
01550-0840A-000 BOLT4WD; 2006-05-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
14
|
14
04211-09169-000 PIN4WD; 2006-05-01~ |
04211-09169-000 |
from US $0.91 |
||
|
15
|
15
24792-80J10-000 STIFFENER,ENG&T/F4WD:M15A; 2006-05-01~ |
24792-80J10-000 |
US $70.66 |
||
|
16
|
16
01550-1045A-000 Bolt4WD; 2006-05-01~ |
01550-1045A-000 |
US $19.50 |
||
|
17
|
17
01550-1090A-000 Bolt4WD; 2006-05-01~ |
01550-1090A-000 |
US $24.70 |
||
|
18
|
18
29531-80J10-000 STIFFENER,T/M&T/F4WD:M15A; 2006-05-01~ |
29531-80J10-000 |
US $9.90 |
||
|
19
|
19
01550-1020A-000 BOLTBolt, bal sprocket 4WD:M15A; 2006-05-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
20
|
20
09103-12012-000
Bolt 12x60
4WD:M15A; 2006-05-01~ |
09103-12012-000 |
— | ||
|
23
|
23
27991-65D01-000 PLUG,BREATHER4WD; 2006-05-01~ |
27991-65D01-000 |
US $1.92 |
||
|
24
|
24
09352-70113-600
HOSE(7X11X600)
L:600>220; 4WD; 2006-05-01~ |
09352-70113-600 |
— | ||
| replacement | |||||
|
24
|
24
09352-70119-600 Hose(7X11X600)L:600>220; 4WD; 2006-05-01~ |
09352-70119-600 |
from US $4.64 |
||
|
25
|
25
29726-63J00-000
BRACKET,T/F BREATHER HOSE
4WD; 2006-05-01~ |
29726-63J00-000 |
— | ||
|
26
|
26
01550-0816A-000 BOLTBolt, rear 4WD; 2006-05-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
27
|
27
09403-11314-000 CLAMP4WD; 2006-05-01~ |
09403-11314-000 |
from US $5.20 |
||
