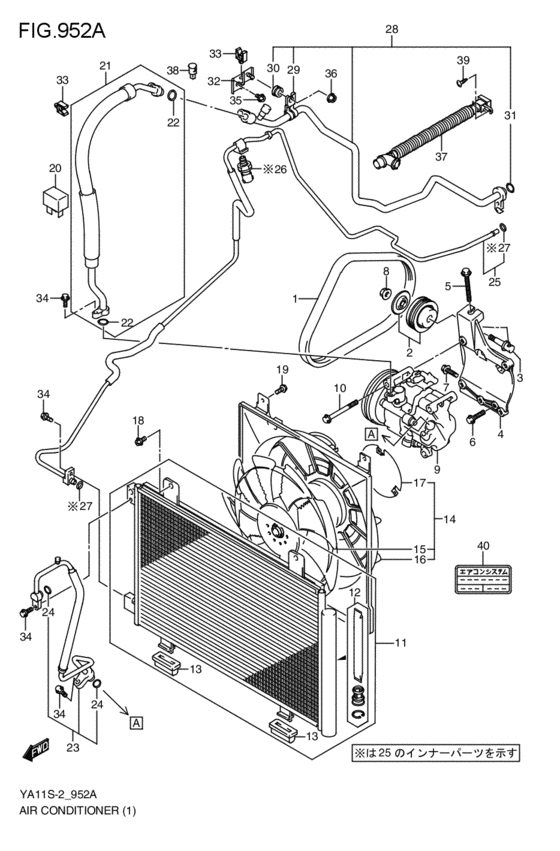

air-conditioner (BF,BG,FF,FQ,FG,FR; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17521-86500-000 V-BELT (4PK815)BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
17521-86500-000 |
from US $18.05 |
||
|
2
|
2
49160-70AA0-000 PULLEY ASSY,BELT TENSIONBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
49160-70AA0-000 |
from US $75.71 |
||
|
3
|
3
49161-60B10-000 BOLT,BELT TENSION PULLEYBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
49161-60B10-000 |
from US $7.84 |
||
|
4
|
4
95111-63J00-000 BRACKET,CPRSRBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95111-63J00-000 |
US $68.80 |
||
|
5
|
5
95126-58J00-000 BOLTBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95126-58J00-000 |
US $1.60 |
||
|
6
|
6
01550-0830A-000 BOLTBolt, mount oil seal cover BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
7
|
7
01550-0855A-000 BOLTBolt, gear holder BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
01550-0855A-000 |
from US $1.22 |
||
|
8
|
8
08316-1010A-000 NUTNut, kick starter BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
9
|
9
95200-63JA1-000 COMPRESSOR ASSYBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95200-63JA1-000 |
from US $1,209.60 |
||
|
10
|
10
01550-0875A-000 BOLTBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
01550-0875A-000 |
from US $1.60 |
||
|
11
|
11
95310-80J00-000
コンデンサアッシ
BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95310-80J00-000 |
— | ||
| replacement | |||||
|
11
|
11
95310-80J01-000 CONDENSER ASSYBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95310-80J01-000 |
from US $392.92 |
||
|
12
|
12
95339-58J10-000 DRYER KITBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95339-58J10-000 |
from US $48.35 |
||
|
13
|
13
95851-75F00-000 BUSH,CONDBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95851-75F00-000 |
US $1.67 |
||
|
14
|
14
95360-79J02-000
Fan assy,cond
BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95360-79J02-000 |
— | ||
| replacement | |||||
|
14
|
14
95360-79J20-000 FAN ASSY, CONDENSERBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95360-79J20-000 |
from US $375.55 |
||
|
15
|
15
95362-79J02-000
Fan,cond
BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95362-79J02-000 |
— | ||
| replacement | |||||
|
15
|
15
95362-79J20-000 FAN,CONDBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95362-79J20-000 |
US $44.08 |
||
|
16
|
16
95363-79J01-000 SHROUD,CONDENSERBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95363-79J01-000 |
US $84.27 |
||
|
17
|
17
95364-79J01-000 GUARD,FAN MOTORBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95364-79J01-000 |
US $20.06 |
||
|
18
|
18
01550-0620A-000 BOLTBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
19
|
19
02162-0616B-000 SCREWBolt, adjust BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
20
|
20
38860-76F01-000 RELAY ASSYRelay, starting motor BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
21
|
21
95710-80J00-000 HOSE,SUCTIONBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95710-80J00-000 |
from US $80.22 |
||
|
22
|
22
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95896-50G00-000 |
US $1.28 |
||
|
23
|
23
95720-80J00-000 HOSE,DISCHARGEBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95720-80J00-000 |
from US $125.40 |
||
|
24
|
24
95895-50G00-000 O-RING,D:2.4 ID:10.8BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95895-50G00-000 |
US $1.28 |
||
|
25
|
25
95731-80J00-000 PIPE,LIQUIDBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95731-80J00-000 |
US $151.98 |
||
|
26
|
26
95546-58J00-000 SENSOR,PRESSUREDENSO; BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95546-58J00-000 |
US $52.80 |
||
|
27
|
27
95891-50G00-000 O-RING,D:1.8 ID:6.7BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95891-50G00-000 |
from US $0.96 |
||
|
28
|
28
95741-80J00-000 PIPE,SUCTIONBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95741-80J00-000 |
US $115.92 |
||
|
29
|
29
95771-80J00-000
CLAMP
BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95771-80J00-000 |
— | ||
|
30
|
30
95851-77A10-000 BUSHBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95851-77A10-000 |
US $4.49 |
||
|
31
|
31
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95896-50G00-000 |
US $1.28 |
||
|
32
|
32
95781-80J00-000 STAY,SUCT HOSEBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95781-80J00-000 |
US $5.23 |
||
|
33
|
33
09403-08331-000 CLAMPBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
09403-08331-000 |
US $1.60 |
||
|
34
|
34
01550-0620A-000 BOLTBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
35
|
35
02162-0612A-000 SCREWBolt, bracket BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
36
|
36
08361-2506A-000 NUTBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
08361-2506A-000 |
US $0.80 |
||
|
37
|
37
95640-80J01-000 SENSOR ASSY,ROOM TEMPBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95640-80J01-000 |
US $42.56 |
||
|
38
|
38
95642-54J01-000 SENSOR,SUN LIGHTBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95642-54J01-000 |
from US $32 |
||
|
39
|
39
03541-0516A-000 SCREWBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
40
|
40
95956-84G60-000
ラベル,レフリジェラント
BF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95956-84G60-000 |
— | ||
| replacement | |||||
|
40
|
40
95956-84G61-000 LABEL,REFRIGERANTBF,BG,FF,FQ,FG,FR; 2008-07-01~ |
95956-84G61-000 |
US $3.09 |
||
